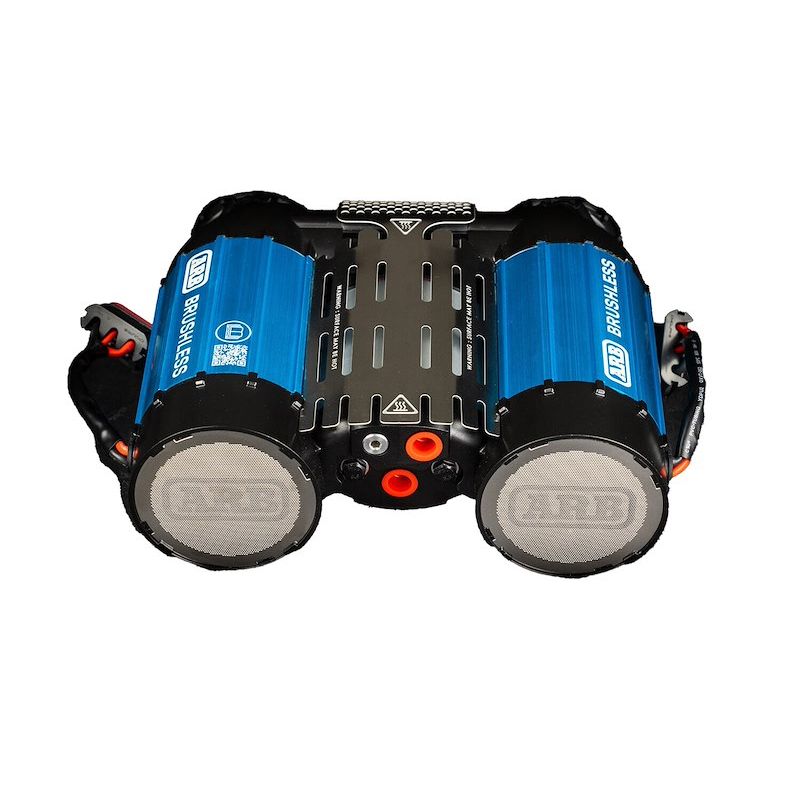

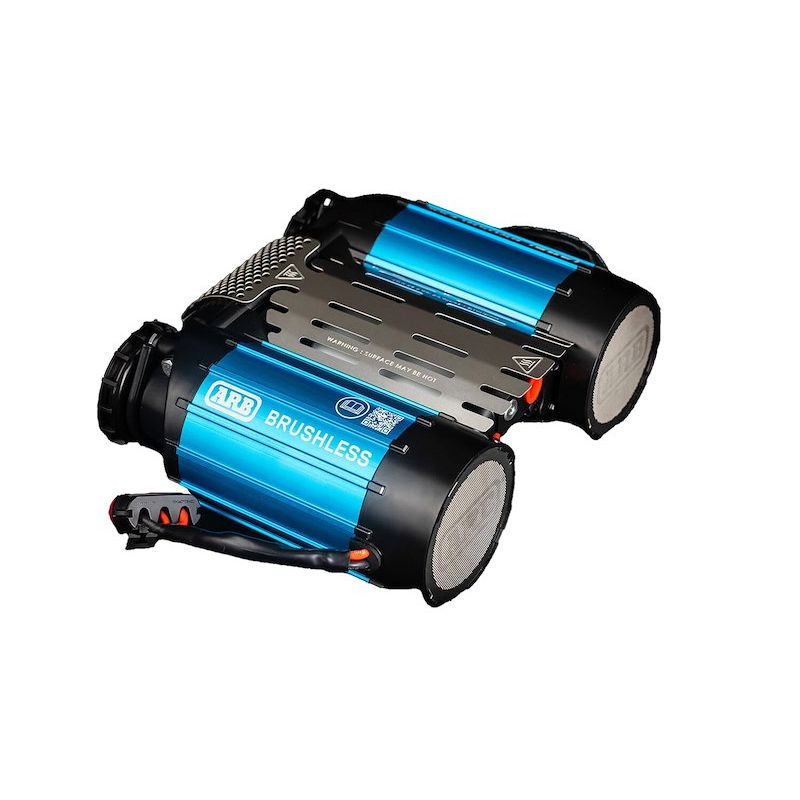

ARB | Brushless Twin Motor Onboard 12V Air Compressor | CKBLTA12

expanded its line of premium air compressors with the new Brushless series. Long known as a leader in onboard and portable air compressors, the new ARB Brushless lineup offers the ultimate air compressors, featuring brushless electric motors, built in fans for active cooling, cutting-edge smart technology, and an impressive 50% increase in air output compared to ARB’s current market-leading compressors. ARB Brushless Air Compressors are compatible with ARB’s existing range of air accessories and hose kits, and ARB Air Lockers, making upgrading your current air system super easy! ARB Brushless Air Compressors allow you to spend less time inflating, and more time having fun: Quick Air, More Adventures.

50% Increase in output – ARB Brushless boasts an additional 50% in output when compared to our current market leading ARB brushed compressor, meaning less time inflating and more time adventuring
Active Cooling – An active cooling system has been included with a fan in each motor/compressor assembly to achieve higher performance and longevity

Electronic Speed Control - Maintains optimum performance and operations across all pressure and ambient temperature conditions
Status Reporting – Live diagnostics via audio and visual alerts

Type: On-Board
Maximum Pressure Rating (PSI): 150 Pounds Per Square Inch
Air Flow Rating: 9.18 Cubic Feet Per Minute (CFM)/ 6.2 Cubic Feet Per Minute (CFM)
Power Source: 12 Volt
Amperage: 90 Amp

Product Description
Providing optimum power, the ARB twin motor design delivers class-leading air flow for fast inflation purposes. Constructed of lightweight, high-strength engineering grade materials, it incorporates quality components for quiet operation and extended durability. The twin motors incorporate internal thermal protection against extreme temperature damage while a heavy duty in-line maxi fuse for each motor provides professional circuit protection.

Features & Benefits
Designed For Inflating Tires And Air Locker Activation When Used In Conjunction With Optional Accessories
100 Percent Duty Cycle
Sealed For Moisture And Dust Resistance
Hard Anodized Cylinder Bores For Reduced Friction
Teflon Impregnated Carbon Fiber Piston Seals For Maximum Trouble Free Life
Integrated Pressure Switch, Relays And IP55 (Waterproof/Dustproof) Brushless Fan Cools Electronics, Motors And Cylinder Heads
Over-Pressure Safety Valve Equipped
Anodized Mounting Bracket Dissipates Heat

Limited 3 Year Warranty
Voltage and Overload Protection – Protects the compressor and power supply from damage due to voltage spikes, drops, fluctuations, overcurrent, and motor stalls
Continuity in Function – The ARB Brushless is constantly monitoring itself and can make adjustments to account for factors such as temperature and variations in vehicle charging systems

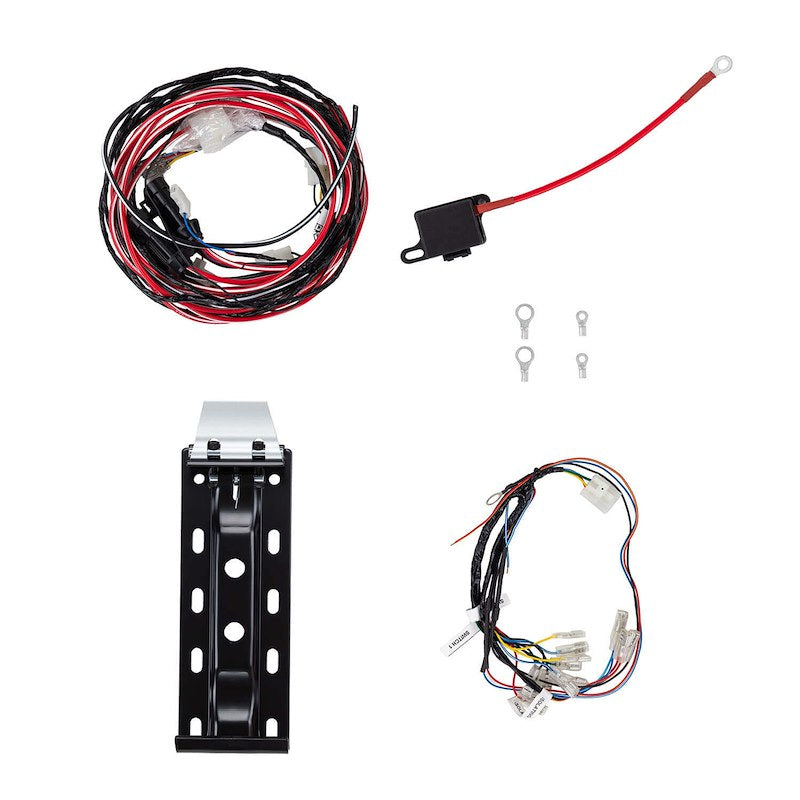

Quick-release Mounts – Onboard units can be removed using cam-lock quick-release mounts, making installation and removing simple process

Relays Eliminated – The inclusion of the brushless motor also means there is not any need for the mounting of relays, further reducing the install time
Smart Start - Staggered “Power-On” for twin variants to reduce the power spike at start up allowing brushless twins to start up on vehicles with smaller charging system
