BAJA DESIGNS Ford, F150, (21-On), FPK, SAE Clear/Sport DC, Up w/o DRL I 447697UP

F-150 Fog Pocket Kit SAE Clear/Sport DC 21-On Ford F-150 Baja Designs I This kit is perfect if you are looking to spice up your Ford F-150 ('21-22) with a premium Lighting kit. This kit specifically utilizes a set of Squadron SAE and a set of Squadron Sport in driving combo lens pattern. This kit also includes powder-coated fog pocket brackets, stainless-steel hardware as well as our custom harness.
One pair of Squadrons will be operable off your OEM fog Light switch, and both pairs of Squadrons can be turned on with our provided toggle switch harness. The next generation Squadron SAE is the perfect road-legal auxiliary fog Light on the market today.
Engineered with all-new aspheric projector optics and with our advanced LED technology provides a performance increase in luminous flux of 56 Percent over our previous generation SAE model.
Keeping you safe on the road or trails, the Squadron SAE will illuminate Zone 1 with a controlled, sharp cutoff from the combination of the new LED technology and highly efficient aspheric projector optics.
Designed to meet the current SAE J583 fog lamp requirements, the Squadron SAE is fully compliant with on-road regulations. This innovative approach allows for a highly controlled Light pattern with a sharp cutoff, making them an ideal choice for driving through dust, fog, and inclement weather. Backed by our mited fetime warranty and 30-day satisfaction guarantee, giving you the ultimate in-purchase protection.
Note: This kit comes with everything you need to install and is designed to be used on the F-150 without Daytime Running LiLights (DRL). USPTO Reg No. 5,766,659 o:p o:p
strong Specifications (Per SAE): strong

Dimensions:3.07 Inch x 2.77 Inch x 3.07 Inch
WeiLight:12 ounces
LED fe Expectancy:49,930 Hours
Front Lens:Hard Coated Polycarbonate
Housing:Powder Coated Cast Aluminum
Bezel:Billet Machined Aluminum
Hardware and Bracket Material:Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

strong Specifications (Squadron Sport): strong

Lumens:3,150 Utilizing 4 LEDs
Wattage/Amps:26W 2A
Dimensions:3.07 Inch x 2.77 Inch x 3.07 Inch
WeiLight:12 ounces
LED fe Expectancy:49,930 Hours
Front Lens:Hard Coated Polycarbonate
Housing:Powder Coated Cast Aluminum
Bezel:Billet Machined Aluminum
Hardware and Bracket Material:Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

strong Baja Designs Features: strong

Satisfactions Guarantee:30 Day Money Back Guarantee
mited fetime Warranty:Complete Purchase Protection
uService:Replaceable Lenses And Optics
ClearView:All The Light, RiLight Where You Need It.
MoistureBlock Waterproof, Rain Proof, Submersible
CopperDrive:Only LED Driven At 100 Percent
5000K DayliLight:Less Driver Fatigue, Natural Color

strong Application: strong

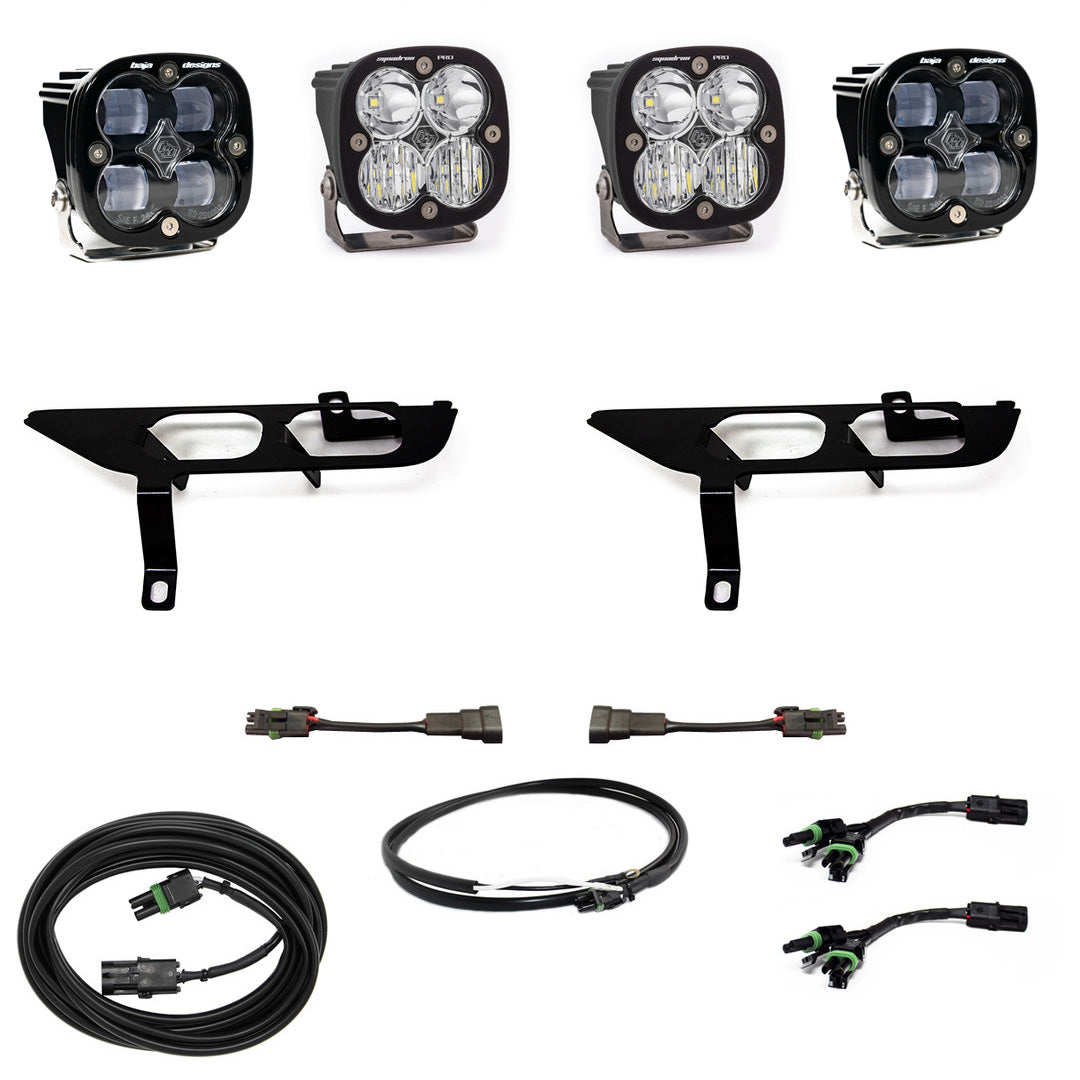

Ford F150 (21 - On) strong Included: strong

Squadron Sport, Driving/Combo Pair
Squadron SAE, Clear Wide Cornering Pair
x2Fog Pocket Brackets
x2 Wire Adapters
x1 Toggle Switch Harness
x2 55 Inch Splitters
x2 small Splitters

strong Patterns: strong
Driving/Combo: Maximum trail coverage in a single Light. The Driving/Combo pattern is equipped with both Driving (42 Degree ) and spot (8 Degree ) optics to provide you with a smooth blend of Light for both near field applications and distance (LiLighting Zone 3)
Wide Cornering:BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 Degree flattened horizontal beam for the ultimate in comfort Lighting. (LiLighting Zones 1 and 2)


FITMENT: 2021,2022,Ford,F-150,King Ranch|2021,2022,Ford,F-150,Lariat|2021,2022,Ford,F-150,Limited|2021,2022,Ford,F-150,Platinum|2021,2022,Ford,F-150,Police Responder|2021,2022,Ford,F-150,Raptor|2021,2022,Ford,F-150,SSV|2021,2021,Ford,F-150,Tremor|2021,2022,Ford,F-150,XL|2021,2022,Ford,F-150,XLT
