BAJA DESIGNS Silverado 2500/3500 (17) Onx6 30 Inch Arc Grille Kit Baja Designs I 447769

Silverado 2500/3500 (17) Onx6 30 Inch Arc Grille Kit Baja Designs I Set your Silverado apart from the rest with Baja Designs LED Grille Kit. Our OnX6 30 inch Arc Bar Grille Kit has been specifically designed for (17) Heavy Duty models giving you a clean OEM look and massive increase in Lighting performance.
strong Baja Designs Features: strong

Satisfactions Guarantee - 30 Day Money Back Guarantee
mited fetime Warranty - Complete Purchase Protection
uService - Replaceable Lenses And Optics
ClearView - All The Light, RiLight Where You Need It.
MoistureBlock - Waterproof, Rain Proof, Submersible
CopperDrive - Only LED Driven At 100 percent
5000K DayliLight - Less Driver Fatigue, Natural Color Specifications:
Lumens: (High) 32,070 (Low) 25,610 Utilizing 18 Cree LEDs
Wattage/Amps: (High) 278W 21.7A (Low) 222W 17.1A
Dimensions: 30 inch x 4.29 inch x 2.69 inch
WeiLight: 11.45 lbs
LED fe Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft and Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

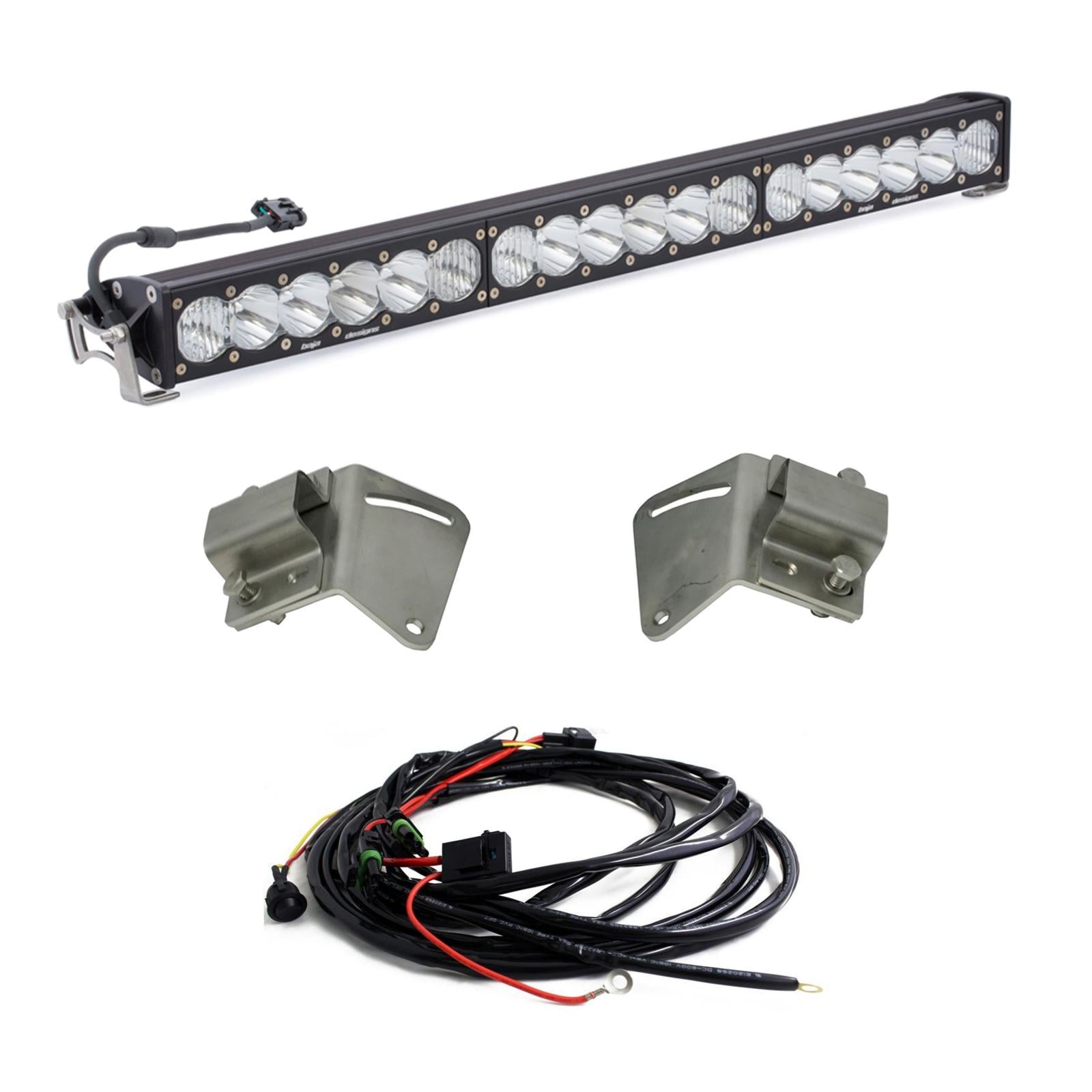

strong Includes: strong

x1 OnX6+, 30 inch Driving/Combo LED Light Bar
Toggle Switch Wiring Harness
Vehicle Specific Mounts
Hardware

strong Patterns: strong
Driving/Combo: Maximum trail coverage in a single Light. The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (9 degree) optics to provide you with a smooth blend of Light for both near field applications and distance (LiLighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort Lighting. (LiLighting Zones 1 and 2)
Spot: A longer and narrower 9 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam LiLights. (LiLighting Zone 4 and 5)


FITMENT: 2017,2017,Chevrolet,Silverado 2500 HD,High Country|2017,2017,Chevrolet,Silverado 3500 HD,High Country|2017,2017,Chevrolet,Silverado 2500 HD,LT|2017,2017,Chevrolet,Silverado 3500 HD,LT|2017,2017,Chevrolet,Silverado 2500 HD,LTZ|2017,2017,Chevrolet,Silverado 3500 HD,LTZ|2017,2017,Chevrolet,Silverado 2500 HD,WT|2017,2017,Chevrolet,Silverado 3500 HD,WT
