BDS 6" Lift Kit for Ram 1500 (19-24) 4WD BDS1661F

BDS 6" Lift Kit for Ram 1500 (19-24) 4WD BDS1661F

BDS1661F

$3,494.99 CAD
$3,494.99 CAD
Sale Sold out
  • Free Shipping in Canada over $350!
  • Local in store pick up available!
  • Visit our show room or call 416-624-1357
  • Have our team of professionals install this!
View full details

Description

BDS steps up the performance and capability of the 2019-2024 RAM 1500 trucks with a 6-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires

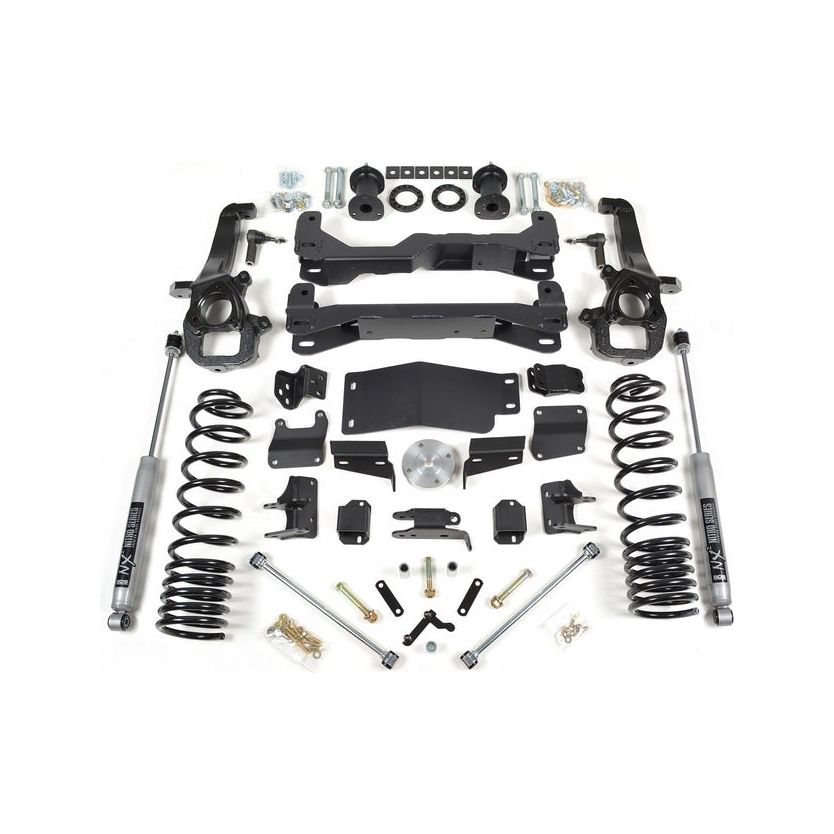

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

Features & Benefits

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 18 x 9 and 5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5 in. Backspace

Notes:

  • Fits 4WD models only
  • RAMs with factory 22" wheels require larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
  • Will NOT fit adjustable "air ride" suspension equipped models.
  • If installing the 6" kit on a Rebel or truck equipped with an "off road group package" the truck will sit roughly 1/2" front high with the preload spacer installed. If the preload spacer isn't installed the truck will sit about 3/8" nose low.
  • Stock 18" wheels cannot be reinstalled due to steering interference. Stock 20s can be reinstalled with factory tire size
  • Will NOT work on diesel models
  • Will NOT fit 2019-2022 RAM 1500 Classic models, Refer to the 2018 kit listings.
  • Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check the diff cover for cooling lines.
  • IF USING 18IN WHEELS WITH MAXIMUM RECOMMENDED BACKSPACING, TEST FIT WHEELS ON VEHICLE BEFORE MOUNTING TIRES TO ENSURE CLEARANCE
    • Front Lift Method : Cross-Member
    • Rear Lift Method : Coil Springs
    • Shocks Included : Yes
    • Front Lift Height : 6"
    • Rear Lift Height : 5"
