BDS Suspension | 1-2 Inch Leveling Kit Performance Spring Ford F250/F350 Super Duty 1 Inch Lift 17-19 2 Inch Lift: 20-23 4WD Diesel & Gas NX2 Nitro Shocks | BDS1910H

Simply level out your Ford F250 and F350 Super Duty truck to the next level with this performance spring 2-inch leveling kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes dual rate Pro-Ride coil springs, track bar relocation bracket for steering correction, and alignment cams. This kit is rounded out with your choice of NX2 twin tube gas or FOX 2.0 Performance Series monotube Internal Floating Piston shocks to further dial in the comfort and control of your F250/F350.

Pro-Ride Coil Springs

A pair of full-length Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. These dual rate springs utilize a softer intial spring rate over factory for improved on-road comfort, while also using a higher secondary spring rate to provide stability and performance in harsh terrains.

• Front Lift Method: Coil Spring
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 2 Inch
• Rear Lift Height: 0 Inch

1. 2017-2019 models net 1 Inchof lift height; requires an additional 1 Inchcoil spring spacer to sit level.
2. 2020-2024 models net 2 Inch.
3. Kit designed for diesel models; Gas models will achieve approx. 1/2 Inch more ride height

• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty track bar relocation bracket designed to recenter the front axle
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/4.5

• Front Lift Method: Coil Spring
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 2 Inch
• Rear Lift Height: 0 Inch

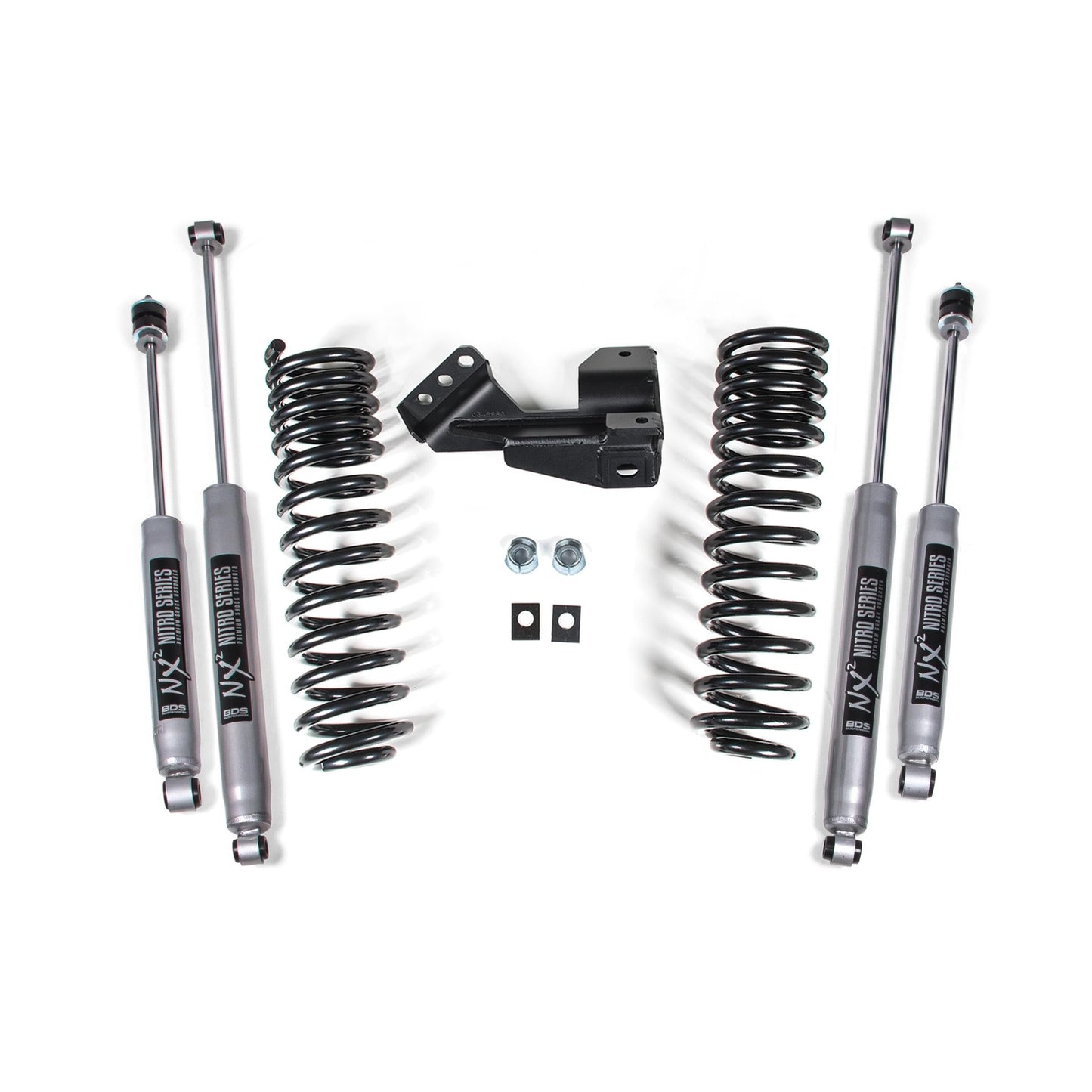

Kit Components:

• Includes one BDS013205, 2017-2019 1 Inch/2020-2023 2 Inch F250/350 Front Box Kit, UPC Code 658848613120
• Includes one BDS033202, 2017-2019 1 Inch/2020-2023 2 Inch F250/F350 Front Coil Spring Kit, UPC Code 658848616473
• Includes two BDS85710, Shock- 22.50 x 13.50 x 2-3/8 - S50/EB2, UPC Code 711745609518
• Includes two BDS85717, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609556
