BDS Suspension | 4 Inch Lift Kit w/ Radius Arm Ford F150/Bronco 80-96 4WD Leaf Springs NX2 Nitro | BDS365H

Raise the bar and take your 1980-1996 Ford Bronco full size 4WD truck to the next level with a 4-inch suspension lift kit with extended radius arms by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

Up front the lift kit includes Pro-Ride coil springs, axle pivot relocation brackets, extended radius arms, radius arm drop mounts, forged pitman arm for steering correction and precision tuned NX2 nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Pro-Ride Coil Springs

A pair of full-length, vehicle-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Extended Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. The extended radius arm system will reduce caster change through wheel travel creating a more capable and controlled feeling in the steering wheel both on and off road.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

1. If your vehicle is equipped with a front anti-sway bar, you will want a 123401 available in the options.
2. Does not fit Broncos without power steering.
3. Front alignment cams available in the accessories may be required for alignment.

• Easy, Bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty steel drop brackets for proper suspension geometry
• Cast steel blocks provide level stance from front to rear
• NX2 Nitro shocks with vehicle-specific valving for better control

Rear Lift Option

Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

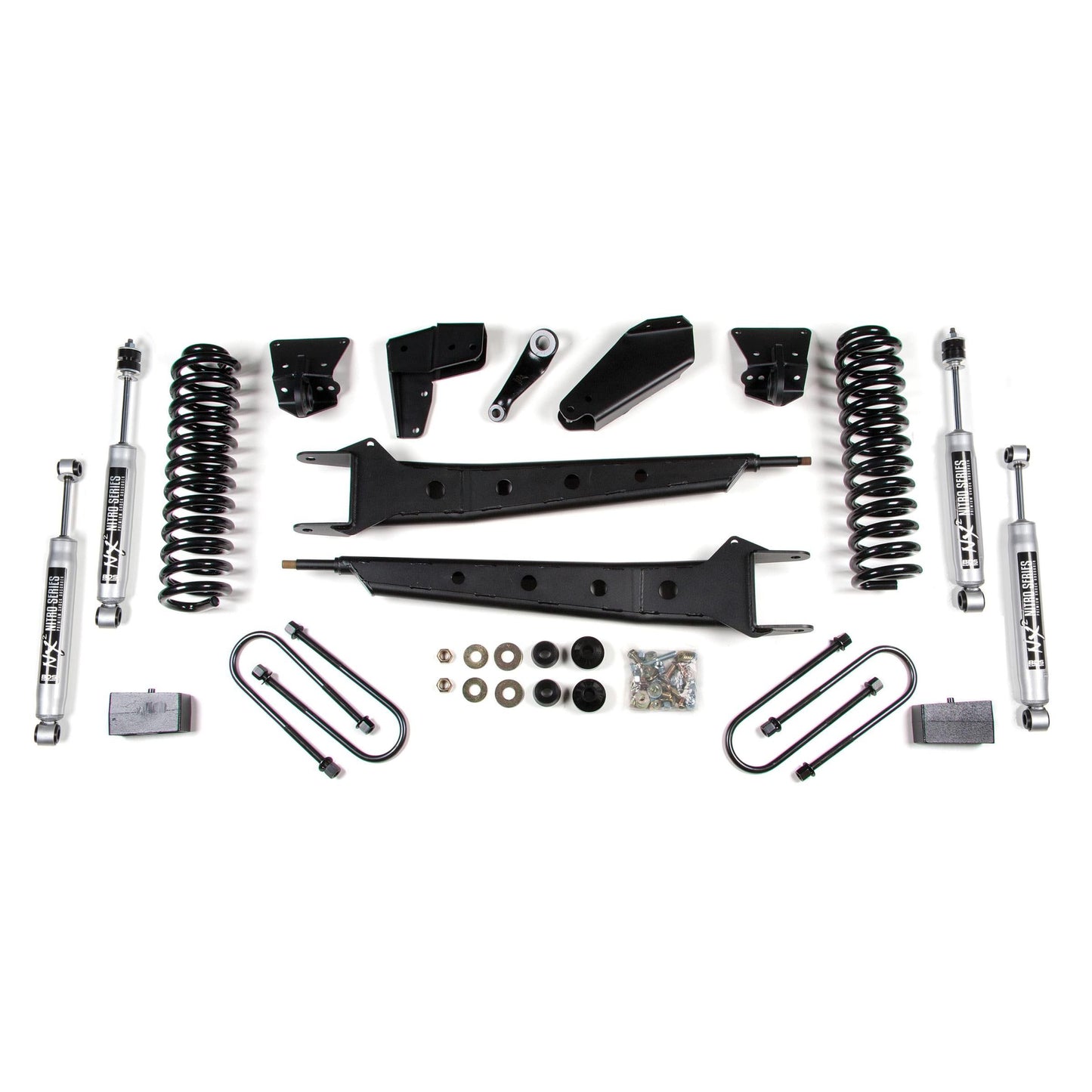

Kit Components:

• Includes two BDS003208, 73-96 Ford F150 2 Inch Rear Spring 3in wide, UPC Code 658848611324
• Includes one BDS013003, 80-96 Ford F150 Ext Radius Arm Front Box, UPC Code 658848612932
• Includes one BDS033401, 80-96 Ford F150/Bronco 4 Inch Coil Kit, UPC Code 658848616497
• Includes two BDS85650, Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1, UPC Code 711745609457
• Includes two BDS85800, Shock- 20.40 x 12.65 x 2-3/8 - S1/EB1, UPC Code 711745609808
• Includes four UBT4051, 9/16 x 3-1/4 x 10 Round U-bolt, UPC Code 711745613126
