BDS Suspension | 6 Inch Lift Kit Ford F100/F150 73-76 4WD Block Kit and Add A Leaf NX2 Nitro | BDS376H

Raise up your 1973-1976 Ford F100 and F150 4WD truck to new heights with a 6-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes Pro-Ride coil springs, radius arm drop brackets, track bar relocation bracket for steering correction, bump stop brackets and precision tuned NX2 nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Pro-Ride Coil Springs

A pair of full-length, truck-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5.5 inch

1. Alignment inchC inch bushings may be required.
2. #003408 (4 inch) Leaf Springs and #003608 (6 inch) Leaf Springs come with OE style bushings installed.
3. Add two front auxiliary shocks if the vehicle is equipped with factory dual mounts.

• Easy, Bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty steel drop brackets for proper suspension geometry
• Cast steel blocks provide level stance from front to rear
• NX2 Nitro shocks with vehicle-specific valving for better control

Rear Lift Option Block Kit with Add-A-Leaf

• Add-a-leaf helps freshen up old worn-out factory leaf springs.
• Blocks are made from cast iron for max strength.
• Includes new center pins.

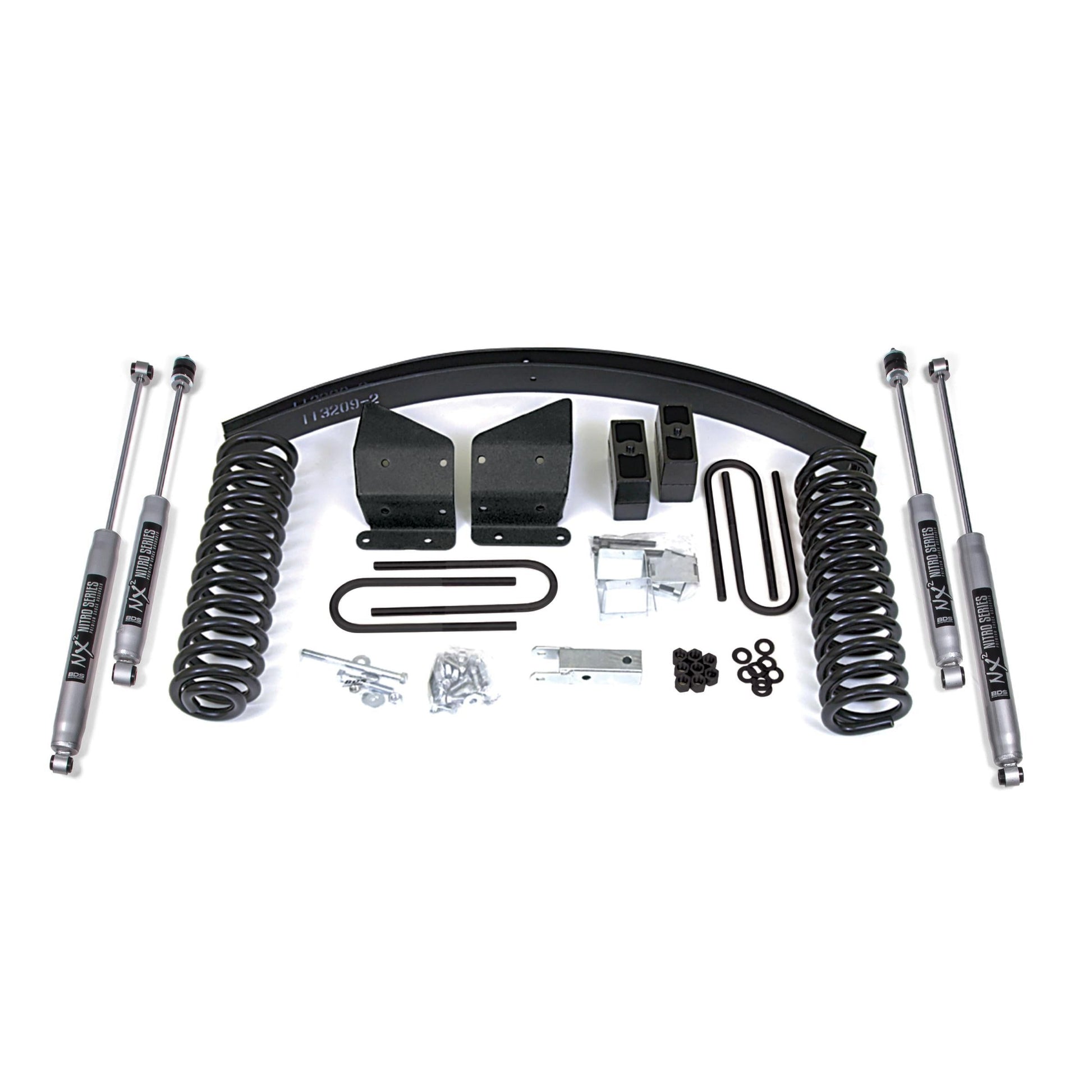

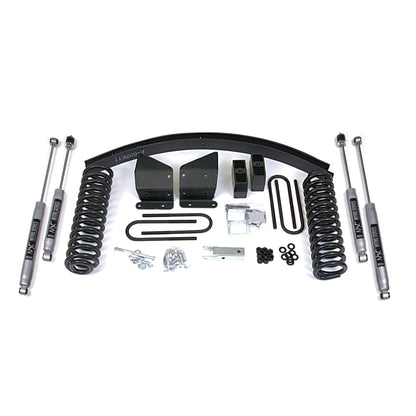

Kit Components:

• Includes one BDS013002, 73-79 Ford Radius Arm Drop Kit, UPC Code 658848612925
• Includes one BDS033603, Ford F150(73-79)/Bronco(78-79) 6 Inch Coil, UPC Code 658848616565
• Includes one BDS063409, Ford F150 4 Inch Block & U-bolt Kit, UPC Code 658848617050
• Includes one BDS113208, Ford 3in wide Rear Single Add-a-leaf, UPC Code 658848618705
• Includes one BDS123001, 73-79 Ford Track Bar Ext Bracket, UPC Code 658848619863
• Includes two BDS85860, Shock - 29.80 x 17.57 x 2-3/8 -S1/EB1, UPC Code 711745609907
• Includes two BDS85877, Shock- 30.95 x 18.20 x 2-3/8 - EB1/EB1, UPC Code 711745609921
