BDS Suspension | FOX 2.5 Coil-Over Conversion Upgrade 8 Inch Lift Performance Elite Ford F250/F350 Super Duty 05-16 4WD Diesel | BDS1515FPE

BDS offers complete coilover conversion upgrade kits for your 2005-2016 Ford F250 and F350 Super Duty that make it effortless to convert your standard lifted suspension into coilovers.

These kits are equipped with heavy-duty brackets and FOX 2.5 Coilovers to withstand any rugged use and abuse you subject them to, taking your vehicle's performance to new heights. These upgrade kits are compatible with existing BDS 8-inch lift kits, allowing for seamless integration.

FOX Performance Elite Coil-Overs

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.

They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The Dual Speed Compression

Adjust adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

• Type: Shocks
• Lower Mount Type: No Lower Mount Type
• Upper Mount Type: No Upper Mount Type
• Gas Charged: No Gas Charged
• Adjustable: true
• Adjustable Dampening: No Adjustable Dampening
• Compressed Length: No Compressed Length
• Travel Length: No Travel Length
• Extended Length: No Extended Length
• Shaft Diameter: No Shaft Diameter

• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Eibach coil springs ride smooth through the roughest terrain
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
• 2.5-inch smooth bore zinc plated seamless steel body
• Zinc-plated and double-clear coated for long lasting finish
• Black-anodized, CNC-machined 6061-T6 billet aluminum
• Application specific valving to maximize performance

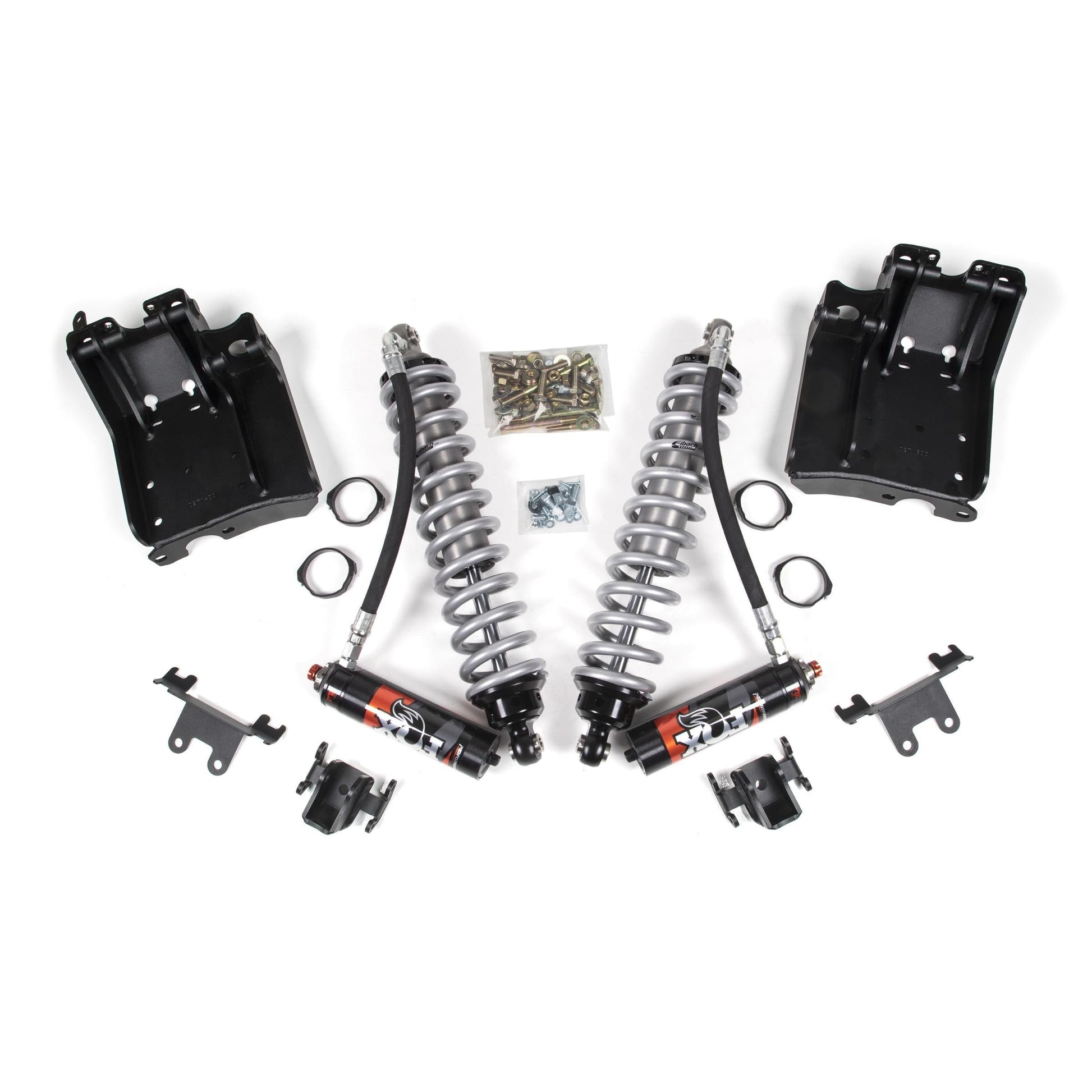

Kit Components:

• Includes one BDS123212, 2005-2016 Ford F250/F350 Super Duty Coilover Mount Kit (2 Inch-8 Inch), UPC Code 711745604063
• Includes one FOX88406429, Kit: BDS 05-ON Ford SD, Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R, 8 Inch Lift, Dual Speed Compression Adjust
