BILSTEIN | Suspension Shock Absorber Front Rear Monotube Ford Bronco 1966-1977 Jeep Cherokee 1981-1983 CJ5 1959-1983 CJ5A 1966-1968 CJ7 1976-1986 Grand Wagoneer 1984-1991 J10 1981-1988 J20 1981-1988 Toyota Pickup 1979-1983 B8 5125 | 33-186542

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment.

These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments.

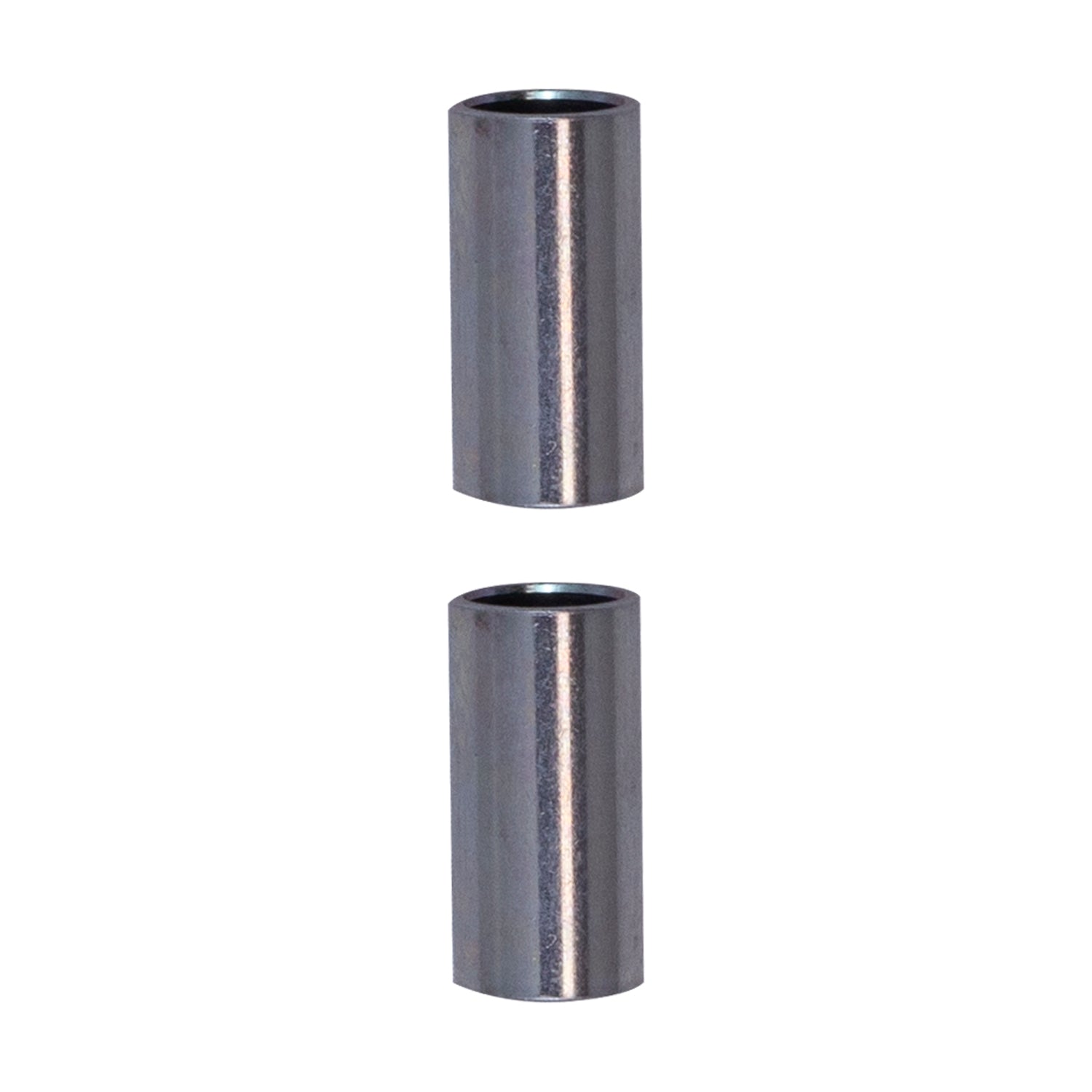

All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving.

Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

Details:

• Series: B8 5125
• Internal Design:Monotube
• Lift Height: 2-4 Inch
• Lower Mount Type: Eye 5/8in
• Upper Mount Type: Eye 5/8in
• Finish: Zinc Plated
• Adjustable: Non-Adjustable
• Body Design: Smooth Body (Non-Coilover)
• Collapsed Length Inch: 15.12
• Compression at 52m s: 620
• Extended Length Inch: 24.34
• Boot Included:Black Bellows
• Mount Type: Eye-to-Eye
• Pistion Diameter: 46mm
• Postion: Front, Rear
• Rebound at 52m/s: 2495
• Reservior: No
• Shaft Diameter: 14mm
• Stroke Travel Length In: 9.22
• Stroke Travel Length In: 234.2
• Notes: For Front Lifted Height 2-4 Inch
• Applications: Ford Bronco 1966-1977, Jeep Cherokee 1981-1983, CJ5 1959-1983, CJ5A 1966-1968, CJ7 1976-1986, Grand Wagoneer 1984-1991, J10 1981-1988, J20 1981-1988, Toyota Pickup 1979-1983
• Warranty: Limited 90 Day Warranty
