ICON 2020-Up Jeep Gladiator, 2.5" Lift, Stage 4 Suspension System

overview

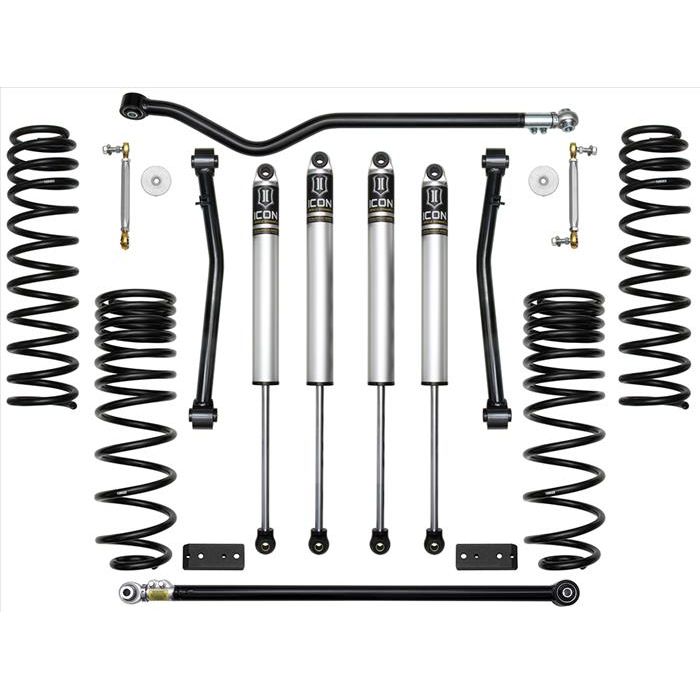

The Stage 4 ICON 2.5? Suspension System for the Jeep Gladiator is the ideal setup for drastically improving on-road ride quality and overall performance for the daily driven application that will see frequent, moderate off-road use. This complete suspension system features 2.0 Aluminum Series shocks, 2.5? lift dual-rate front coil springs, a tubular steel fixed front lower link kit, billet front sway bar links, a triple-rate rear coil spring kit, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35? tire. For those looking to run a 37? tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).

features & Benefits
2.5" lift height
Fits 35" tires (37" with extended bump stop spacer kit)
33% front, 23% rear increase in wheel travel
Improves on and off-road ride quality over stock
Front lower links included for caster angle correction and improved front end articulation
Dual rate front coil springs with lifetime guarantee against sagging/breakage
Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
2.0 Aluminum Series shocks with vehicle specific valving
Front and rear track bars ensure proper alignment and improved articulation
Adjustable, billet aluminum front sway bar links
100% bolt-on system makes for an easy install
?ICON 1K? tested under rigorous off-road conditions to validate tune, performance, strength, and durability
download installation guide
Download Installation Guide
Warranty
Tech Info:
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5? Backspace / -6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5? Backspace / -12mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071)
APPLICATION NOTE #127: Will Not Fit Gladiator Mojave Trim
APPLICATION NOTE #150: Shocks Are Fully Serviceable
TECH NOTE: ICON?s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
TECH NOTE: Diesel models will net approx. 1.75" of front lift over stock due to their heavier weight.
Ships In Multiple Boxes
System Components:

22021 (QTY: 1) | 18-23 JL/20-23 JT FRONT FIXED LOWER LINK KIT
22025 (QTY: 1) | 18-23 JL 2.5"/20-23 JT 2" FRONT DUAL RATE SPRING KIT
22066 (QTY: 1) | 20-UP JT 1.5" REAR MULTI RATE SPRING KIT
22061 (QTY: 1) | 18-UP JL/20-UP JT FRONT SWAY BAR LINK KIT
22062 (QTY: 1) | 20-UP JT REAR SWAY BAR RELOCATION KIT
22027 (QTY: 1) | 18-UP JL/20-UP JT FRONT ADJ TRACK BAR KIT
22068 (QTY: 1) | 20-23 JEEP JT/19-23 RAM 1500 REAR ADJ TRACK BAR KIT
26523 (QTY: 2) | 18-UP JL/20-UP JT 2.5" FRONT 2.0 VS IR
26527 (QTY: 2) | 20-UP JT 2.5" REAR 2.0 VS IR
