ORACLE LIGHTING TRIGGER 6 SHOOTER Controller Jeep JL-JT Combo Kit

Part Number: 3001JL

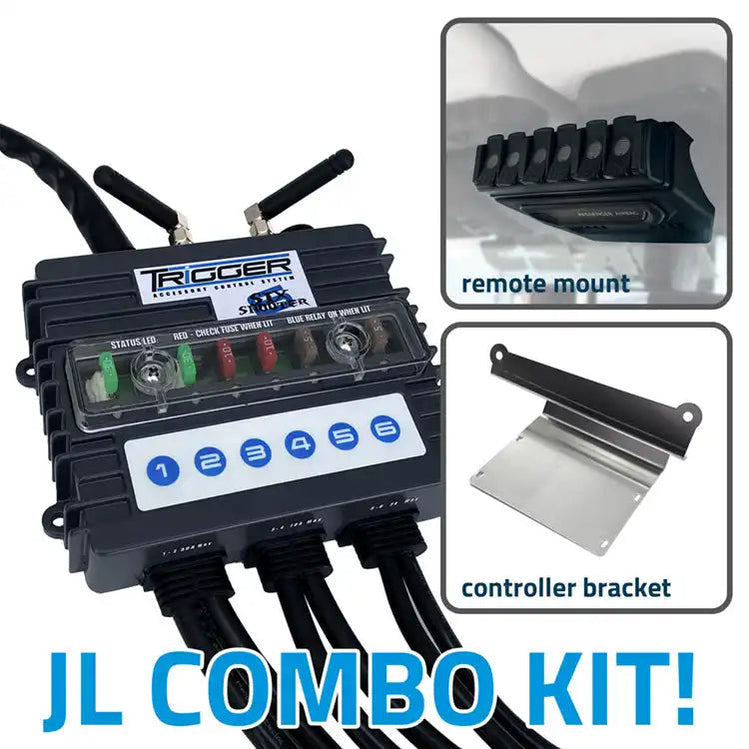

TRIGGER 6 SHOOTER Jeep JL-JT Combo Kit

*Does not work with JL/JT 3Ltr Eco Diesel*

The TRIGGER 6 SHOOTER Jeep JL-JT Combo Kit pairs our critically acclaimed TRIGGER 6 SHOOTER Wireless Controller with two essential installation accessories: Our Wheel-Well Controller Mounting Bracket and the Overhead RF Remote Mount!

Please note: the Overhead remote mount will NOT fit on vehicles equipped with the Adaptive Cruise Control option.

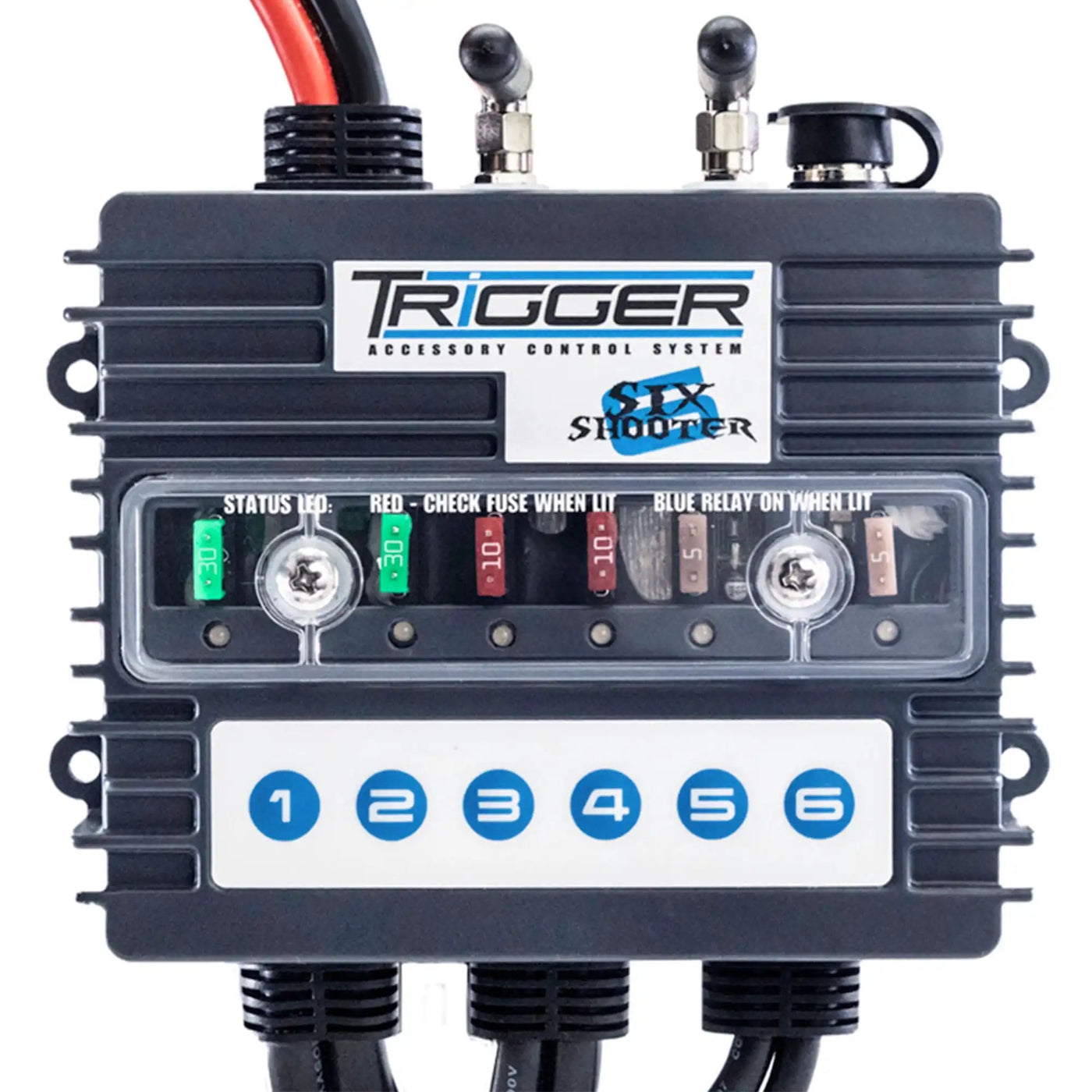

The TRIGGER 6 SHOOTER Wireless Accessory Controller

Save installation time of your electronic accessories! Eliminate the need to run wires under the dash or through the firewall of a vehicle when wiring accessories. Add functionality such as an RF remote control for activating installed accessories from outside the vehicle. In addition, fused circuits with LED indicators notify you of circuit status or blown fuses.

The included battery-powered RF remote utilizes a universal mounting system that will accommodate round as well as flat surfaces. Its buttons are back-lit and it is programmable for security or use with additional remote’s. Several TRIGGER control boxes and remotes can be used together to control up to 24 accessories. When mounted to a UTV roll bar, the buttons on the remote are more easily accessible than dash switches. No straining against seat belts to reach the dash, just a quick reach up to flip a switch.

The Bluetooth App will control on/off and dimming functions as well as flashing when used with LED or conventional lighting. It is simple to set up and allows for user customization. Use the app to “TRIGGER” lights from outside the vehicle whenever you might need to activate an accessory on demand.

A few notable features:

• • Accepts 12-24 Volt input
  • Two 30 amp fused circuits w/12-24 Volt output
  • Two 10 amp fused circuits w/12-24 Volt output
  • Two 5 amp fused circuits w/12-24 Volt output

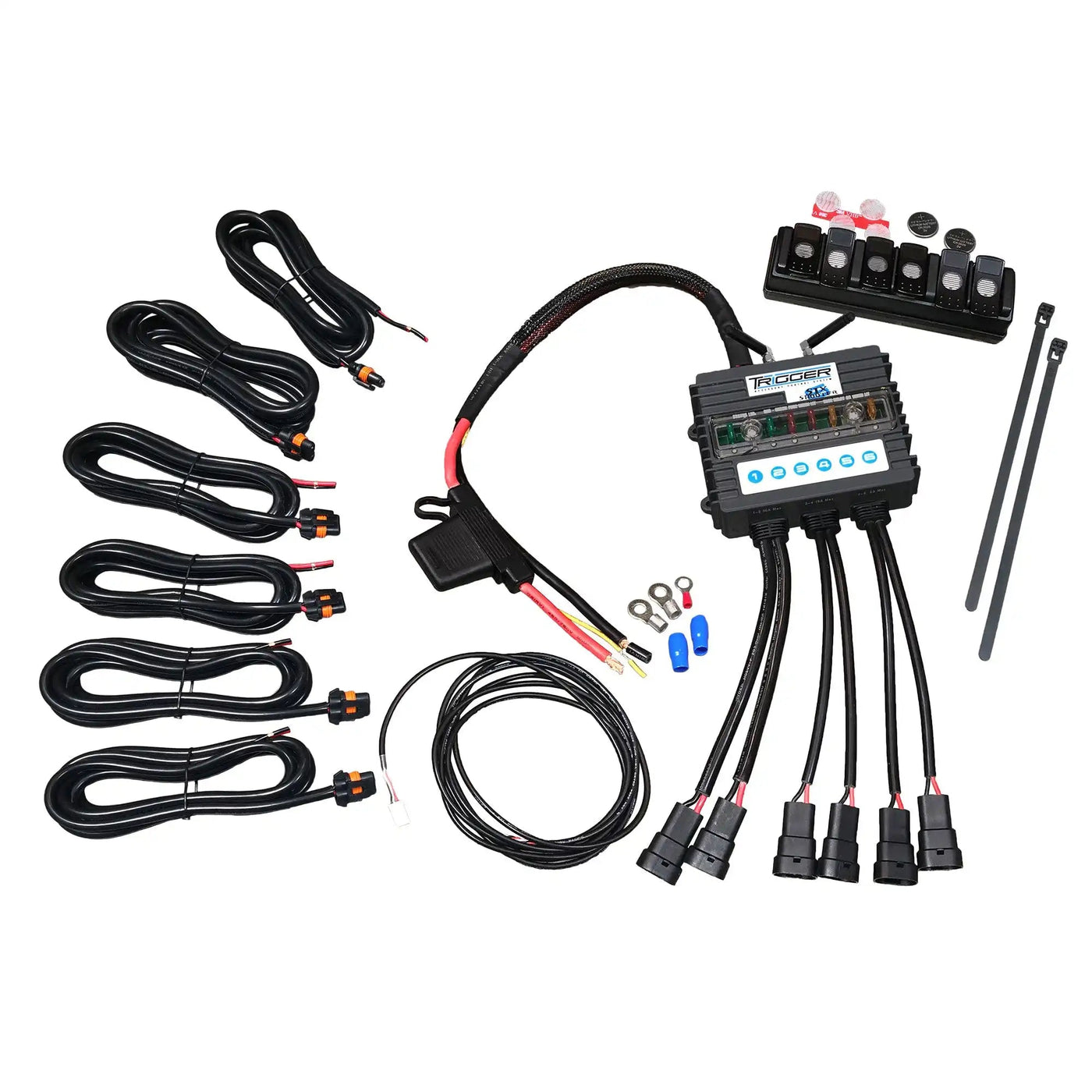

  • Includes 6 wire harnesses with waterproof connectors
  • Wireless back-lit RF remote rocker switch module
  • Backlit switches when optionally connected to 12 Volt power via an 8' long, thin 28 gauge harness
  • You can control it from your mobile device with our free TRIGGER ACS PLUS App for iOS/Android!
  • Comes with switch labels too!
  • Free 3-year warranty that covers manufacturing defects

• 6 channels, (2) 30 amp circuits, (2) 10 amp circuits, (2) 5 amp circuits
• All solid state, 12-24 volt input/output
• RF Remote switch pad usable inside or outside the vehicle
• Bluetooth control from phone/tablet app
• Manual buttons for on/off on top of case
• DIN connector built in for manual control with conventional toggle switches (harness sold separately)
• Low voltage cutout to shut down Trigger if battery voltage gets low
• 100 amp fuse installed on positive input wire for protection
• 12 to 24 volt out with waterproof connectors
• Fuse's built in, waterproof cover (30 amp - 1 and 2, 10 amp - 3 and 4, 5 amp - 5 and 6)
• LED's to indicate relay on and if fuse is blown, blue for circuit on, red for blown fuse
• Waterproof case design, withstands temps to 250 deg. F and below freezing

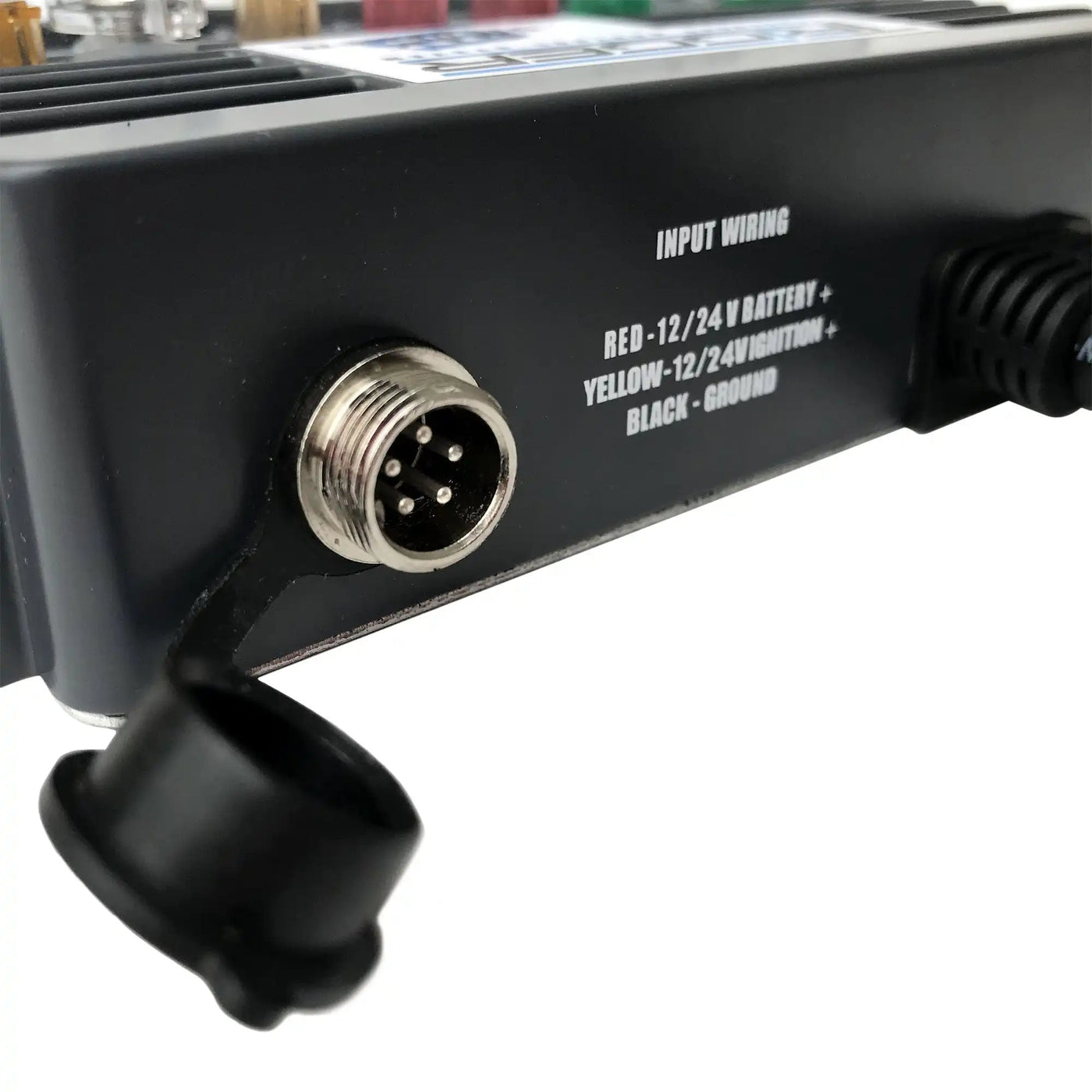

• 12 to 24 volt input, 3 wires, ground, switched positive, battery positive
• Control it all from your mobile device with the free App
• Includes: Trigger Six Shooter Wireless Controller (PN: 3001)

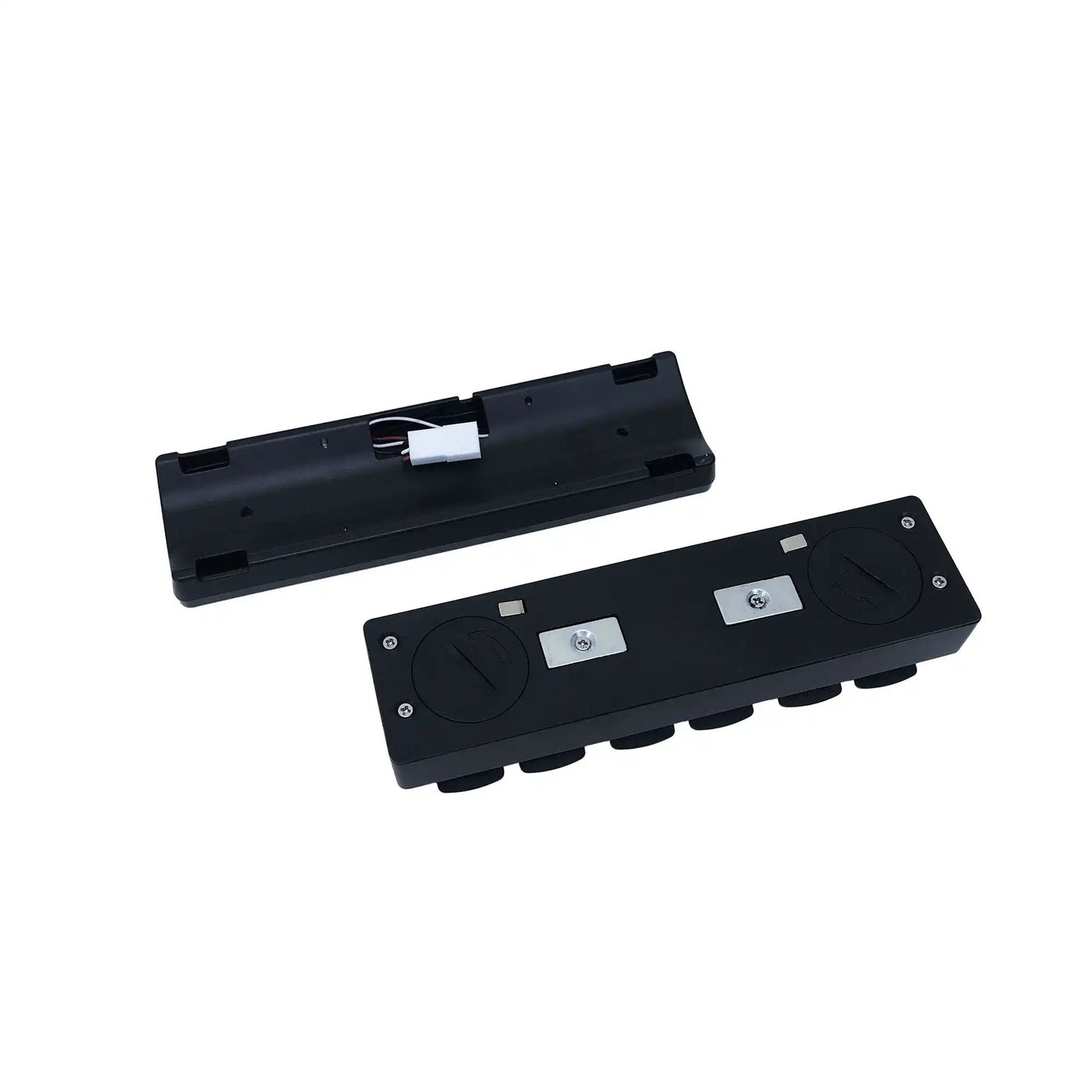

• Overhead RF remote bracket (PN: 2013-6)
• Underhood controller mounting plate (PN: 2016)
