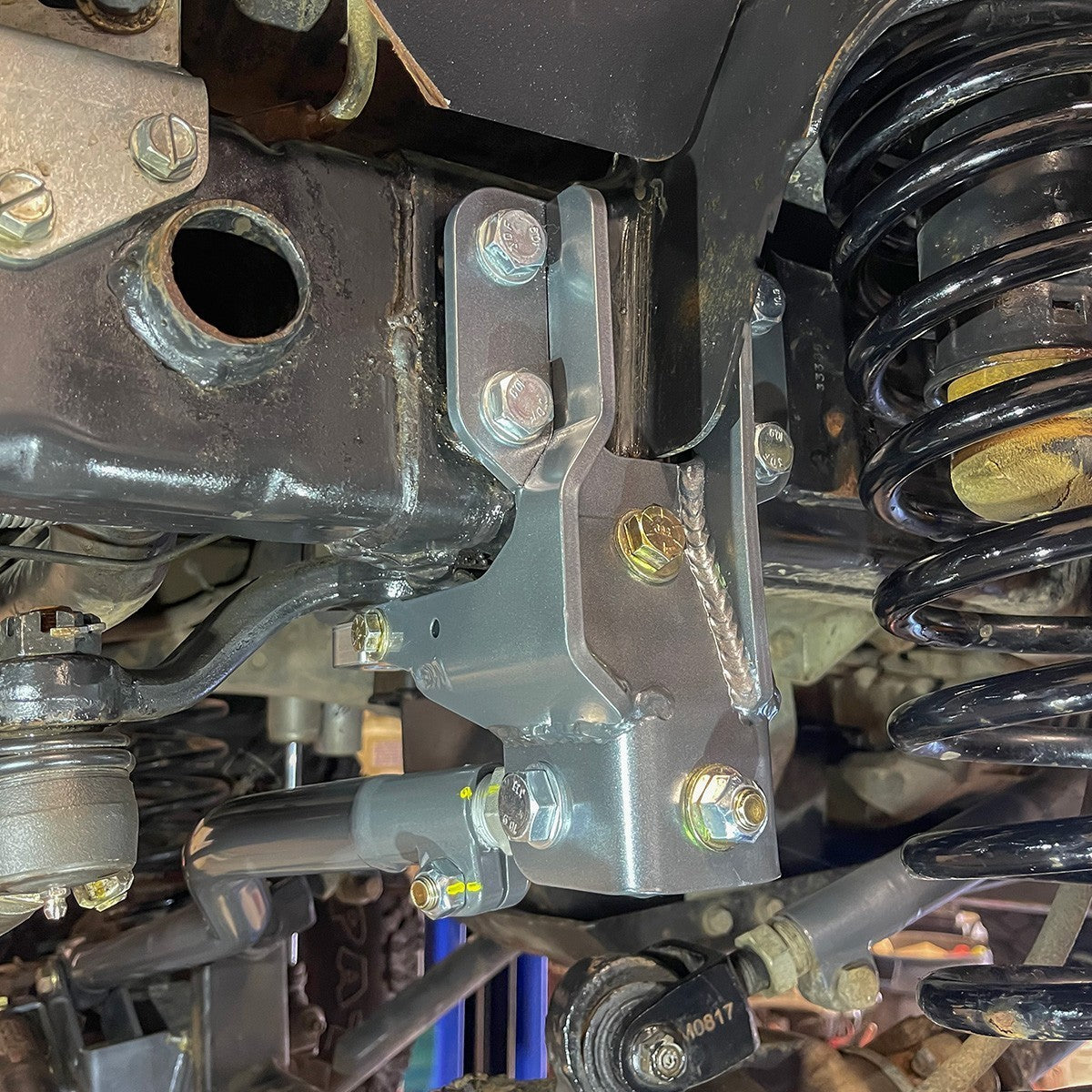

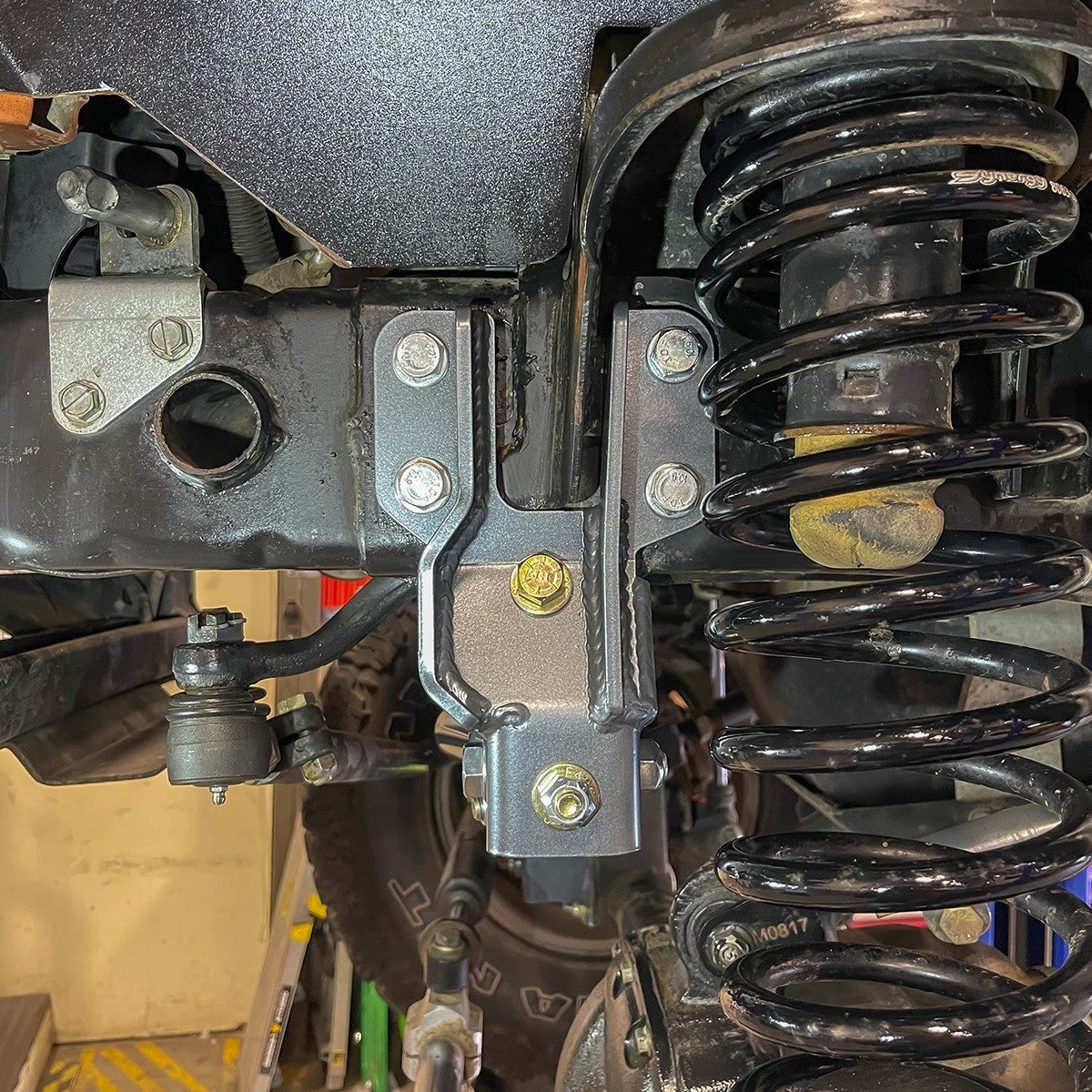

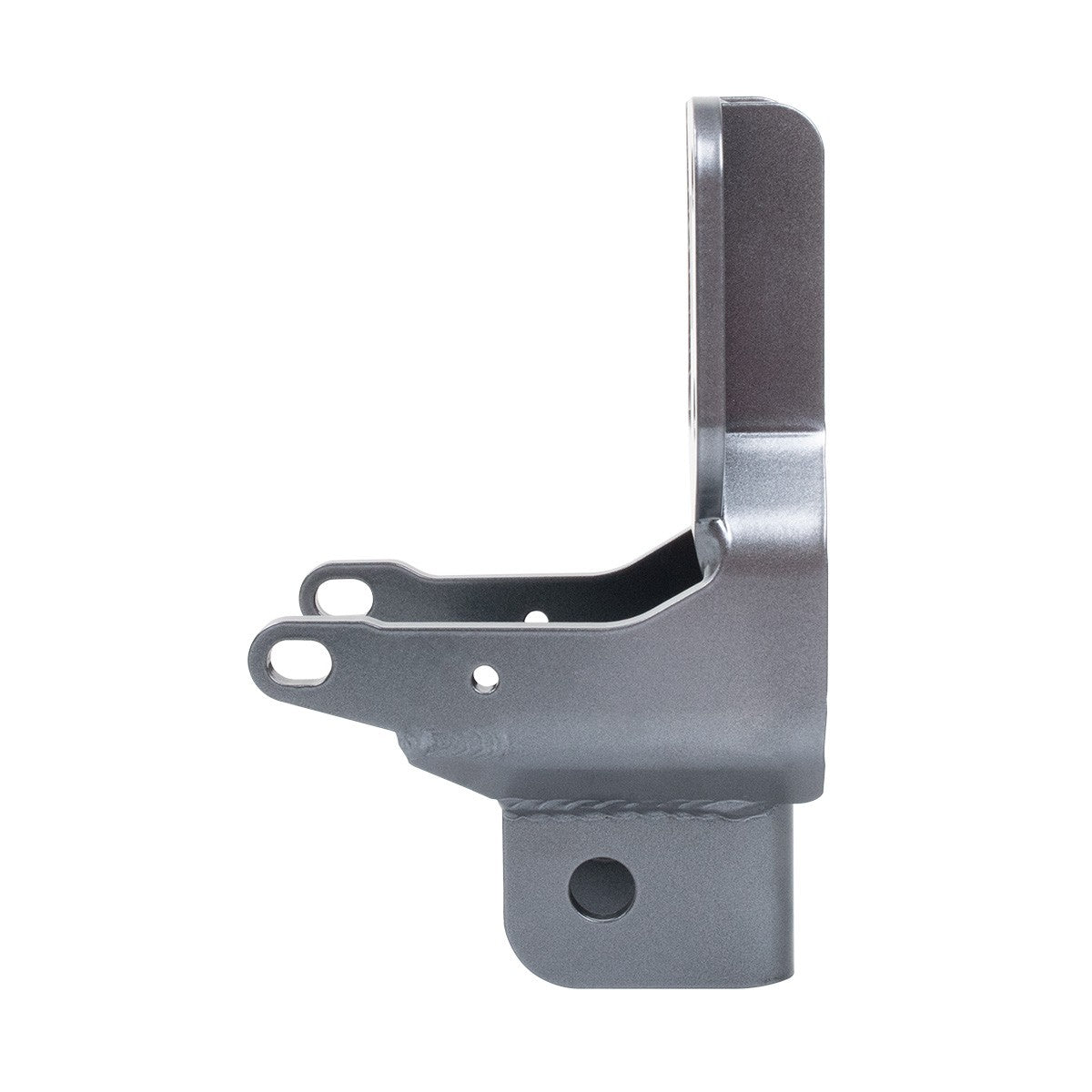

Synergy Front Track Bar and Sector Shaft Brace for 2007-2018 Jeep JK / JKU 8069-04

Synergy Front Track Bar and Sector Shaft Brace for 2007-2018 Jeep JK / JKU 8069-04

SKU:8069-04

Regular price $445.99 CAD
Regular price Sale price $445.99 CAD
Sale Sold out
  • Ships direct from Canada with no import fees!
  • Local in store pick up available!
  • Visit our show room or call 416-624-1357
  • Have our team of professionals install this!
View full details

Collapsible content

Description

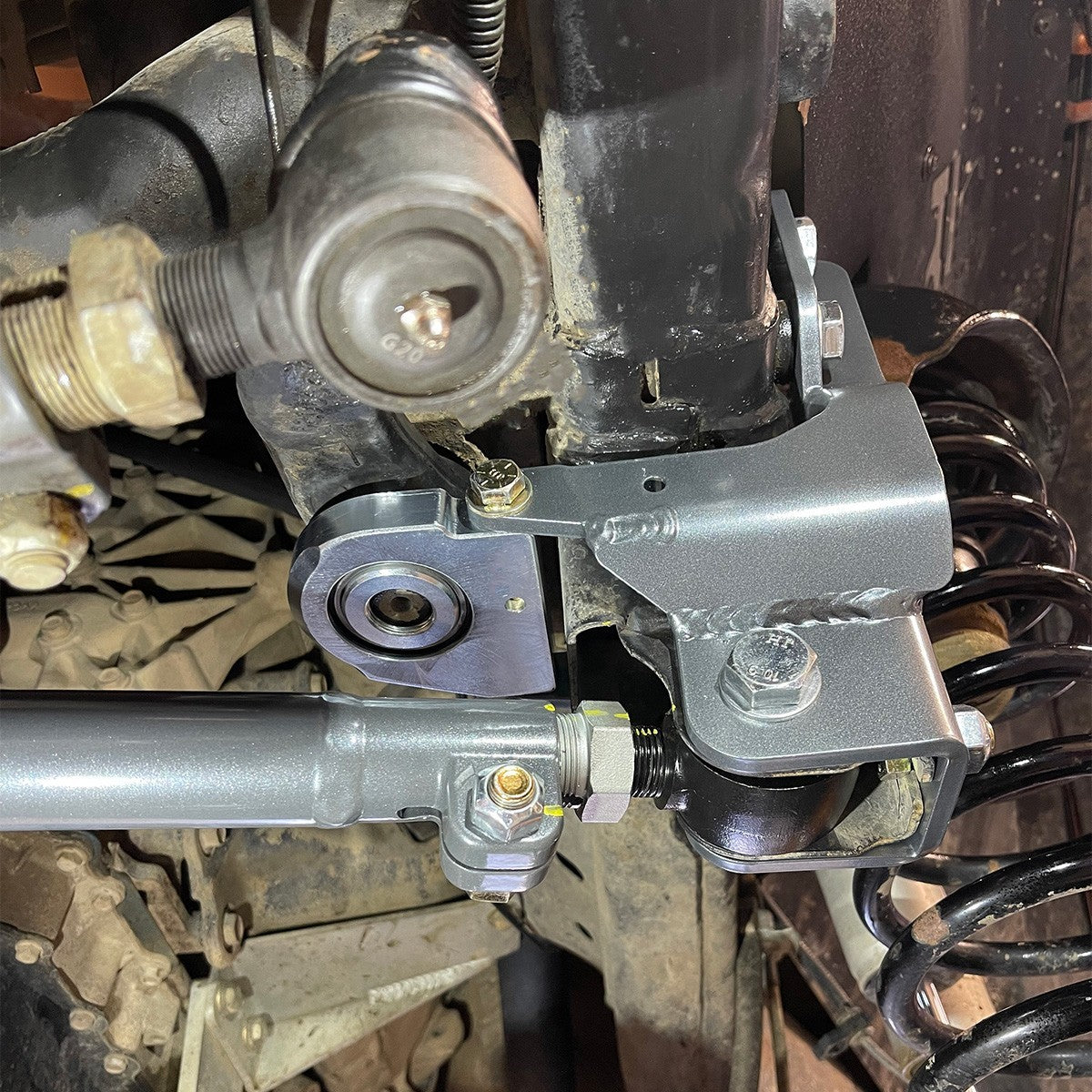

The Synergy Jeep JK / JKU Front Track Bar and Sector Shaft Brace is designed to better distribute the increased load the frame side track bar bracket encounters on a lifted Jeep and supports the steering box sector shaft from excessive deflection. A track bar bracket or steering box failure is a quick way to end your day. A lift and large tires can easily push these components past their capacity. Reinforce your front frame side track bar bracket and sector shaft with Synergy's Front Track Bar and Sector Shaft Brace.

Fits:

  • 2007-2018 Jeep Wrangler JK / JKU

Benefits:

  • Prevents frame side track bar bracket from failing when lifted and running large tires.
  • Prevents excessive deflection of the steering box sector shaft which can result in excessive steering box wear, play, or breakage.

Features:

  • Better distributes the increased load on the factory track bar bracket
  • Added thickness at the track bar bolt prevents the track bar bolt from ovalizing out the stock mount.
  • Bolt-on fix for those who already have an ovalized track bar bracket bolt hole.
  • Maintenance free sealed bearing
  • Track bar brace laser cut and CNC formed from 1/4 inch high strength steel.
  • Sector shaft brace is CNC machined from high carbon steel then zinc plated
  • Components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance.
  • 100 percent bolt on components assures an easy, trouble free installation with the use of basic hand tools.

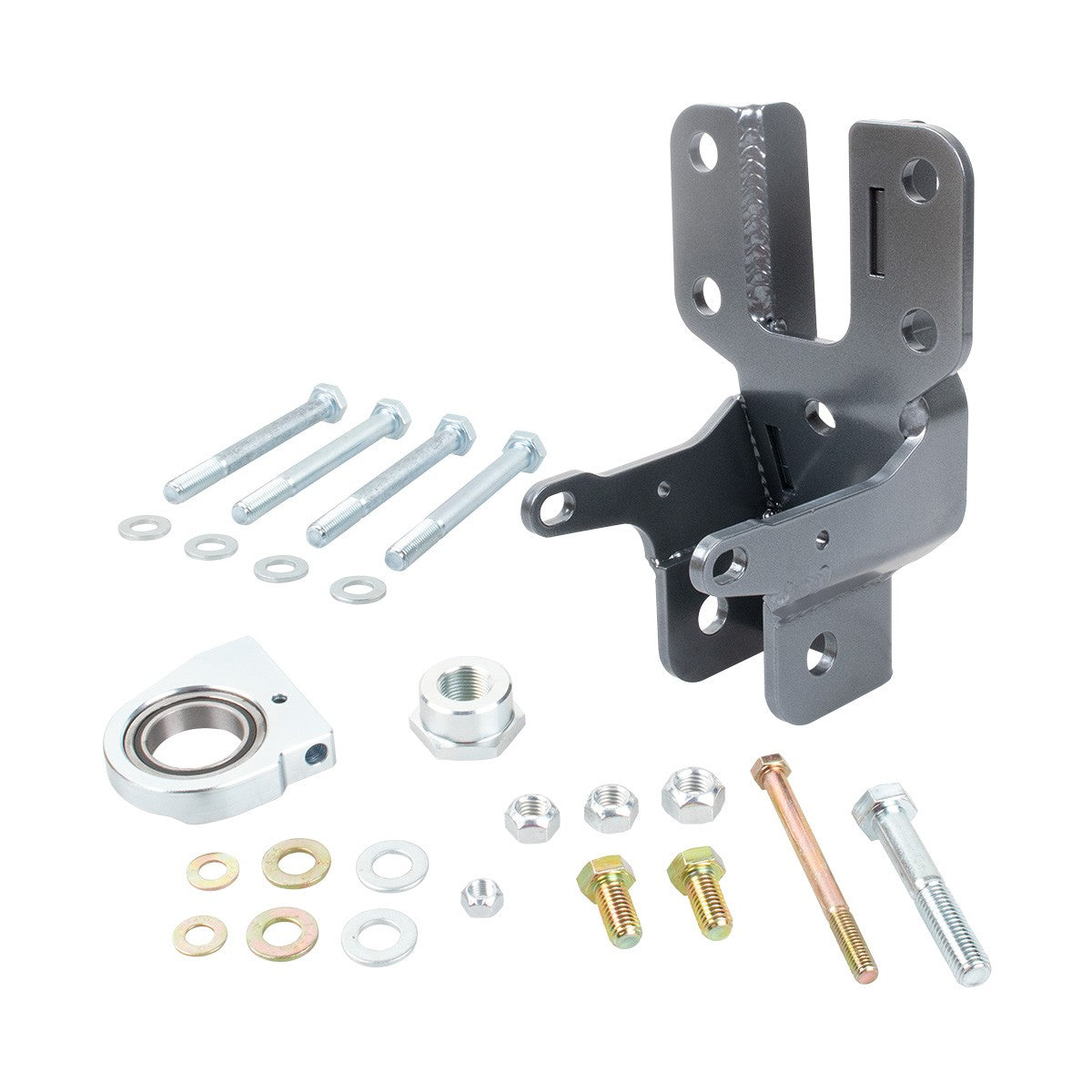

Includes:

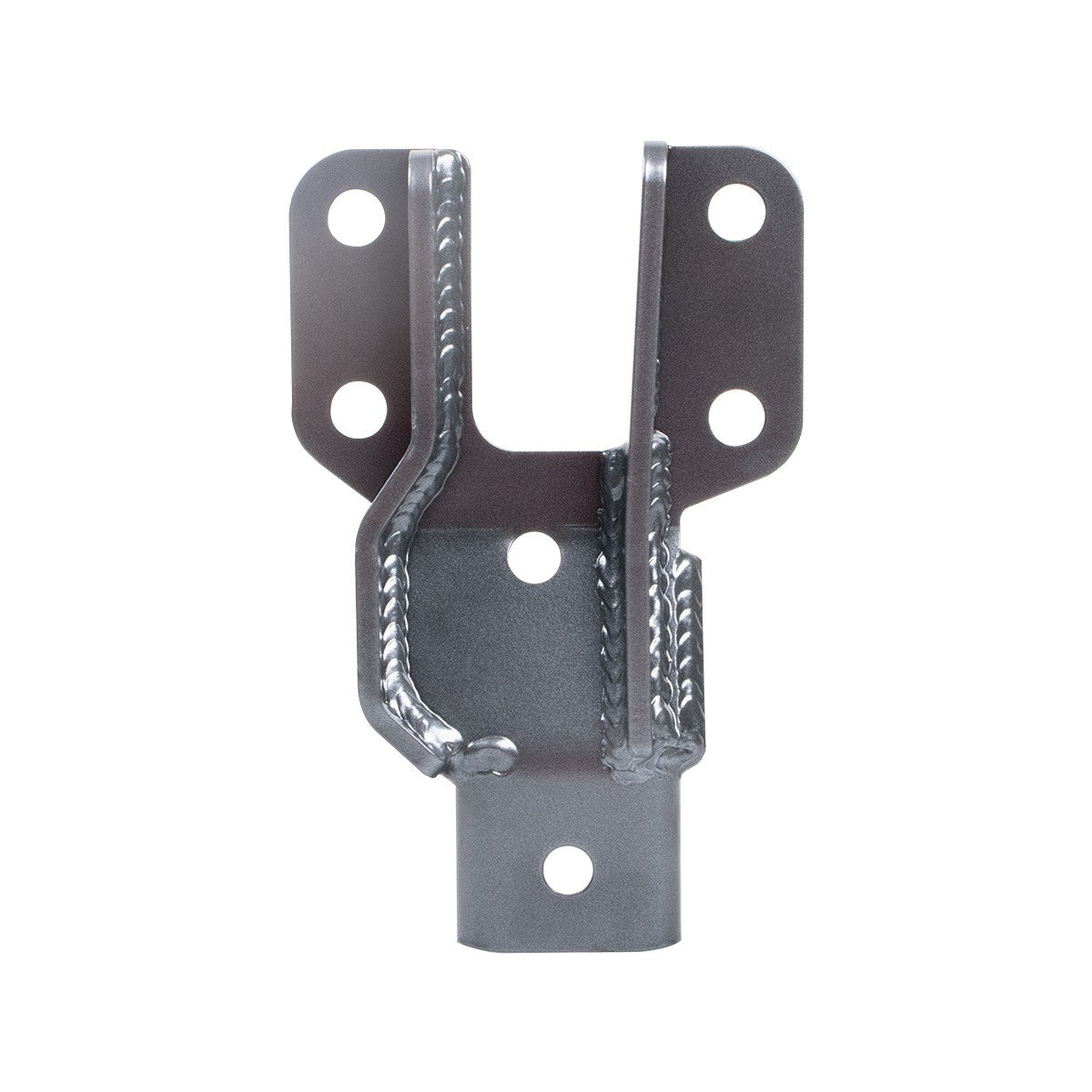

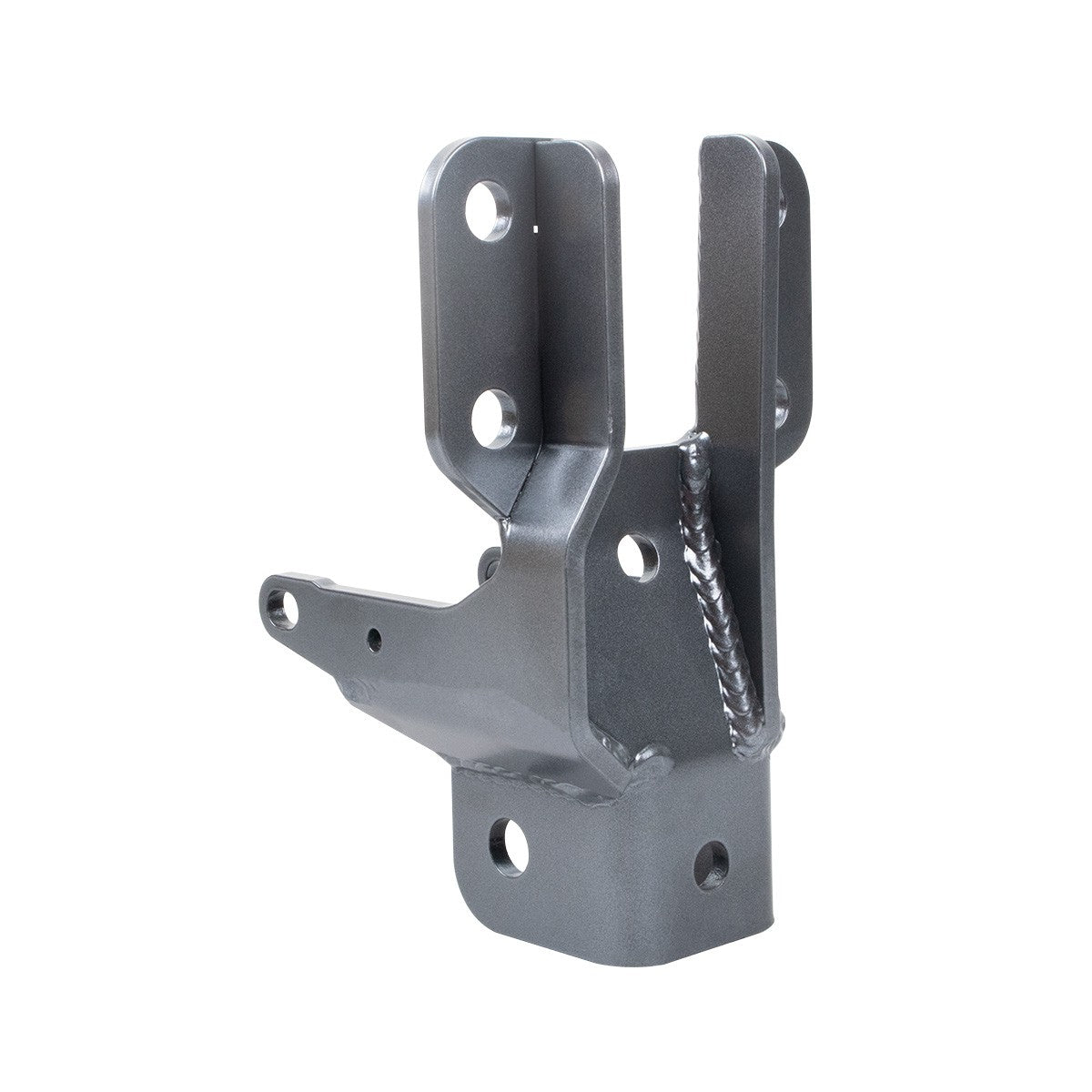

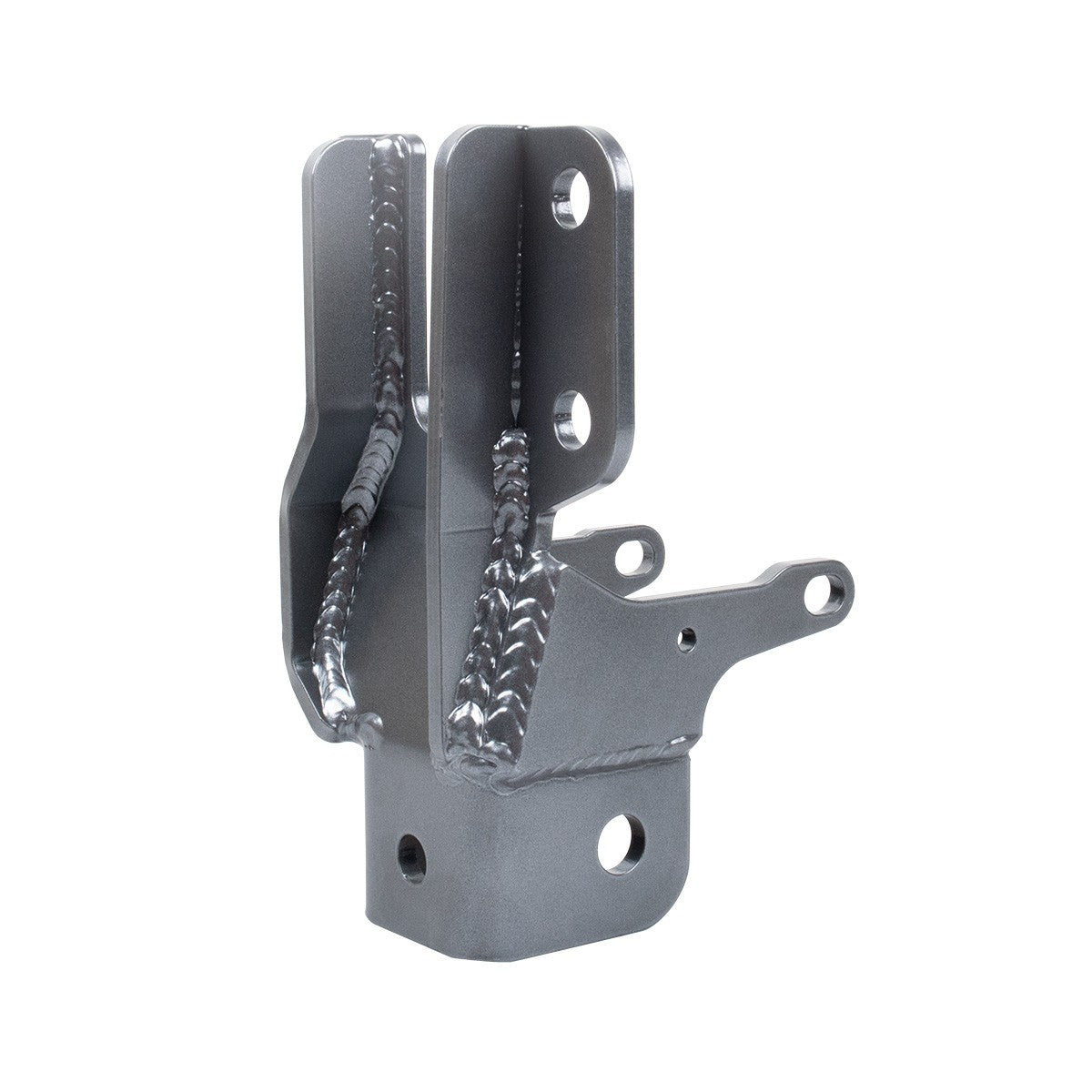

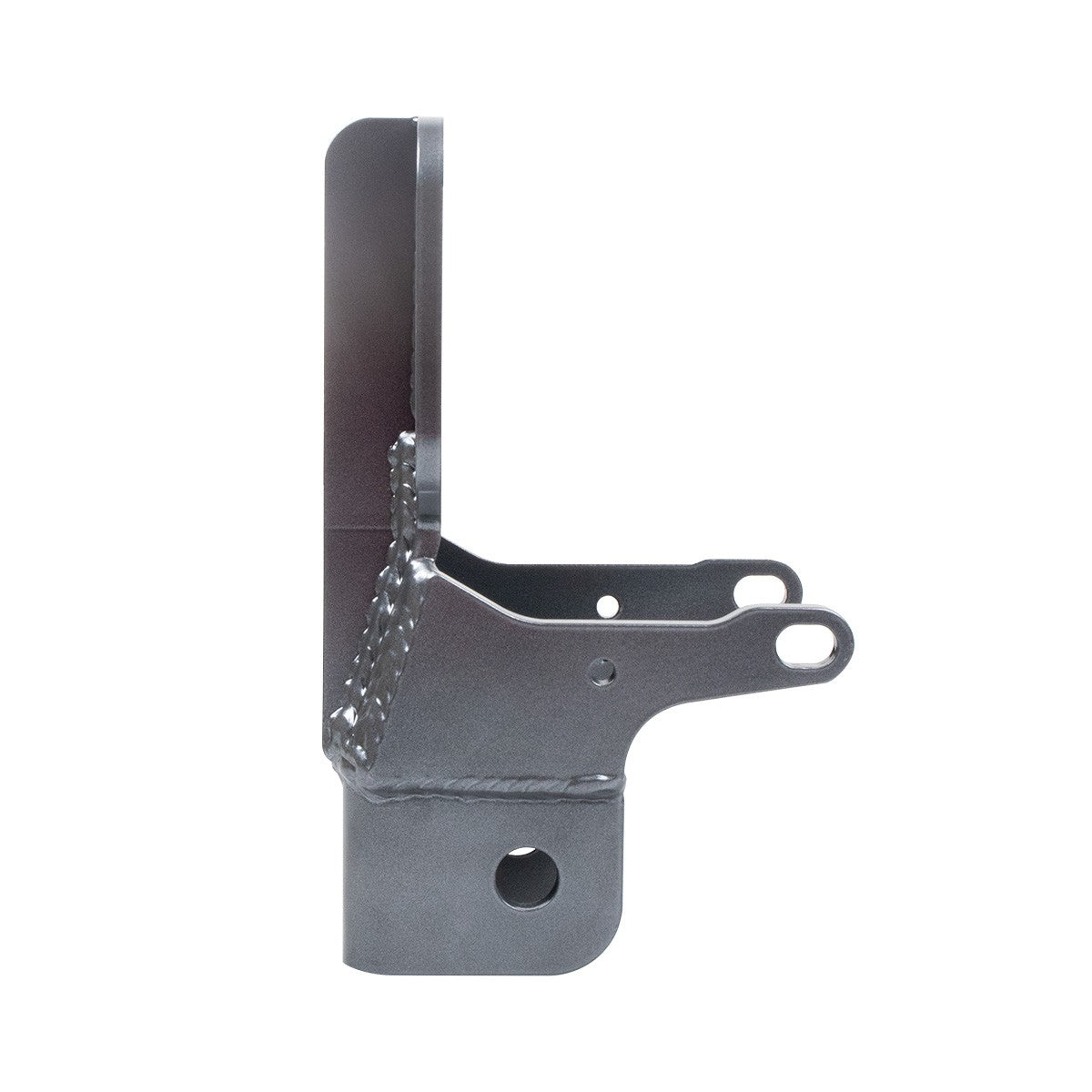

  • (1) Front track bar brace
  • (1) Steal sector shaft brace with sealed bearing
  • (1) Sector shaft pitman arm nut
  • (1) Hardware kit

Notes:

  • This is not a replacement track bar bracket. This is a brace to reinforce the stock frame-side front track bar bracket.
  • If your stock track bar bracket is damaged, complete required repairs before installing this product.
  • No bump stop spacing is required when used in conjunction with the 8075-02 Synergy MFG Front Track Bar.
  • If using the stock front track bar, a minimum 2” of bump stop spacing is required: use Synergy Snap-Lock Bump Stops 8057-10
  • If using an aftermarket front track bar, the front springs should be removed and the suspension cycled to full bump to determine the bump stop spacing required to prevent the track bar from contacting the sector shaft nut, or any other interference.
  • If using with a PSC big bore box, bearing part number 8069-14 is needed with PSC big bore sector shaft nut 8869-10
