TeraFlex | 07-18 Wrangler JK 2 Door 3 Inch Alpine RT3 Short Arm Suspension System No Shocks TeraFlex | 1233000

TeraFlex Alpine RT (Rogue Trail) Suspension Systems build on our already capable Alpine CT (Cross-Trail) Suspension Systems. These systems include all our top-of-the-line components.

The 3 Inch Alpine RT3 Short Arm Suspension System features Alpine IR Short Control Arms with our all-new IR (Independent Rotation) Bushings. These adjustable control arms and bushings team up to give your rig an unprecedented smooth and quiet ride both on and off road. Additionally, the included Front SpeedBump Bump Stops take the hard hits out of those unexpected trail surprises. This suspension system tackles rugged trails or Baja silt beds as well as the daily commute making it a no-compromise choice for the true weekend warrior with a do-it-all attitude.

Adjustable Alpine IR Short Control Arms balance front caster angle and pinion angles as well as optimize rear pinion angles, anti-squat geometry, and tire position on vehicles with 2-4 Inch Lifts.

Alpine IR Control Arms feature our all-new Independent Rotation (IR) Bushings. These innovative bushings remove bushing bind during full suspension travel for less overall bushing load during articulation resulting in unrestricted droop as well as a noticeable ride improvement whether on the highway or the trail.

HD Forged Adjustable Track Bar(s) and Rear Track Bar Axle Bracket improve steering response, center the axles to optimize vehicle roll center, and reduce body roll for unsurpassed handling.

This results in improved suspension geometry and relaxed control arm angles for a superior ride quality and performance regardless of terrain. These systems restore front and rear roll axis angles to minimize brake dive and acceleration squat. TeraFlex suspension systems provide reduced noise, vibration, and harshness (NVH).

Alpine RT Suspension Systems are for the Jeeper who wants it all!

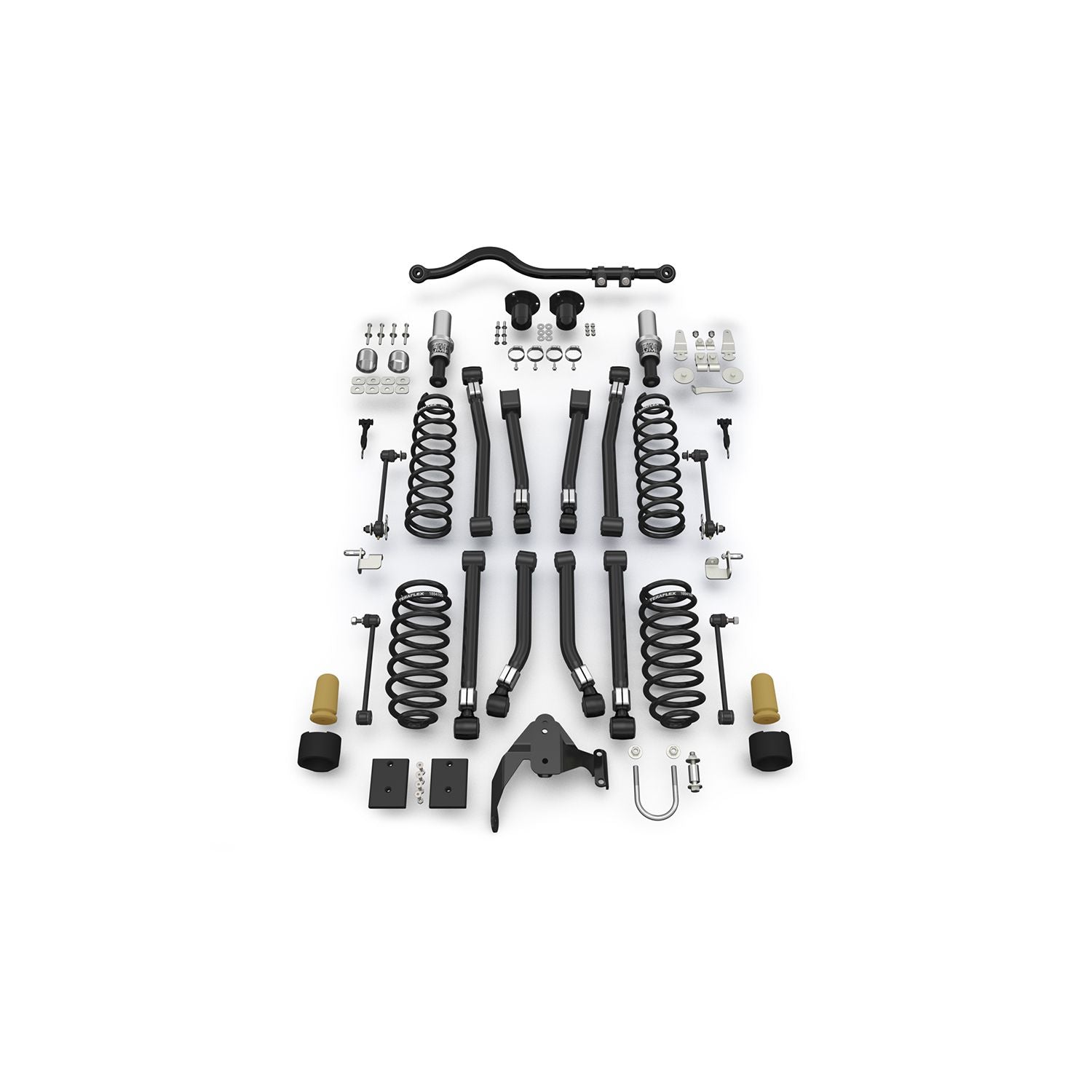

Includes:

• 3 Inch Lift Coil Spring Kit (JK2 Front: # 185310 & JK2 Rear: # 1854102)
• Alpine IR Short Control Arm Kit - 8-Arm (2-4 Inch Lift) (# 1415611)
• HD Forged Adjustable Track Bar - Front (0-6 Inch Lift) (# 1753418)
• Rear Track Bar Axle Bracket Kit (2.5 Inch Lift) (# 1954776)
• Speedbump & Progressive Bump Stop Kit - Front & Rear (# 1958250)
• 10 Inch Front Sway Bar Quick Disconnect Kit (3-4 Inch Lift) (# 1753000)
• 12.25 Inch Rear Sway Bar Link Kit (3-4 Inch Lift) (# 1754500)
• Coil Spring Retainer Kit - Rear Upper (# 4951400)
• Coil Spring Retainer Kit - Rear Lower (# 4954300)
• Front Brake Line Anchor Kit (# 1101255)
• Rear Brake Line Relocation Kit (# 4304400)
• Exhaust Spacer Kit (# 2610000)
• All necessary hardware
• And more

Fitment:

• JK Wrangler (2-Door)

Specs:

• Lift Height: 3 Inch
• Max Tire Diameter: 35 Inch
