TeraFlex | 07-18 Wrangler JK 2 Door 6 Inch Alpine RT6 Long Arm Suspension System No Shocks TeraFlex | 1236000

TeraFlex Alpine RT (Rogue Trail) Suspension Systems build on our already capable Alpine CT (Cross-Trail) Suspension Systems. These systems include all our top-of-the-line components.

The granddaddy of all our kits, the TeraFlex 6 Inch Alpine RT6 Long Arm Suspension System is engineered to excel on the highway, off-road, through the desert, or rock crawling! If that sounds impossible, just remember it's a TeraFlex suspension system built on decades of research and development resulting in the ultimate suspension with a lifetime warranty. The Alpine RT6 includes our HD Drag Link Flip Kit w/ Front Track Bar Drop Bracket & Frame Brace Kit to correct steering geometry, eliminate front end shimmy, and reinforce the frame. The Alpine RT6 is the pinnacle of JK suspension systems!

Adjustable Alpine IR Long Control Arms balance front caster and pinion angles as well as optimize rear pinion angles, anti-squat geometry, and tire position on vehicles with 3-6 Inch Lifts. On higher lifts, Alpine Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during extreme droop as well as shock load transferred through the long control arms.

Alpine IR Control Arms feature our all-new Independent Rotation (IR) Bushings. These innovative bushings remove bushing bind during full suspension travel for less overall bushing load during articulation resulting in unrestricted droop as well as a noticeable ride improvement whether on the highway or the trail.

HD Forged Adjustable Track Bar(s) and Rear Track Bar Axle Bracket improve steering response, center the axles to optimize vehicle roll center, and reduce body roll for unsurpassed handling.

This results in improved suspension geometry for superior ride quality and performance regardless of terrain. TeraFlex suspension systems provide reduced noise, vibration, and harshness (NVH).

Alpine RT Suspension Systems are for the Jeeper who wants it all!

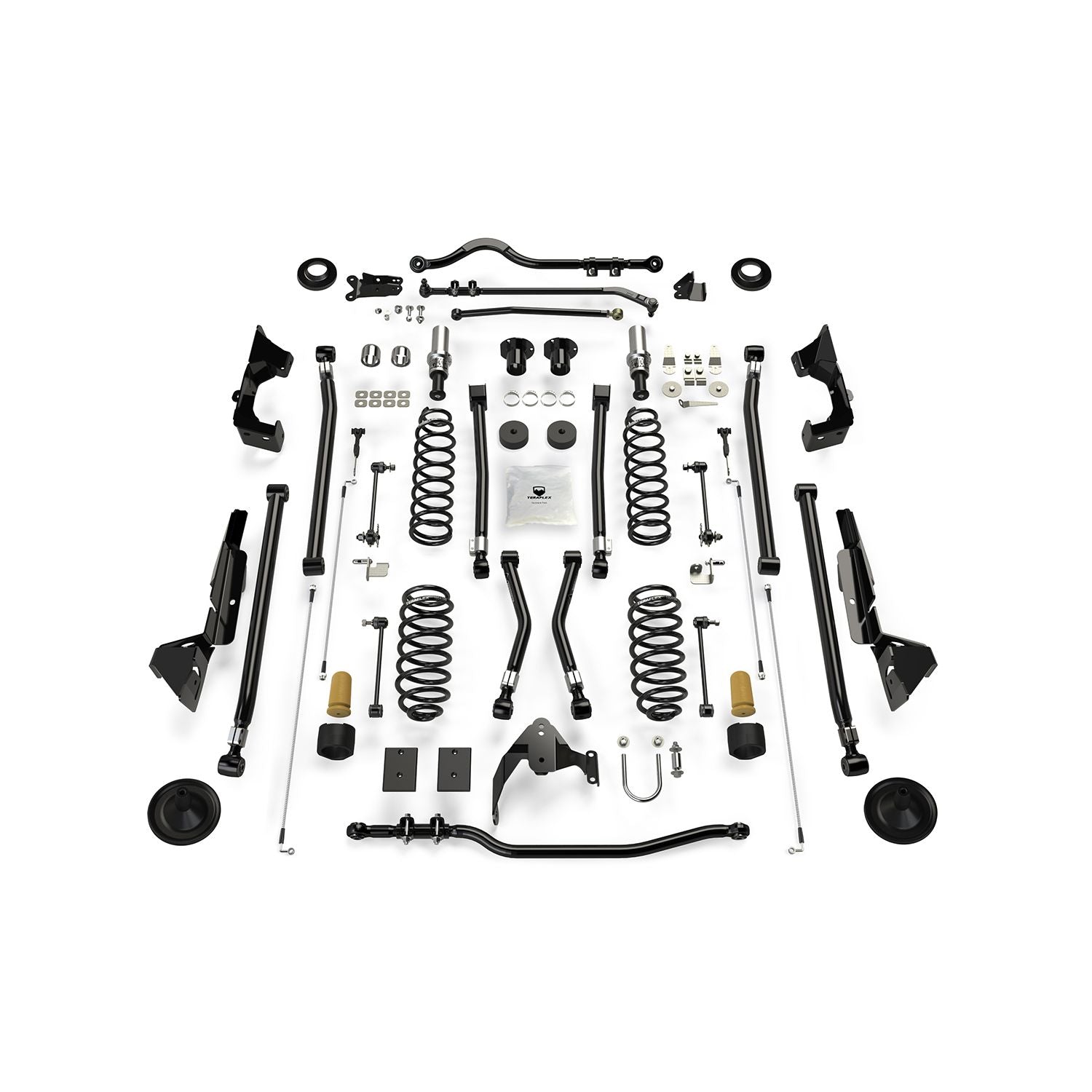

Includes:

• 6 Inch Lift Coil Spring Kits (JK2 Front: # 1853402 & JK2 Rear: # 1854402)
• 0.5 Inch Lift Coil Spring Spacers (Front x 2: 1953100 & Rear x 2: # 1954105)
• Alpine IR Long Control Arm & Bracket Kit - 8-Arm (3-6 Inch Lift) (# 1315011)
• HD Forged Adjustable Track Bar - Front (0-6 Inch Lift) (# 1753418)
• HD Forged Adjustable Track Bar - Rear (0-6 Inch Lift) (# 1754418)
• HD Drag Link Flip Kit w/ Front Track Bar Drop Bracket & Frame Brace Kit (# 1600450)
• Front Track Bar Bracket Gusset (# 4951800)
• Rear Track Bar Axle Bracket Kit (3-6 Inch Lift) (# 1954777)
• Speedbump & Progressive Bump Stop Kit - Front & Rear (# 1958250)
• 1.25 Inch SpeedBump Bump Stop Strike Pad Kit - Front Lower (# 1467125)
• 0.75 Inch SpeedBump Bump Stop Strike Pad Kit - Rear Lower (# 1954600)
• 12.25 Inch Front Sway Bar Quick Disconnect Kit (6 Inch Lift) (# 1756000)
• 14.75 Inch Rear Sway Bar Link Kit (6 Inch Lift) (# 1754410)
• 26 Inch Stainless-Steel Braided Brake Line Kit - Front (# 4353310)
• 30 Inch Stainless-Steel Braided Brake Line Kit - Rear (# 4350310)
• Front Brake Line Anchor Kit (# 1101355)
• Exhaust Spacer Kit (# 2610000)
• All necessary hardware
• And more

Fitment:

• JK Wrangler (2-Door)

Specs:

• Lift Height: 6 Inch
• Max Tire Diameter: 38 Inch
