TeraFlex | 07-18 Wrangler JK 4 Door 4 Inch Alpine RT4 Long Arm Suspension System No Shocks TeraFlex | 1334000

TeraFlex Alpine RT (Rogue Trail) Suspension Systems build on our already capable Alpine CT (Cross-Trail) Suspension Systems. These systems include all our top-of-the-line components.

The TeraFlex 4 Inch Alpine RT4 Long Arm Suspension System is developed for the off-roader craving trails and rocks as well as highway control in a no-compromise package. With its Alpine IR Long Control Arms & Brackets, this suspension system provides a completely new driving experience. Combined with the Front and Rear HD Adjustable Track Bars, the Alpine RT4 provides full suspension adjustability both on- and off-road!

Adjustable Alpine IR Long Control Arms balance front caster and pinion angles as well as optimize rear pinion angles, anti-squat geometry, and tire position on vehicles with 3-6 Inch Lifts. On higher lifts, Alpine Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during extreme droop as well as shock load transferred through the long control arms.

Alpine IR Control Arms feature our all-new Independent Rotation (IR) Bushings. These innovative bushings remove bushing bind during full suspension travel for less overall bushing load during articulation resulting in unrestricted droop as well as a noticeable ride improvement whether on the highway or the trail.

HD Forged Adjustable Track Bar(s) and Rear Track Bar Axle Bracket improve steering response, center the axles to optimize vehicle roll center, and reduce body roll for unsurpassed handling.

This results in improved suspension geometry for superior ride quality and performance regardless of terrain. TeraFlex suspension systems provide reduced noise, vibration, and harshness (NVH).

Alpine RT Suspension Systems are for the Jeeper who wants it all!

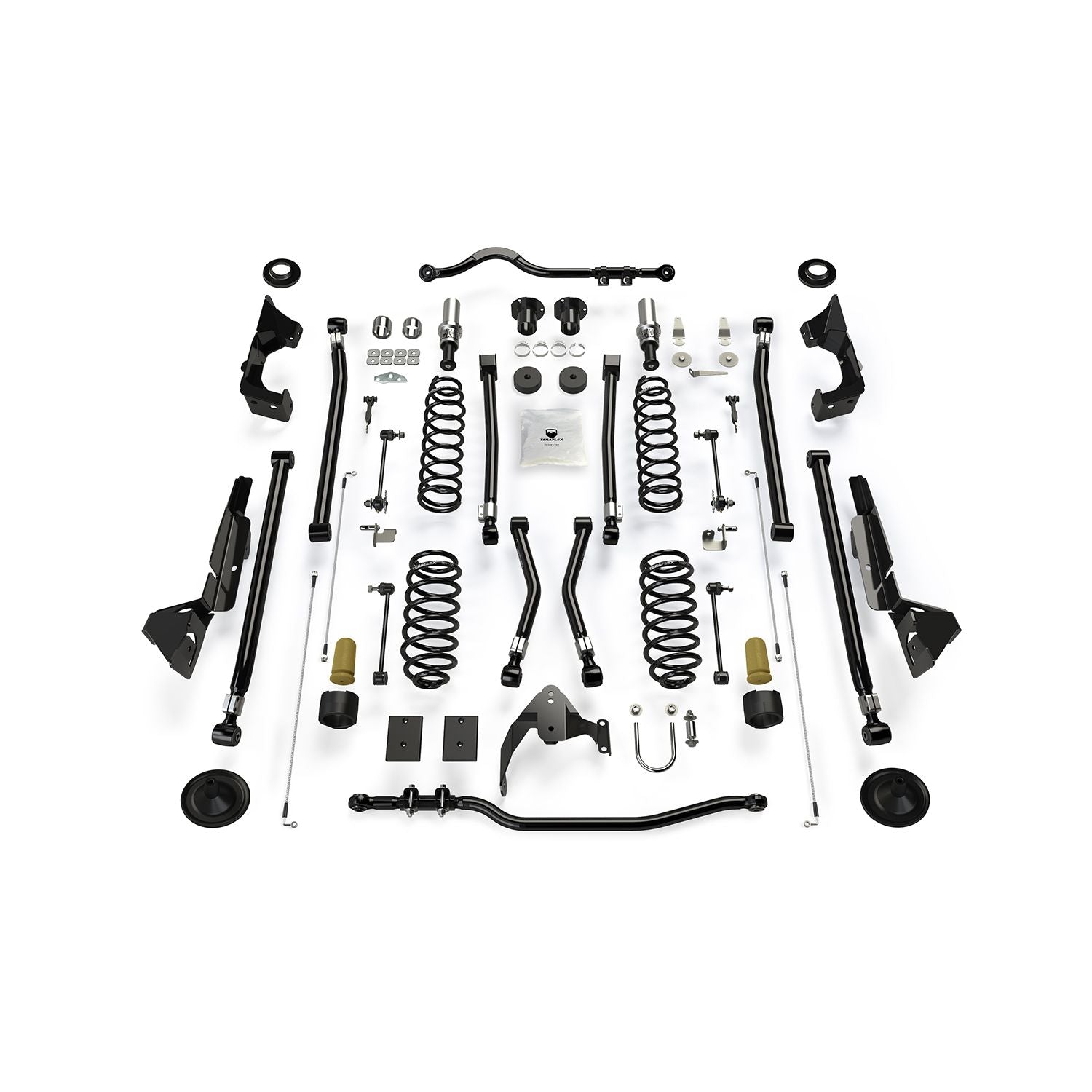

Includes:

• 4 Inch Lift Coil Spring Kits (JK4 Front: # 1853402 & JK4 Rear: # 1854402)
• 0.5 Inch Lift Coil Spring Spacers (Front x 2: 1953100 & Rear x 2: # 1954105)
• Alpine IR Long Control Arm & Bracket Kit - 8-Arm (3-6 Inch Lift) (# 1315011)
• HD Forged Adjustable Track Bar - Front (0-6 Inch Lift) (# 1753418)
• HD Forged Adjustable Track Bar - Rear (0-6 Inch Lift) (# 1754418)
• Front Track Bar Bracket Gusset (# 4951800)
• Rear Track Bar Axle Bracket Kit (3-6 Inch Lift) (# 1954777)
• Speedbump & Progressive Bump Stop Kit - Front & Rear (# 1958250)
• 1.25 Inch SpeedBump Bump Stop Strike Pad Kit - Front Lower (# 1467125)
• 0.75 Inch SpeedBump Bump Stop Strike Pad Kit - Rear Lower (x 3: # 1954600)
• 10 Inch Front Sway Bar Quick Disconnect Kit (3-4 Inch Lift) (# 1753000)
• 12.25 Inch Rear Sway Bar Link Kit (3-4 Inch Lift) (# 1754500)
• 26 Inch Stainless Steel Braided Brake Line Kit - Front (# 4353310)
• 30 Inch Stainless Steel Braided Brake Line Kit - Rear (# 4350310)
• Front Brake Line Anchor Kit (# 1101255)
• Exhaust Spacer Kit (# 2610000)
• All necessary hardware
• And more

Fitment:

• JK Wrangler Unlimited (4-Door)

Specs:

• Lift Height: 4 Inch
• Max Tire Diameter: 37 Inch
