TeraFlex | 07-18 Wrangler JK Alpine Long Arm & Bracket Kit 8-Arm 3-6 Inch Lift TeraFlex | 1315010

TeraFlex JK: Alpine Long Arms and Long Arm Brackets) provide complete alignment adjustability and dependability for maximum performance on JK Wrangler/Unlimited models with 3-6 Inch Lifts.
High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality.

CAD-engineered TeraFlex JK: Long Arm Brackets are designed for maximum strength. By streamlining the frame-end mounting points, we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance.

Can be added to any existing suspension lift.

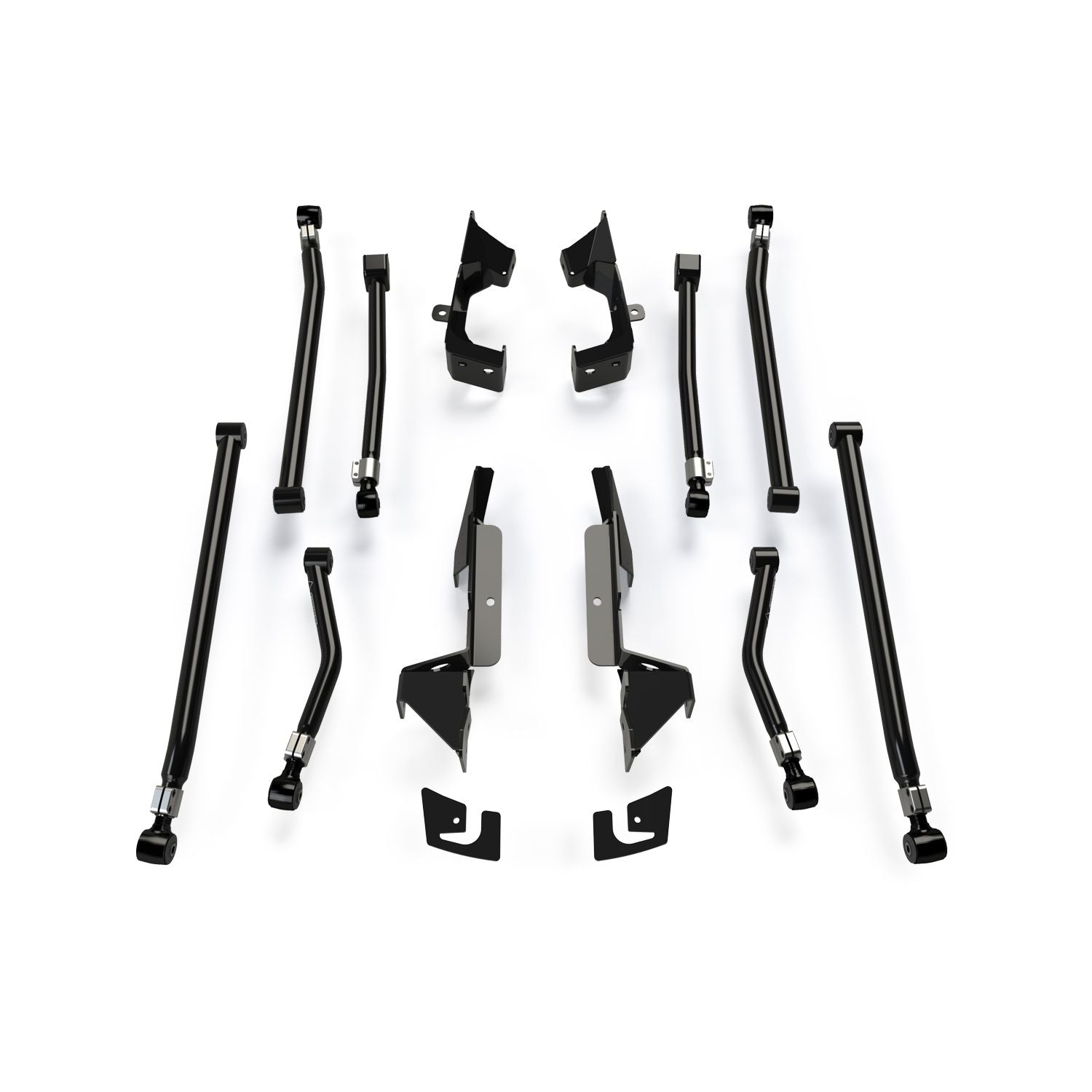

Includes:

• Alpine Long Arm Kit - 8-Arm (# 1315000):
  • Arm Pair - Front Upper (# 1315520)
  • Arm Pair - Front Lower (# 1315500)
  • Arm Pair - Rear Upper (# 1315560)
  • Arm Pair - Rear Lower (# 1315540)
• Long Arm Bracket Kit (# 1957000):
  • Brackets - Front
  • Brackets - Rear
  • Gussets - Rear
  • All necessary hardware

Fitment:

• JK Wrangler (2-door)
• JK Wrangler Unlimited (4-door)

Specs:

• Lift Height: 3-6 Inch

Control Arm Specs:

• JK: Alpine Long Arm Pair - Front Upper (# 1315520):
  • Tube Diameter & Wall: 42mm x 4mm
  • Factory Length: 18-3/4 Inch
  • Min. Length: 27-3/8 Inch
  • Max. Length: 28-7/8 Inch
  • Bolt - Axle: 12mm
  • Bolt - Frame: 14mm
  • Bushing - Axle: OEM
  • Bushing - Frame: 611013
• JK: Alpine Long Arm Pair - Front Lower (# 1315500):
  • Tube Diameter & Wall: 50mm x 5mm
  • Factory Length: 22-5/8 Inch
  • Min. Length: 33-3/4 Inch
  • Max. Length: 35-1/4 Inch
  • Bolt - Both: 14mm
  • Bushing - Both: 611011
• JK: Alpine Long Arm Pair - Rear Upper (# 1315560):
  • Tube Diameter & Wall: 42mm x 4mm
  • Factory Length: 17-7/16 Inch
  • Min. Length: 20 Inch
  • Max. Length: 21-1/2 Inch
  • Bolt - Both: 14mm
  • Bushing - Both: 611012
• JK: Alpine Long Arm Pair - Rear Lower (# 1315540):
  • Tube Diameter & Wall: 50mm x 5mm
  • Factory Length: 19-3/4 Inch
  • Min. Length: 35-3/4 Inch
  • Max. Length: 37-1/4 Inch
  • Bolt - Both: 14mm
  • Bushing - Both: 611011
