TeraFlex | 18-Up Wrangler JL 2 Door 3.5 Inch Alpine RT3 Short Arm Suspension System No Shocks TeraFlex | 1533200

TeraFlex Alpine RT (Rogue Trail) Suspension Systems build on our already capable Alpine CT (Cross-Trail) Suspension Systems. These systems include all our top-of-the-line components.
The 3.5 Inch suspension is one of our most popular and versatile systems. The Alpine RT3 Short Arm Suspension System's Alpine IR Short Control Arms sets the benchmark for short arm suspension systems. This kit includes Front and Rear HD Forged Adjustable Track Bars and Front and Rear Track Bar Brackets for maximum adjustability making them the perfect mix of performance and comfort.

Adjustable Alpine IR Short Control Arms balance front caster angle and pinion angles as well as optimize rear pinion angles, anti-squat geometry, and tire position on vehicles with 0-4.5 Inch Lifts.
Alpine IR Control Arms feature our Independent Rotation (IR) Bushings. These innovative bushings remove bushing bind during full suspension travel for less overall bushing load during articulation resulting in unrestricted droop as well as a noticeable ride improvement whether on the highway or the trail.

Front and Rear HD Forged Adjustable Track Bars and Front Lower and/or Rear Lower Track Bar Bracket(s) improve steering response, center the axles to optimize vehicle roll center, and reduce body roll for unsurpassed handling.

This results in improved suspension geometry and relaxed control arm angles for a superior ride quality and performance regardless of terrain. These systems restore front and rear roll axis angles to minimize brake dive and acceleration squat. TeraFlex suspension systems provide reduced noise, vibration, and harshness (NVH).

Alpine RT Suspension Systems are for the Jeeper who wants it all!

Does Not include shocks. We recommend Falcon Performance Shocks. Falcon shock absorbers and TeraFlex lift coil springs have been engineered together to improve both compression and rebound for optimal vehicle stability. Falcon shock absorbers and steering stabilizers available separately.

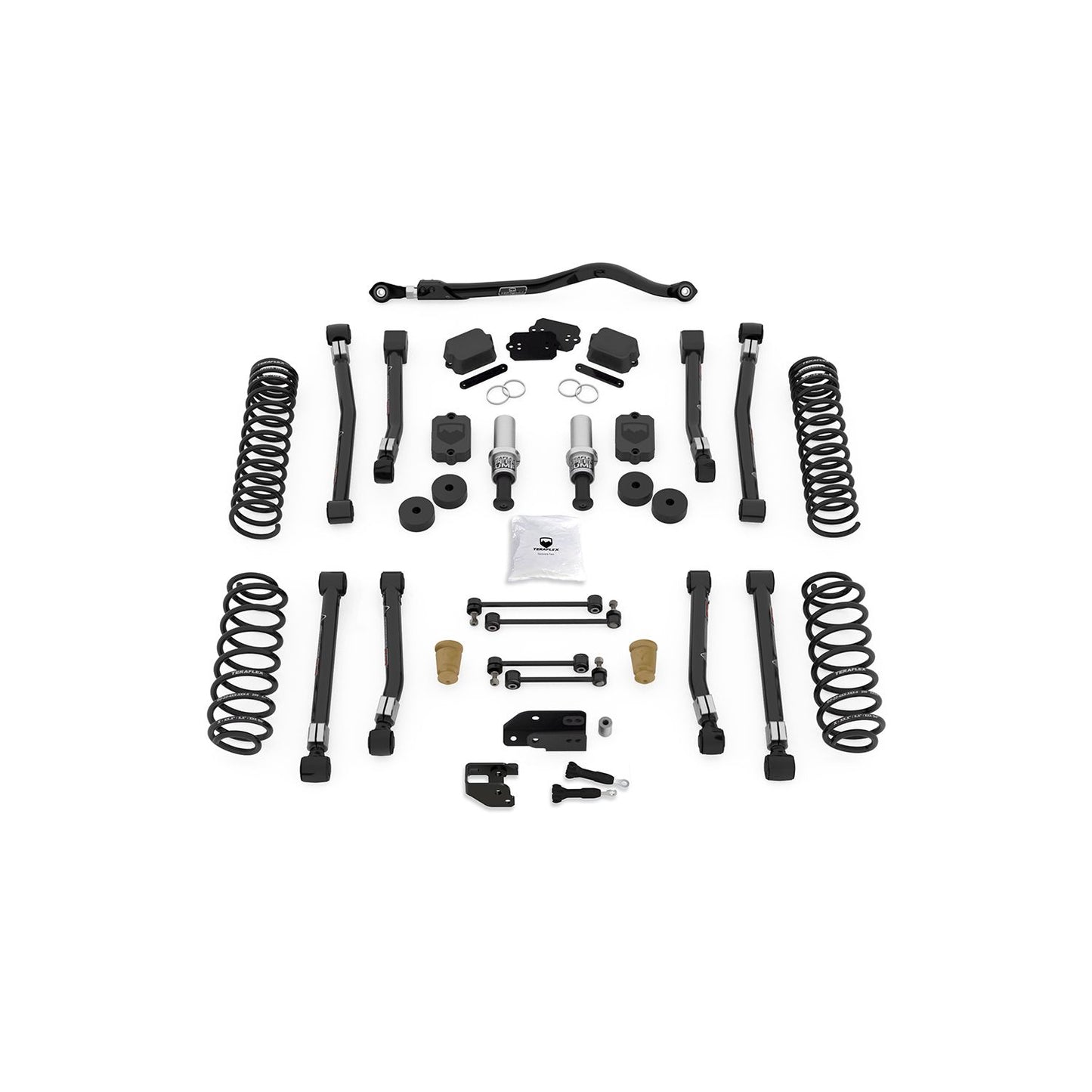

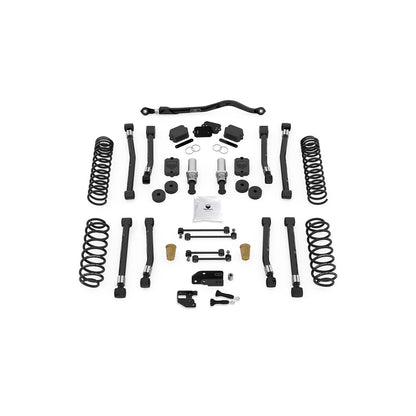

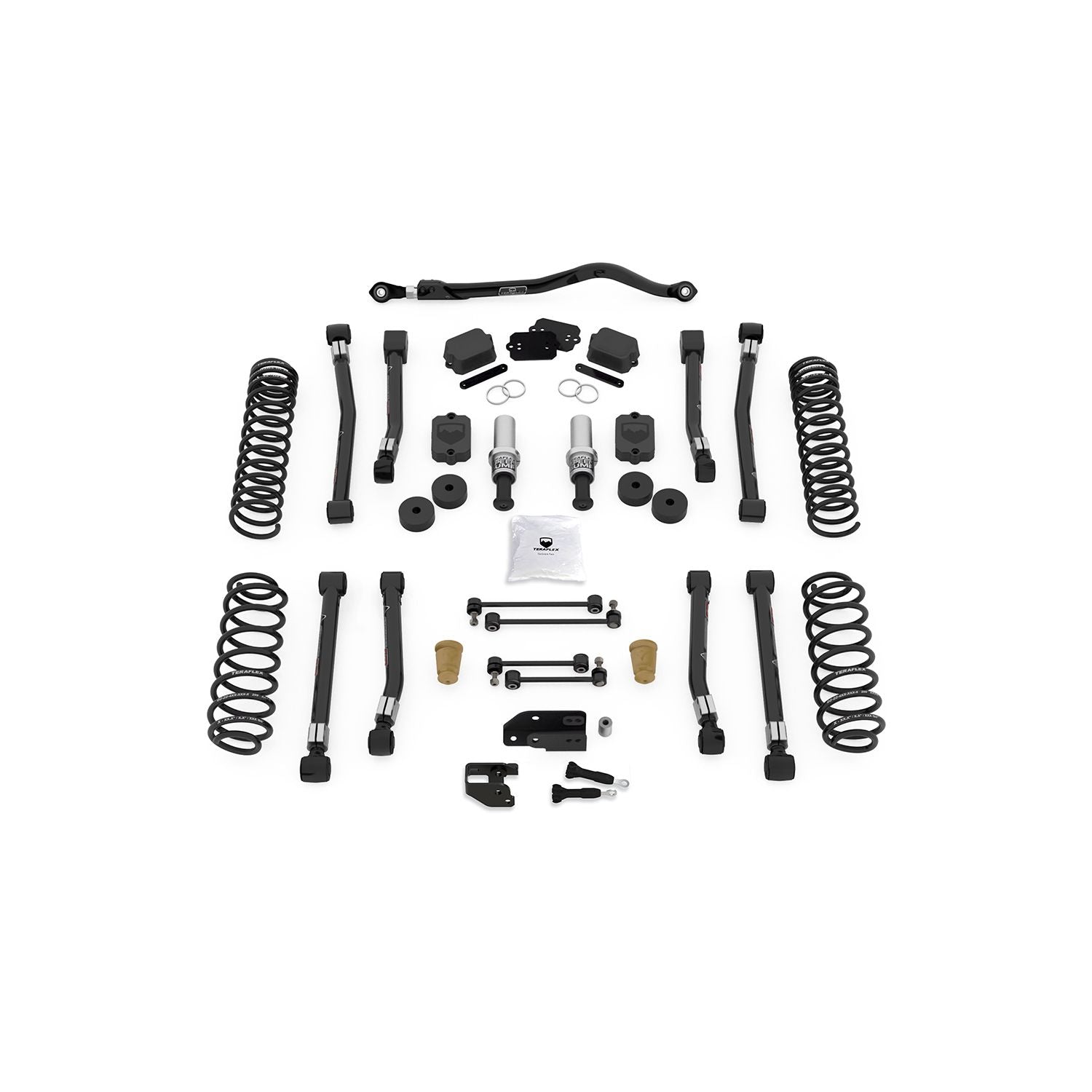

Includes:

• 3.5 Inch Lift Coil Spring Pair (JL2 Front: # 1863002) (JL2 Rear: # 1863102)
• Alpine IR Short Control Arm Kit - 8-Arm (0-4.5 Inch Lift) (# 1416510)
• HD Forged Adjustable Track Bar (0-6 Inch Lift) (Front: # 1753420) (Rear: # 1754420)
• Track Bar Bracket Kit (Front Lower 2.5-3.5 Inch Lift: # 1953250) (Rear Lower 2.5-4.5 Inch Lift: # 1953600)
• SpeedBump & Progressive Bump Stop Kit - Front & Rear (0-4.5 Inch Lift) (# 1958350)
• 2 Inch Bump Stop Strike Pad Extension Kit - Front & Rear (# 1959500)
• 0.5 Inch Bump Stop Strike Pad Shim Kit - Front & Rear (# 1959300)
• Front Sway Bar Quick Disconnect Kit (0-4.5 Inch Lift) (# 1764000)
• Sway Bar Link Kit - Rear (# 1764300)
• Brake Line Anchor Kit - Front (# 1101255)
• All necessary hardware
• And more

Fitment:

• JL Wrangler (2-door)

Specs:

• Lift Height: 3.5 Inch
• Max Tire Diameter:
  • Sport/Sahara Fenders: 35 Inch (w/ 3 Inch front & 2.5 Inch rear bump stops strike pad extensions/shims)
  • Rubicon Fenders: 35 Inch (w/ 2 Inch front & 2 Inch rear bump stops strike pad extensions)
  • Rubicon Fenders: 37 Inch (w/ 2.5 Inch front & 3 Inch rear bump stops strike pad extensions/shims)
