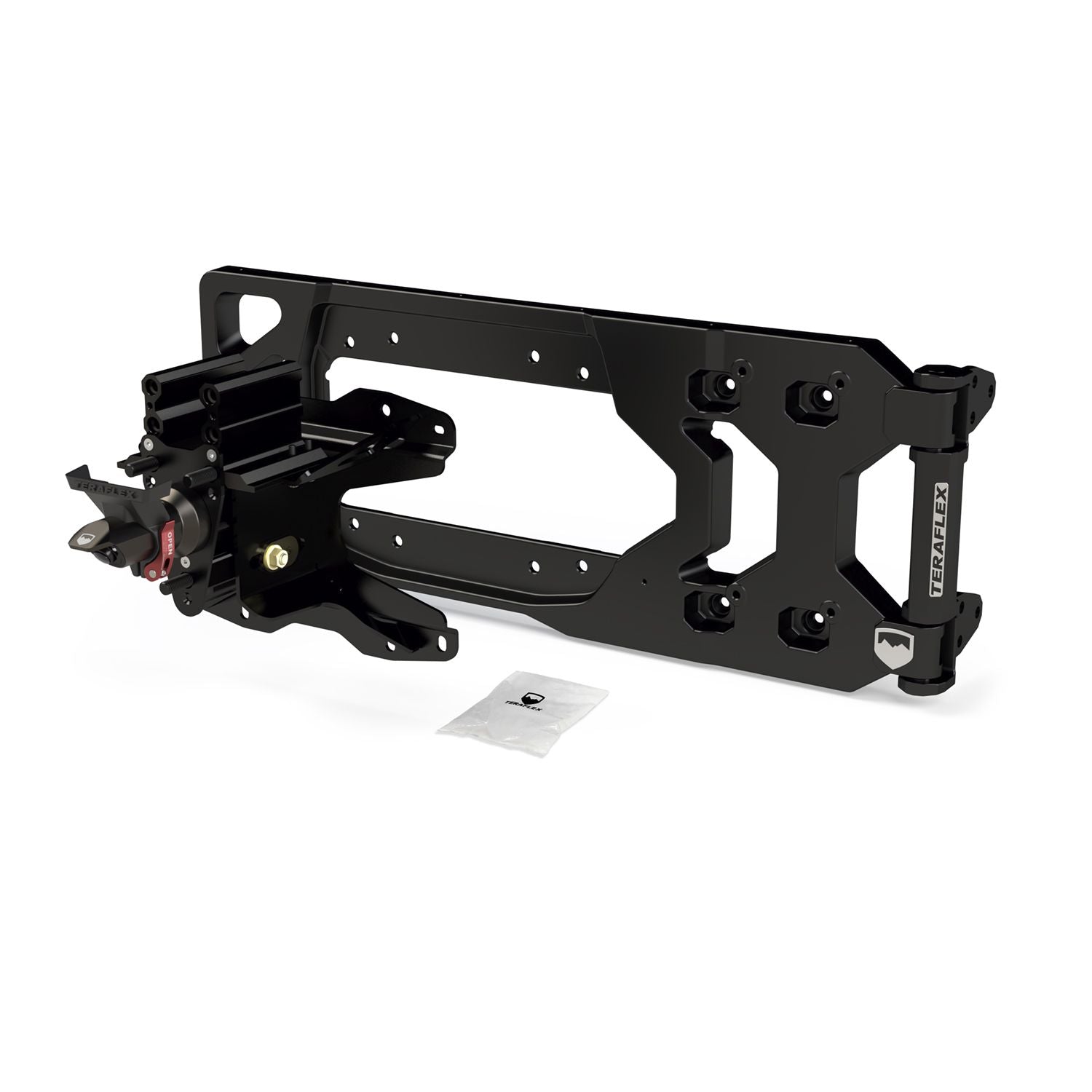

TeraFlex | 18-Up Wrangler JL Alpha HD Hinged Spare Tire Carrier & Adjustable Spare Tire Mount Kit 5x5 Inch TeraFlex | 4838920

Designed to accommodate up to a 40 Inch tire, the TeraFlex JL: Alpha HD Hinged Spare Tire Carrier and Alpha HD Adjustable Spare Tire Mount will secure your full-size spare tire over the most extreme trails and rugged terrain. It also provides easy access to the rear cargo area in one smooth action.
Alpha HD Hinged Spare Tire Carrier:
Using the factory tailgate hinge mounting points spreads the load of the spare tire over a larger area for maximum strength and durability. Internal gussets and bracing in the stock JL body supports the Alpha HD Hinged Spare Tire Carrier and oversized tire, which eliminates all stress from the tailgate.

Compared to the JK piece, the new JL: Alpha HD Hinged Spare Tire Carrier spans nearly the width of the tailgate for better weight distribution. Additionally, the updated design features a one-piece, forged steel hinge that ties the top and bottom factory hinge locations together as well as additional vertical braces for increased strength.

The Alpha HD Hinged Spare Tire Carrier also provides additional mounting points for off-road accessories such as a recovery jack and fluid containers. The adjustable Tire Carrier is constructed from strong and lightweight 6061-T6 extruded aluminum.
Alpha HD Adjustable Spare Tire Mount:
Although the Alpha HD Adjustable Spare Tire Mount can be used alone, it has been designed to be installed in conjunction with the Alpha HD Hinged Spare Tire Carrier. The Tire Mount can support the additional weight of a full-size spare tire by securely mounting the tire to the Tire Carrier and tailgate.

Complete adjustability includes vertical as well as fore and aft adjustments.

The Alpha HD Adjustable Spare Tire Mount Kit includes a quick-release 3rd Brake Light Mount and billet aluminum Rearview Camera Mount. The heavily gusseted Tire Mount is formed and welded from CNC laser cut steel for superior strength.
Includes:

• Alpha HD Hinged Spare Tire Carrier Kit (# 4838900):
• Alpha HD Hinged Spare Tire Carrier
• All necessary hardware
• Alpha HD Adjustable Spare Tire Mount Kit (5x5 Inch) (# 4838910):
• Alpha HD Adjustable Spare Tire Mount (5x5 Inch)
• Quick-Release 3rd Brake Light Mount
• Billet Aluminum Rearview Camera Mount
• All necessary hardware

Fitment Vehicle(s):

• JL Wrangler (2-door)
• JL Wrangler Unlimited (4-door)

Specs:

• Max Tire: 40 Inch
• Wheel Pattern: 5x5 Inch
