TeraFlex | 20-Up Jeep Gladiator 4.5 Inch Alpine CT4 Long Arm Extended-Travel Suspension System No Shocks TeraFlex | 2024020

TeraFlex Alpine CT (Cross-Trail) Suspension Systems build on our Sport ST (Street & Trail) Suspension Systems.

The 4.5 Inch Alpine CT4 Long Arm Extended-Travel Suspension System is engineered for the enthusiast who demands an off-road capable suspension with maximum adjustability, flex, durability, and quiet performance. This all-inclusive system includes everything from our industry leading adjustable Alpine Long Arms & Brackets to our exclusive rear Extended-Travel System.

The Alpine CT4 is designed to flex and droop over boulders and fly across flats like nothing you have ever experienced.

And like all TeraFlex lifts, the highway manners of the CT4 are legendary.

Adjustable Alpine Long Arms balance front caster angle and pinion angles as well as optimize rear pinion angles, anti-squat geometry, and tire position on vehicles with 3-6 Inch Lifts. On higher lifts, Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during extreme droop as well as shock load transferred through the Long Control Arms.

The Front HD Forged Adjustable Track Bar and Track Bar Brackets improve steering response, center the axles to optimize vehicle roll center, and reduce body roll for unsurpassed handling.

Extended-Travel Suspension Systems include carefully selected components to safely provide 16 Inch of rear suspension travel.

This results in improved suspension geometry and relaxed control arm angles for a superior ride quality and performance regardless of terrain. These systems restore front and rear roll axis angles to minimize brake dive and acceleration squat.

TeraFlex suspension systems provide reduced noise, vibration, and harshness (NVH).

Alpine CT Suspension Systems are engineered for hardcore Jeeping without sacrificing weekday ride comfort!

Does Not include shocks. We recommend Falcon Performance Shocks. Falcon shock absorbers and steering stabilizers available separately.

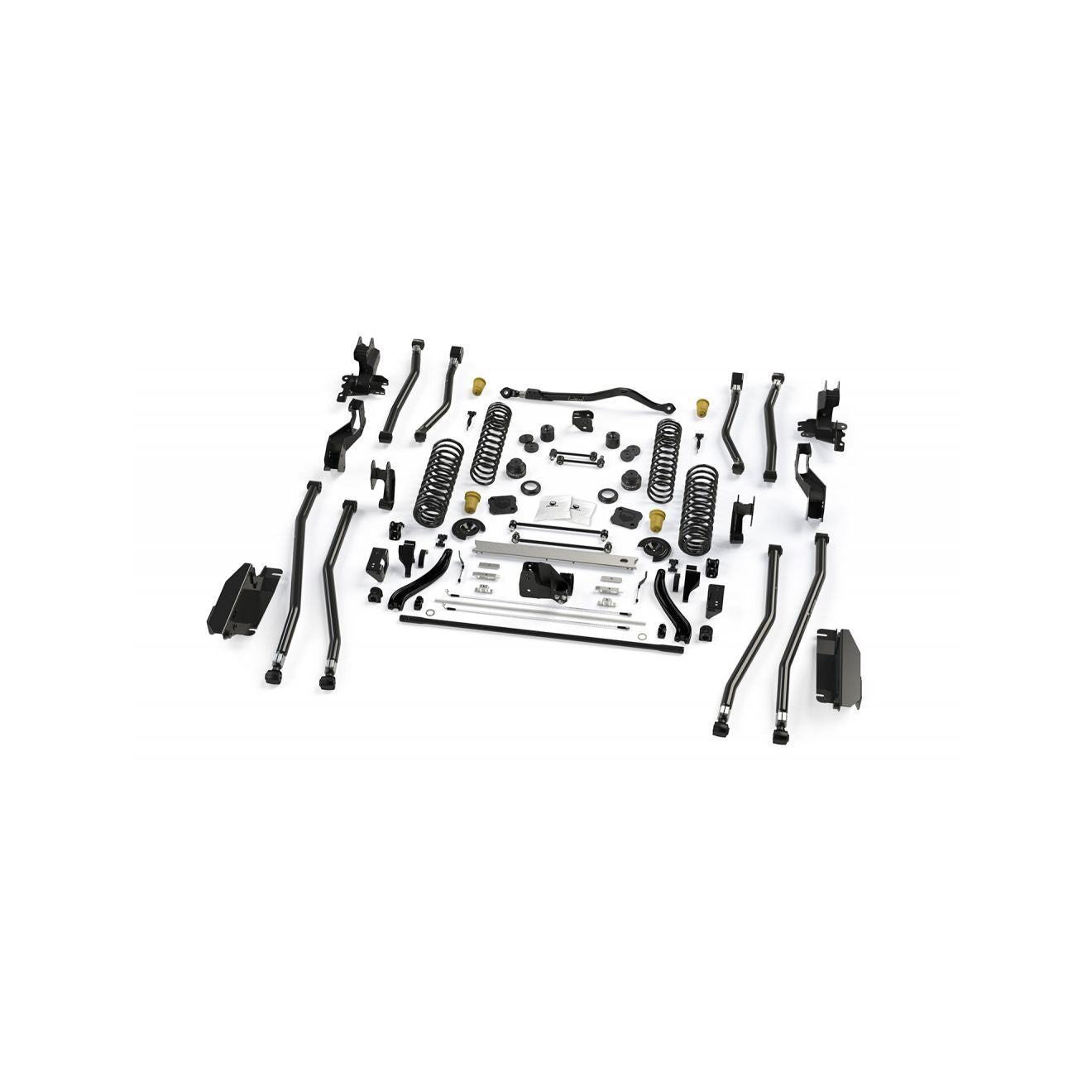

Includes:

• 4.5 Inch Lift Coil Spring Pair (Front: # 1874300) (Rear: # 1874400)
• Alpine Long Arm & Bracket Kit w/ Crossmember - 8-Arm (3-6 Inch Lift) (# 1317010)
• HD Forged Adjustable Track Bar - Front (0-6 Inch Lift) (# 1753420)
• Track Bar Bracket Kit (Front Lower 4.5 Inch Lift: # 1953500) (Rear Lower 0-6.5 Inch Lift: # 1963600)
• Progressive Bump Stop Kit - Front & Rear (0-4.5 Inch Lift) (# 1969200)
• 2 Inch Bump Stop Strike Pad Extension - Front Lower (# 12-01-109-200) x 2
• 0.5 Inch Bump Stop Strike Pad Shim - Front Lower (# 12-02-109-050) x 4
• 1.5 Inch Bump Stop Extension Kit - Rear Upper (# 1969300) x 2
• 0.5 Inch Bump Stop Shim Kit - Rear Upper (# 1969400)
• 0.5 Inch Bump Stop Strike Pad Shim Kit - Rear Lower (# 1969100)
• Front Sway Bar Quick Disconnect Kit (0-4.5 Inch Lift) (# 1764000)
• Forged ST Sway Bar Kit - Rear (2 Inch+ Lift) (# 1774700)
• 1.5 Inch Driveshaft Lowering Kit - Rear (# 4801000)
• Extended-Travel Accessory Kit - Rear (3.5 Inch+ Lift) (# 4834100)
• Coil Spring Retainer Kit - Rear Upper & Rear Lower (# 4954000)
• Brake Line Anchor Kit (Front: # 1101255) (Rear: # 1101455)
• All necessary hardware
• And more

Fitment Vehicle(s):

• JT Gladiator (pickup)

Specs:

• Lift Height: 4.5 Inch
• Max Tire Diameter:
• Sport/Overland Fenders: 33 Inch (w/ 2 Inch front and 1 Inch rear bump stops/strike pad extensions/shims)
• Sport/Overland Fenders: 35 Inch (w/ 3 Inch front and 2.5 Inch rear bump stops/strike pad extensions/shims)
• Sport/Overland Fenders: 37 Inch (w/ 4 Inch front and 3.5 Inch rear bump stops/strike pad extensions/shims)
• Rubicon/Mojave Fenders: 35 Inch (w/ 2 Inch front and 1 Inch rear bump stops/strike pad extensions/shims)
• Rubicon/Mojave Fenders: 37 Inch (w/ 2 Inch front and 2.5 Inch rear bump stops/strike pad extensions/shims)
• Rubicon/Mojave Fenders: 39 Inch (w/ 4 Inch front and 3 Inch rear bump stops/strike pad extensions/shims)
