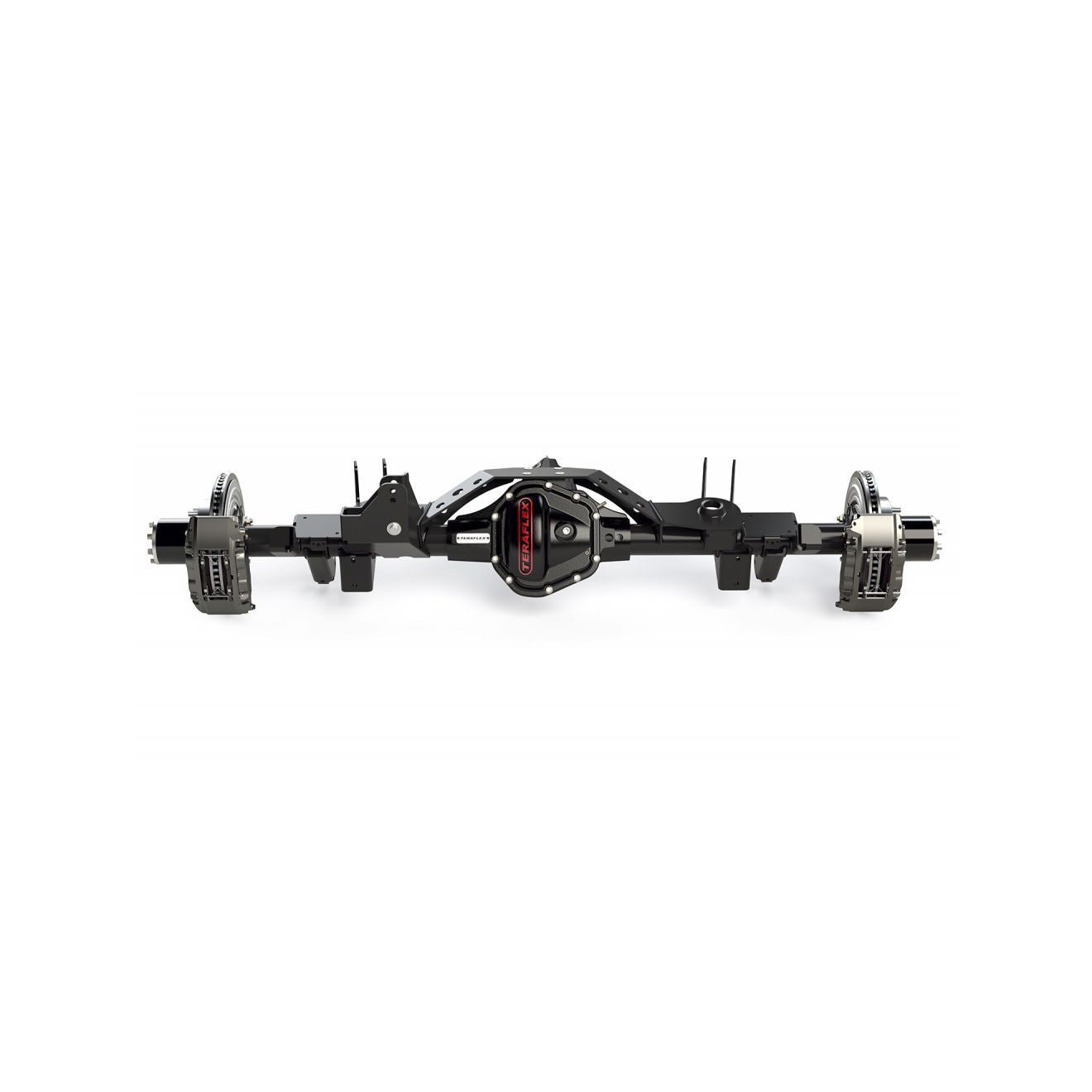

TeraFlex | 20-Up Jeep Gladiator 70 Inch TeraCRD60 HD Rear Axle w/ Full-Float & 5.38 Ratio R&P & ARB Locker 0-6 Inch Lift TeraFlex | 4006538

The complete Tera CRD60 HD Rear Axle Assembly w/ Full-Float provides a choice of pre-installed Super 60 ring & pinion gears, ARB air locker, and full-float outer axles as well as inner axle shafts, and sensors.

TeraFlex Tera CRD60 HD Rear Axle Housings are perfect for replacing bent, broken, or damaged axles in JT Gladiator vehicles including Rubicon models. Can also be used as a direct bolt-on upgrade for Jeep owners looking to beef up the stock axles' weak areas.

The exclusive Constant Radius Design (CRD) provides high ground clearance that is unaffected by pinion angle adjustments.

Compatible with all Super 60 gear ratios for extreme duty applications requiring additional ring & pinion strength.

Our heavy-duty axle housings feature smooth profile surfaces, axle tubes, all necessary mount brackets, control arm bushings, and more!

Includes:

• ARB Air Locker
• Spicer Super 60 ring & pinion
• Spicer bearings and install kits
• Full-Float axles
• 35-spline inner axle shafts
• 35-spline outer stub shafts
• 1350 series pinion yoke
• Delta Brake Kit - Rear
• Dana 60 / Tera CRD60: Differential Cover Kit (# 3990660)

Fitment:

• JT Gladiator (pickup)
• 0-6 Inch Lift

Specs:

• WMS-WMS: 70 Inch
• Axle Tube: 3.25 Inch x 0.375 Inch
• Wheel Bolt Pattern: 8x6.5 Inch
• Gear Ratio: 5.38
