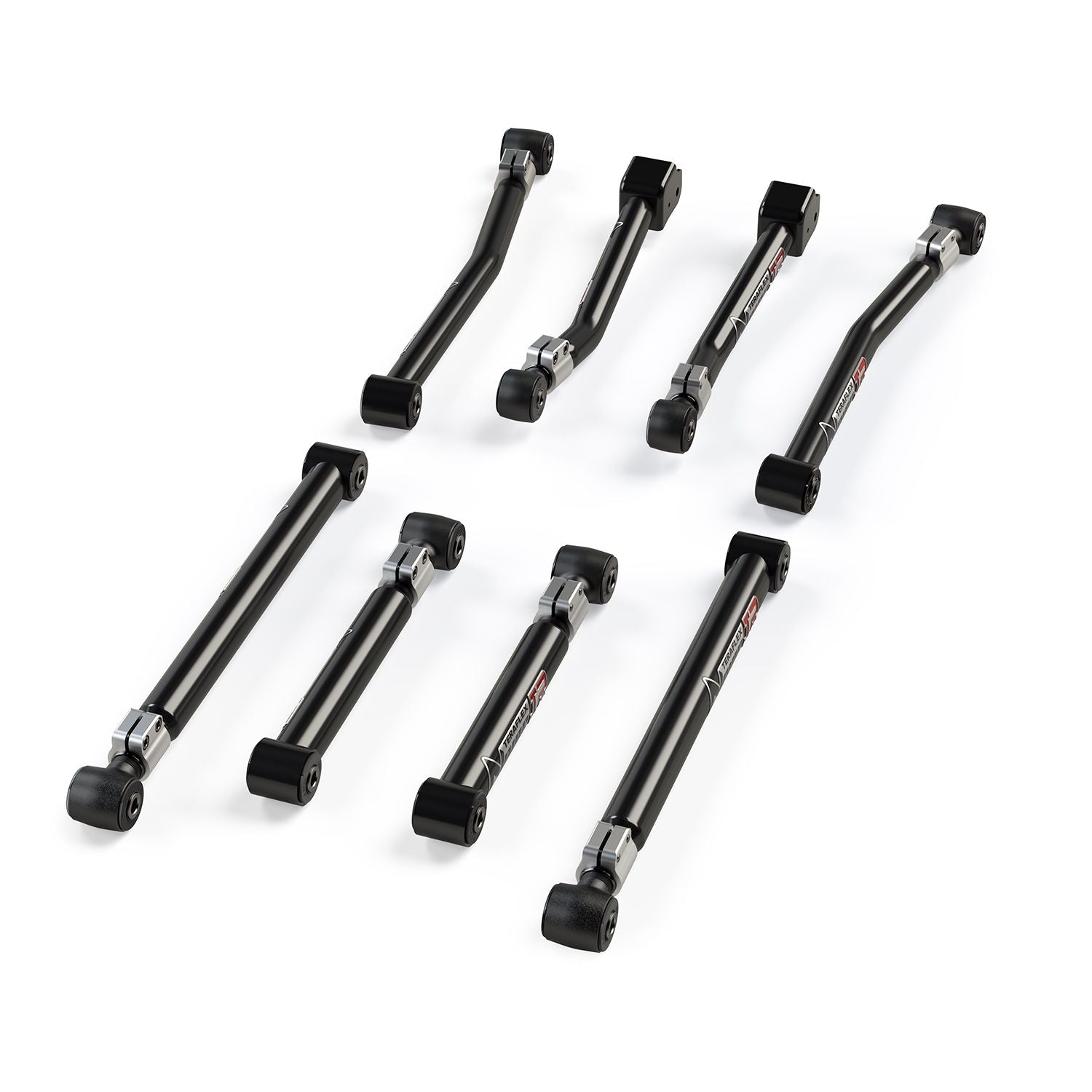

TeraFlex | 20-Up Jeep Gladiator Alpine IR Short Arm Kit 8-Arm 0-4.5 Inch Lift TeraFlex | 1417550

TeraFlex JT: Alpine IR Short Arms provide complete alignment adjustability and dependability for maximum performance on JT Gladiator models with 0-4.5 Inch Lifts. Bolts to the factory control arm mounting brackets.

Our innovative, maintenance-free IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping to improve on- and off-road ride quality and performance. Can be added to any existing suspension lift.
Includes:

• Alpine IR Short Arm Pairs:
  • Arm Pair - Front Upper (# 1416530)
  • Arm Pair - Front Lower (# 1416550)
  • Arm Pair - Rear Upper (# 1417580)
  • Arm Pair - Rear Lower (# 1417590)

Fitment:

• JT Gladiator (pickup)

Specs:

• Lift Height: 0-4.5 Inch

Control Arm Specs:

• JL / JT: Alpine IR Short Arm Pair - Front Upper (# 1416530):
  • Tube Diameter & Wall: 42mm x 4mm
  • Factory Length: 20.185 Inch
  • Min. Length: 20 Inch
  • Max. Length: 21 Inch
  • Bolt - Both: 12mm
  • IR Bushing - Axle: # 611018
  • IR Bushing - Frame: # 611017
• JL / JT: Alpine IR Short Arm Pair - Front Lower (# 1416550):
  • Tube Diameter & Wall: 42mm x 4mm
  • Factory Length: 24 Inch
  • Min. Length: 24 Inch
  • Max. Length: 25-1/4 Inch
  • Bolt - Both: 16mm
  • IR Bushing - Both: # 611020
• JT: Alpine IR Short Arm Pair - Rear Upper (# 1417580):
  • Tube Diameter & Wall: 42mm x 4mm
  • Factory Length: 16-3/8 Inch
  • Min. Length: 16-1/8 Inch
  • Max. Length: 17-3/8 Inch
  • Bolt - Both: 16mm
  • IR Bushing - Both: # 611020
• JT: Alpine IR Short Arm Pair - Rear Lower (# 1417590):
  • Tube Diameter & Wall: 42mm x 4mm
  • Factory Length: 23-3/4 Inch
  • Min. Length: 23-1/2 Inch
  • Max. Length: 24-3/4 Inch
  • Bolt - Both: 16mm
  • IR Bushing - Both: # 611020
