ZONE OFFROAD | 07-13 Chevy 1500 2WD 3.5 Inch Lift Kit With Nitro Shocks UCA Zone Offroad | ZONC30N

This lift kit is built around heavy-duty replacement upper control arms that dwarf the factory components and provide a significantly improved range of motion. These upgraded UCA's are made from fully welded, 1/8 Inch steel plate and CNC-machined ball joint and bushing mounts.

The high-quality MOOG ball joints can handle heavy-duty use, and they work in conjunction with stock-style rubber mount bushings to provide a quiet ride. A fully integrated front differential drop and differential skid plate system relocates the differential for optimal driveline angles.

Strut spacers provide a full 3.5 Inch of lift and install easily on the factory struts without the need of a strut compressor. A rear 3 Inch block and U-bolt system nets 2 Inch of rear lift and provides an athletic level vehicle stance
Quick Specs:

• Front Lift Height 3.5 Inch
• Front Lift Method Upper Control Arms
• Rear Lift Method Block Kit
• Lift Type Lift Kit
• Wheel Size 17 x 9
• Back Spacing 5 Inch
• Max Tire Size 285 / 70
• Finish Powdercoat

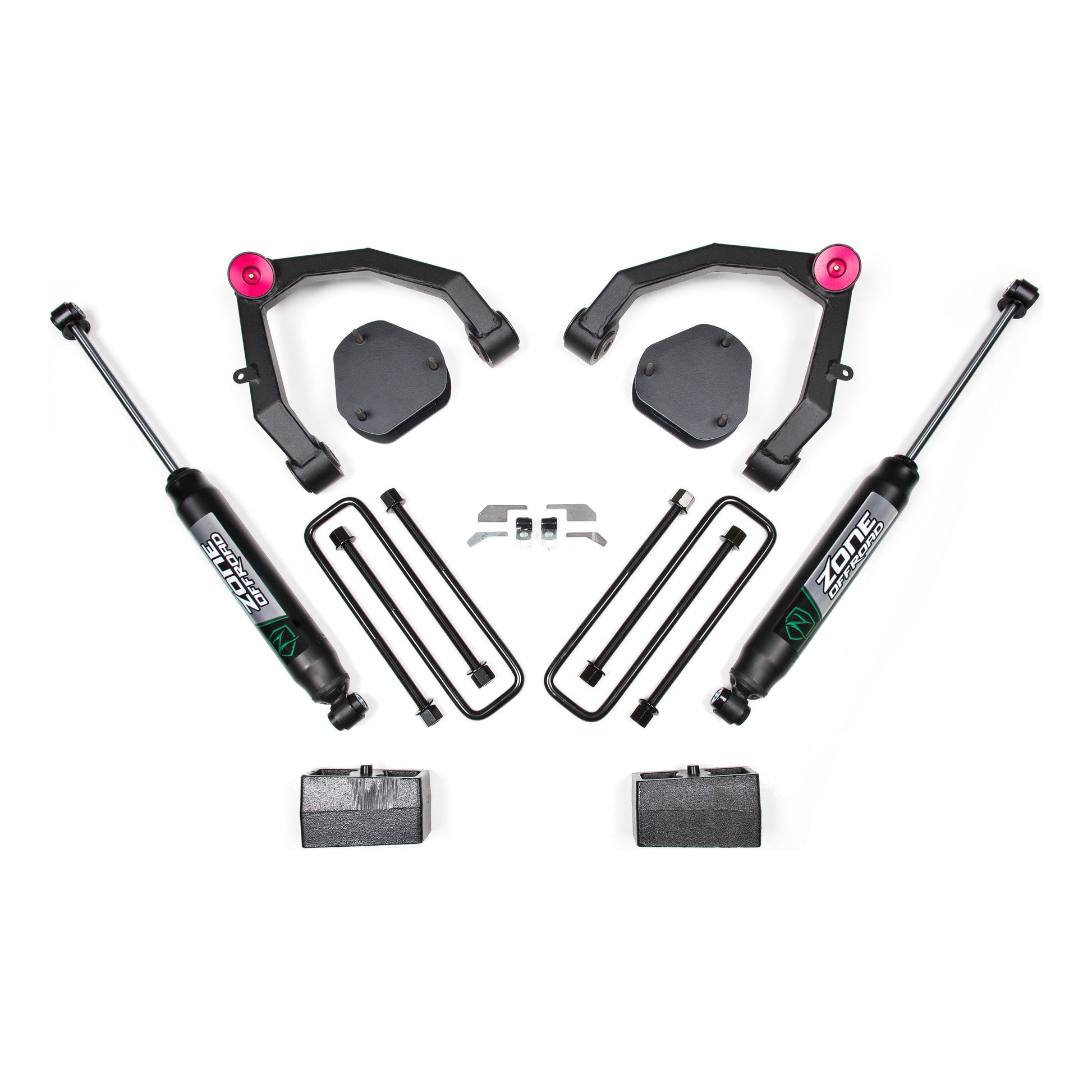

In The Box:

• Strut Spacer - Front
• Lift Blocks - Rear
• Upper Control Arms

Features:

• Fully welded, heavy duty upper control arms that dwarf the factory arms.
• CNC-machined UCA bushing and ball joint cups.
• OE rubber bushings and greasable factory style ball joints for quiet, reliable, and low maintenance operation.
• Improved UCA range of motion compared to stock arms
• UCAs utilize replaceable ball joints

Kit Components:

• ZON7719 Nitro- 26.20 x 15.65 x 2-3/8 EB1/EB1 2 711745595613
• ZONC1309 2007-2013 Chevy/GMC 3 Inch Rear Block Kit 1 711745596627
• ZONC2351 07-13 Chevy 1500 2WD 3.5 Inch Box Kit 1 711745596832
