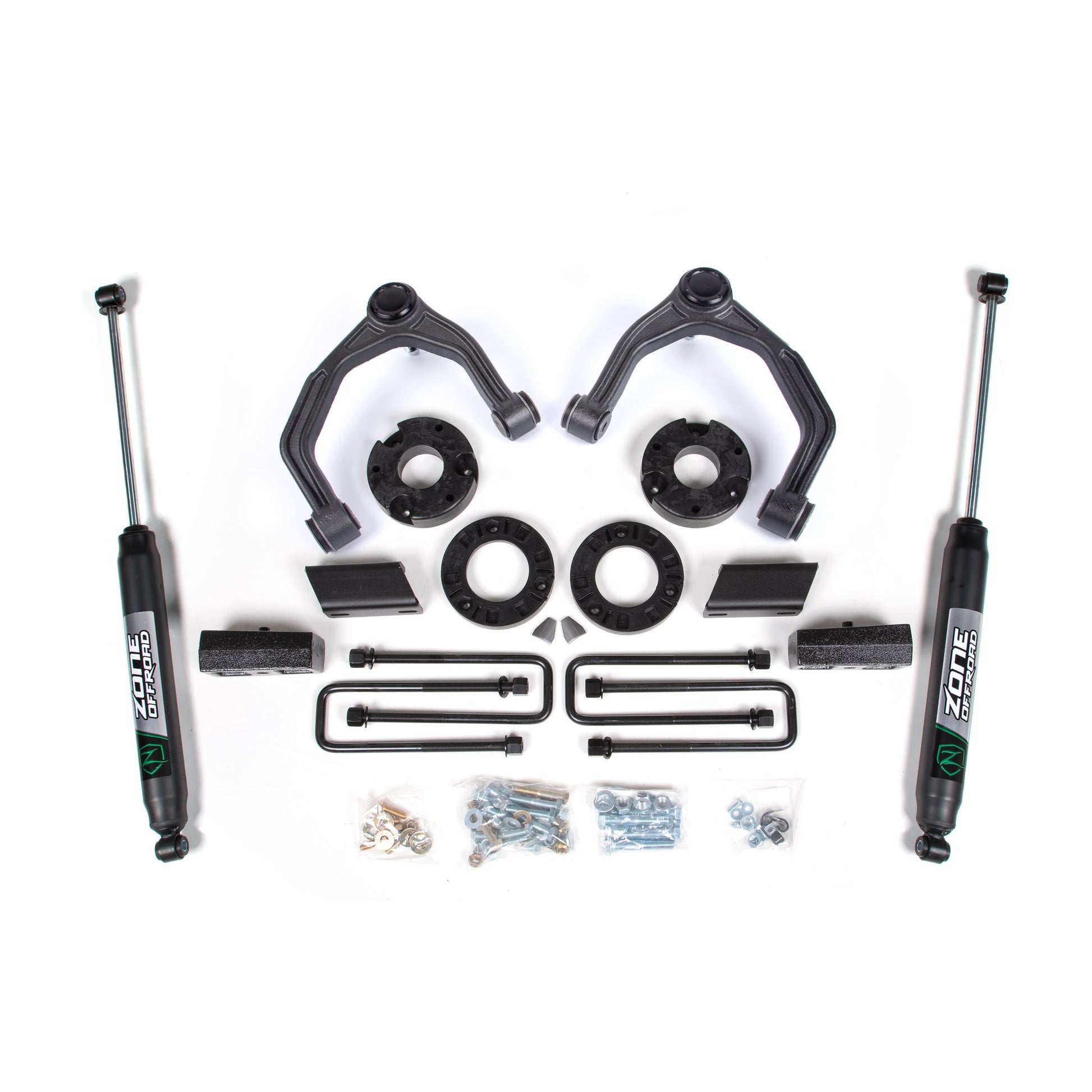

Zone Offroad 3.5 Inch Lift Kit I ZONC47N

More than a leveling kit, this 3.5" Adventure Series kit takes advantage of Adventure Series upper control arms to offer improved performance and off-road capability with clearance for up to 35" tires. These high strength UCAs allow for increased suspension travel, improved strength and durability, and easy maintenance. Lift is provided by a 2-piece, combination top-mount and preload strut spacers design to provide a full 3.5" of lift without overextending the suspension at full droop (as is the case with kits using just a top mounted spacer). Optional weld-in steering stops are supplied allowing clearance for up to 35" tires. In the rear of this kit, a cast 2" lift block lifts and levels.
Features & Benefits
High strength UCAs are cast, ductile iron and specially designed with an indexed ball joint cup to correct ball joint operating angle for more suspension travel.
Utilizes a combination top-mount and preload strut spacers to correctly lift vehicle.
Retain factory ride quality without over extending suspension/drivelines at full suspension droop.
Maintains ride and handling characteristics with clearance for larger tires.
2" rear lift blocks and heavy duty u-bolts to level the stance.
Nitro series gas or FOX 2.0 adventure series gas shocks to improve performance.
Optional Steering Stops included for larger wheel/tire combinations.
Recommended Tires & Wheels
(Trimming may be required)
(Chevy) 37 x 12.5 with
20 x 9 and
5.5 in. Backspace
(GMC) 35 x 12.5 with
and
in. Backspace Works on Gas and Diesel Models.
All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper.
Do not exceed wheel backspacing of 5.5" as it will cause clearance issues with UCA.
Minor cutting of the factory droop limiter required to allow for the increased travel of replacement Upper Control Arms.
Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition.
Will NOT fit Denali and High Country models with Adaptive Ride Control (ARC).
Will NOT fit Trail Boss/ AT4 models.
This kit has not been test fitted on Silverado ZR2 or Sierra AT4X models at this time.
Will NOT fit models with a single leaf spring (mono-leaf) rear suspension.
2022 Models: This system has not been tested on models equipped with Super Cruise.
