ZONE OFFROAD | 4.5 Inch Lift Kit Diesel I ZOND135F

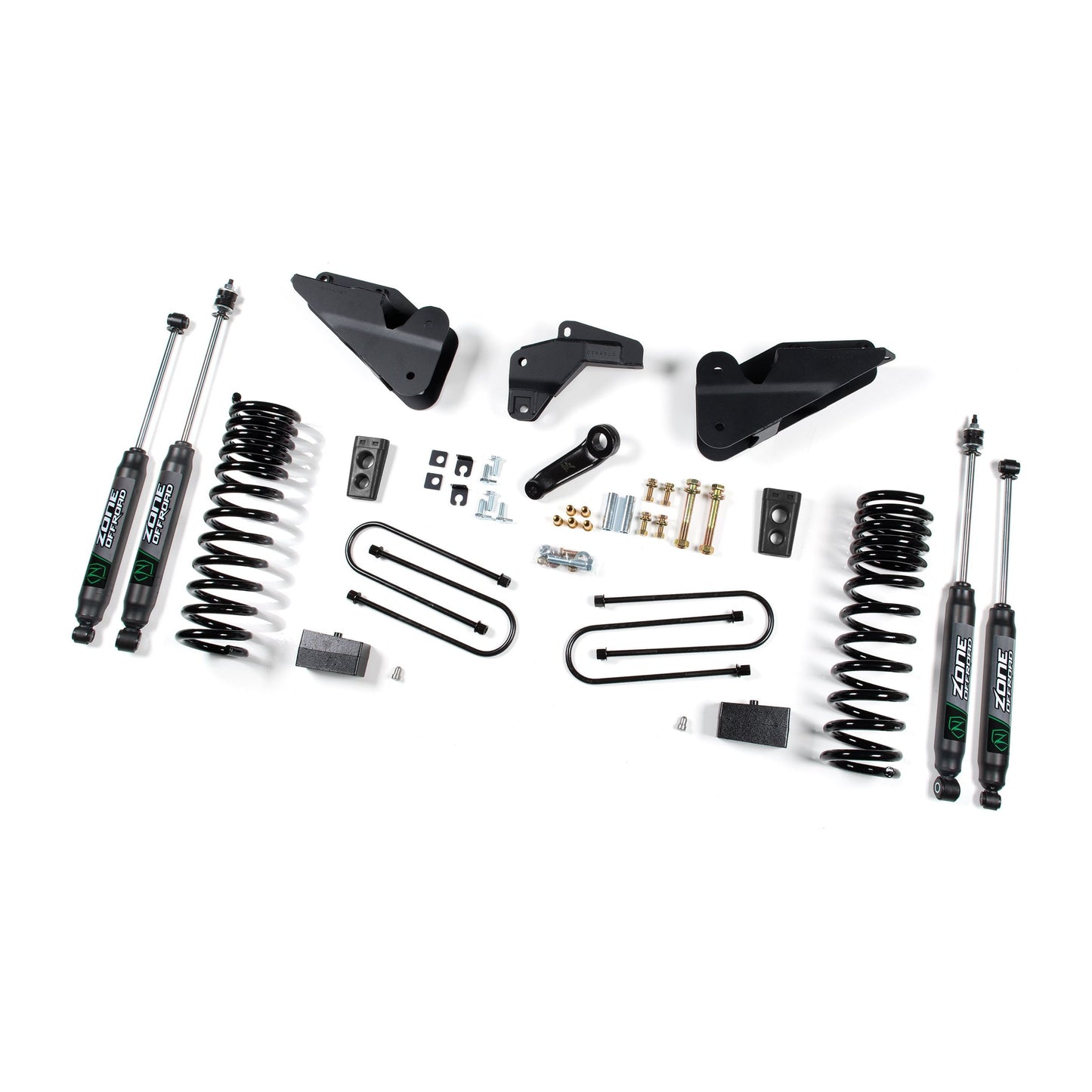

Take your RAM 3500 to new heights with this 4.5" lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arm relocation brackets to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.
Features & Benefits
Corrects suspension, steering, and drive-line geometry for great on-road handling and improved off-road performance.
Full length replacement coil springs add additional ride height while maintaining ride quality.
High-strength control arm relocation brackets correct suspension geometry and add rigidity.
Recommended Tires & Wheels
(Trimming may be required)
37 x 12.5 with
20 x 9 and
5.75 in. Backspace
37 x 12.5 with
17 x 9 and
5.75 in. Backspace
35 x 12.5 with
17 x 9 and
4.5 in. Backspace Fits trucks equipped with the 6.4L gas engines.
Front drive-line vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit.
Models with a 6 bolt transfer case use part # D5623. Models with an 8 bolt transfer case use part #D5813.
Does NOT work for models with factory rear airbag suspension.
Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
6.4L Gas models will require exhaust modification to clear the front driveshaft. 5.7L Gas models may require modification
Factory wheels fit when paired with factory / original equipment tire size.
This kit is not designed for dually models, but may me easily adapted to accommodate your truck.
