ZONE OFFROAD | 19-24 RAM 2500 4.5 Inch Radius Arm Bracket Diesel 6-Bolt T-Case Nitro Shocks Zone Offroad | ZOND76N

Zone Offroad adds to its lineup of suspension upgrades for the 2019+ RAM 2500 4WD trucks with new 4-4.5 Inch standard lift kits engineered for better on-road and offroad performance.

Designed to lift and level the stance, these new 4-4.5 Inch systems add strength to your RAM with high strength radius arm drop brackets, progressive rate coil springs, gas shocks and more allowing clearance for up to 37 Inch tires.

As with all Zone Offroad kits these new 4-4.5 Inch standard lift kits are backed by Factory Protection Plus for peace of mind wherever you choose to explore.
Quick Specs:

• Front Lift Height 4.5 Inch
• Rear Lift Height 2.5 Inch
• Material Steel
• Front Lift Method Coil Springs
• Rear Lift Method Coil Spring Spacers
• Lift Type Suspension
• Wheel Size 20 x 9
• Back Spacing 5.5 Inch
• Max Tire Size 3 Inch x 12.5
• Wheel Size 2 20 x 9
• Back Spacing 2 4.5 Inch
• Max Tire Size 2 3 Inch x 12.5
• Is Adjustable No
• Finish Powdercoat
• Cutting Required No
• Welding Required No

Features:

• High strength progressive rate front coil springs for a great ride on any terrain
• Front and Rear HD track bar relocation brackets to correctly position both axles under the truck
• Forged drop pitman arm to corect steering angles
• HD transmission crossmember and t-case indexing ring to correct front driveline angles
• Nitro series gas or FOX adventure series IFP gas shocks to improved ride and offroad performance
• Allows clearance for up to 37 tires

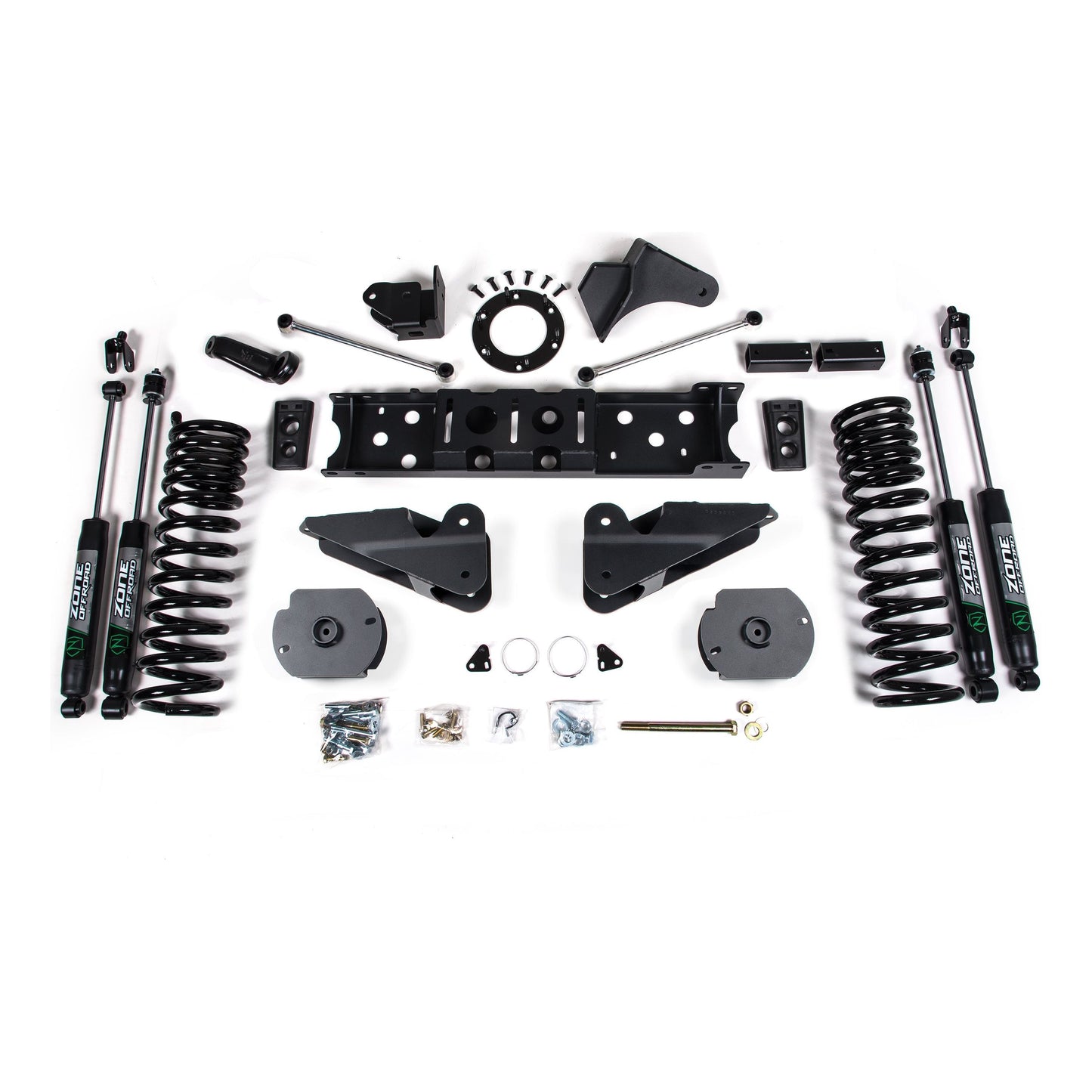

Kit Components:

• ZON7700 Nitro- 25.20 x 15.20 x 2-3/8 S50/EB2 2 711745595484
• ZON7753 Nitro- 26.2 x 15.7 x 2-3/8 Special/EB1 2 711745594081
• ZOND1258 2014-2024 Ram 2500 2.5 Inch Rear Spacer Box Kit 1 711745594272
• ZOND1404 19-24 RAM 2500 / 19-24 RAM 3500 4.5 Inch Front Box Kit 1 711745605992
• ZOND3401 2014-2024 Ram 2500 / 2013-2024 Ram 3500 Coils 4.5 Inch Diesel 5.5 Inch Gas 2 711745598560
• ZOND5612 19-24 RAM 2500 / 19-24 RAM 3500 T-Case Index 6 Bolt Diesel 1 711745594418
