Zone Offroad 4.5 Inch Lift Kit W/ Radius Arm Diesel I ZOND55N

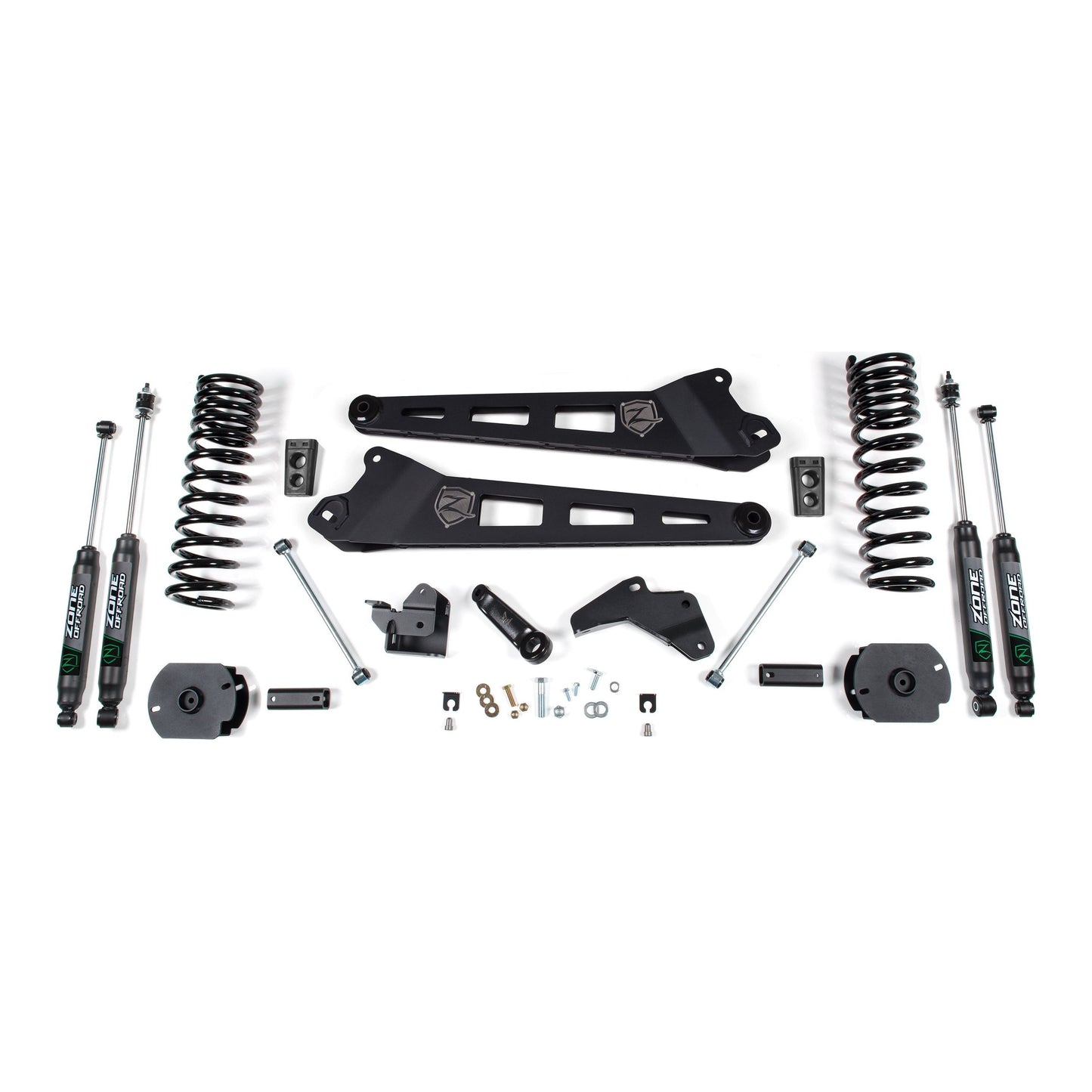

Take your RAM 2500 to new heights with this 4.5" lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arms to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.
Features & Benefits
Progressive rate front coil springs improve ride quality and off-road performance.
HD radius arm to correct caster while maximizing ground clearance.
Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle.
Extended bump stops, sway bar relocation and brake line relocation to maintain factory-like operating angles.
Rear coil spacers, bump stop extensions, track bar bracket and sway bar links to level the stance and correct suspension geometry
Recommended Tires & Wheels
(Trimming may be required)
35 x 12.5 with
17 x 9 and
4.5 in. Backspace
37 x 12.5 with
18 x 9 and
5.75 in. Backspace
37 x 12.5 with
20 x 9 and
5.75 in. Backspace Although very rare, front drive-line vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit.
Optional t-case indexing ring kit recommended to reduce front driveline angle.
Does NOT work for models with factory rear airbag suspension.
Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
Factory wheels fit when paired with factory / original equipment tire size.
