ZONE OFFROAD | 20-21 F-350 Dually 4 Inch Lift Kit Fox Adventure Shocks Gas Zone Offroad | ZONF72F

Zone Offroad now offers a suspension lifts for the 2020 Ford F30 Super Duty 4WD DRW trucks. These kits are based on the kits for the 2005-2021 Ford Super Duty, updated specifically for use on the DRW models.

These new 4 Inch lift kits are available for gas and diesel applications, as well as offered in standard (radius arm drop bracket) as well as replacement HD radius arm configurations to allow clearance for up to 37 Inch tires.

As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.
Quick Specs:

• Front Lift Height 4 Inch
• Rear Lift Height 3 Inch
• Material Steel
• Front Lift Method Coil Springs
• Rear Lift Method Block Kit
• Lift Type Suspension
• Wheel Size 22 x 9
• Back Spacing 4.5 Inch
• Max Tire Size 37 x 12.5
• Wheel Size 2 20 x 9
• Back Spacing 2 4.5 Inch
• Max Tire Size 2 37 x 12.5
• Is Adjustable No
• Finish Powdercoat
• Cutting Required No
• Welding Required No

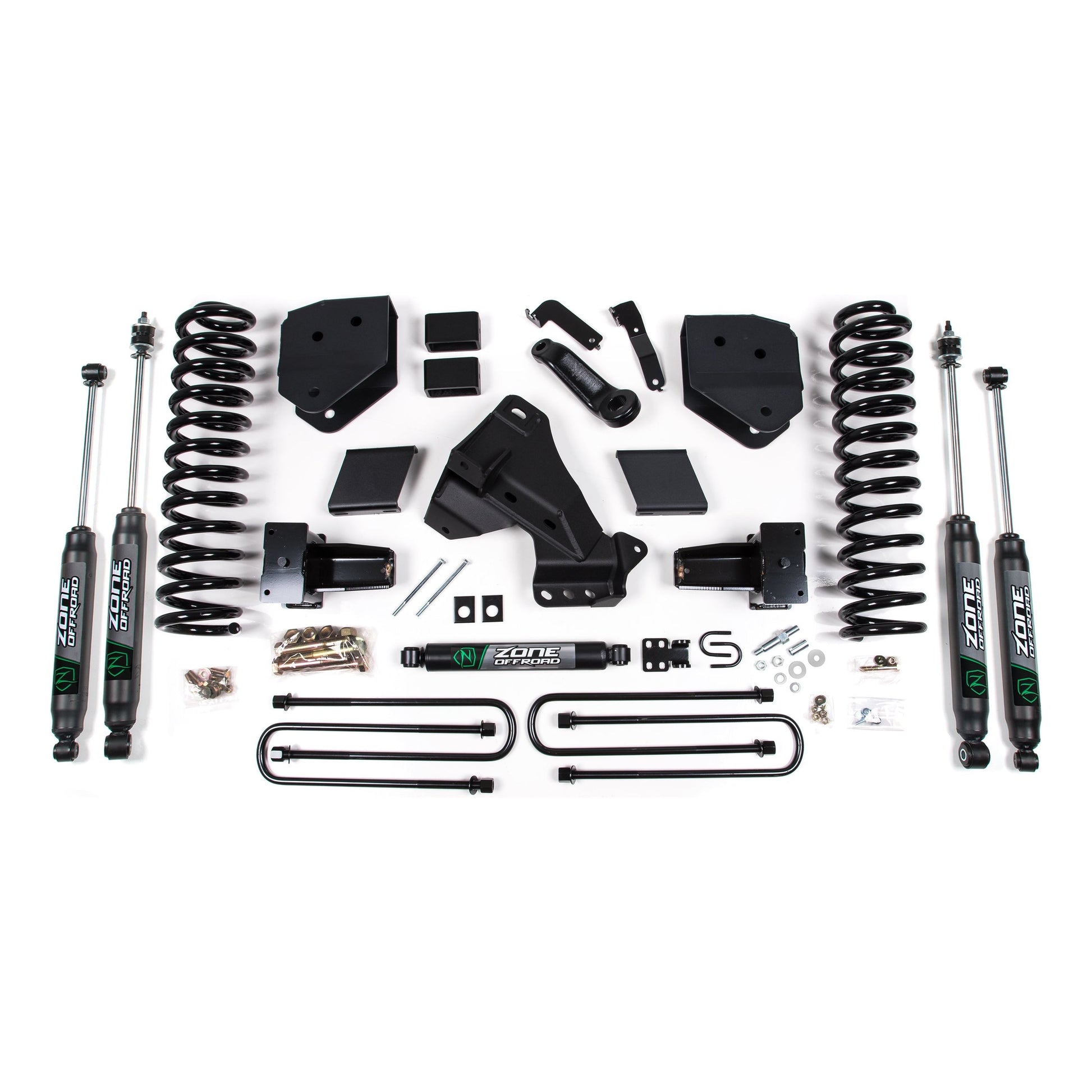

In The Box:

• Coil Springs
• Rear Lift Block & U-Bolt Kit

Features:

• Heavy duty fabricated steel replacement radius arms that correct caster alignment while maximizing ground clearance
• Forged pitman arm to correct steering angles
• Heavy duty fabricated track bar relocation bracket to re-center front axle
• Full length Diesel/ Gas specific coil springs for a smooth ride
• Rear lift is specific to dually trucks using U-bolts that are sized correctly for length as well as block height to level the truck and a bump stop extension on the frame.

Kit Components:

• FOX98450700 Fox Adv Shock 25.64 x 16.05 x 2-S50/EB1 2 810156368189
• FOX98450718 Fox Adv Shock 33.85 x 20.76 x 2-EB1/EB1 2 810156368455
• ZON7302 2017-2024 F250 Single Stabilizer Zone 1 711745595194
• ZONF1307 20-21 Super Duty 3 Inch Rear Box Kit 1 711745602380
• ZONF1410 2017-2022 Super Duty 4 Inch Front Box Kit 1 711745599185
• ZONF1423 2005-2024 Ford F250/350 4 Inch Front Coil Gas (One) 2 711745599277
