Zone Offroad 4 Inch Lift Kit I ZONF47N

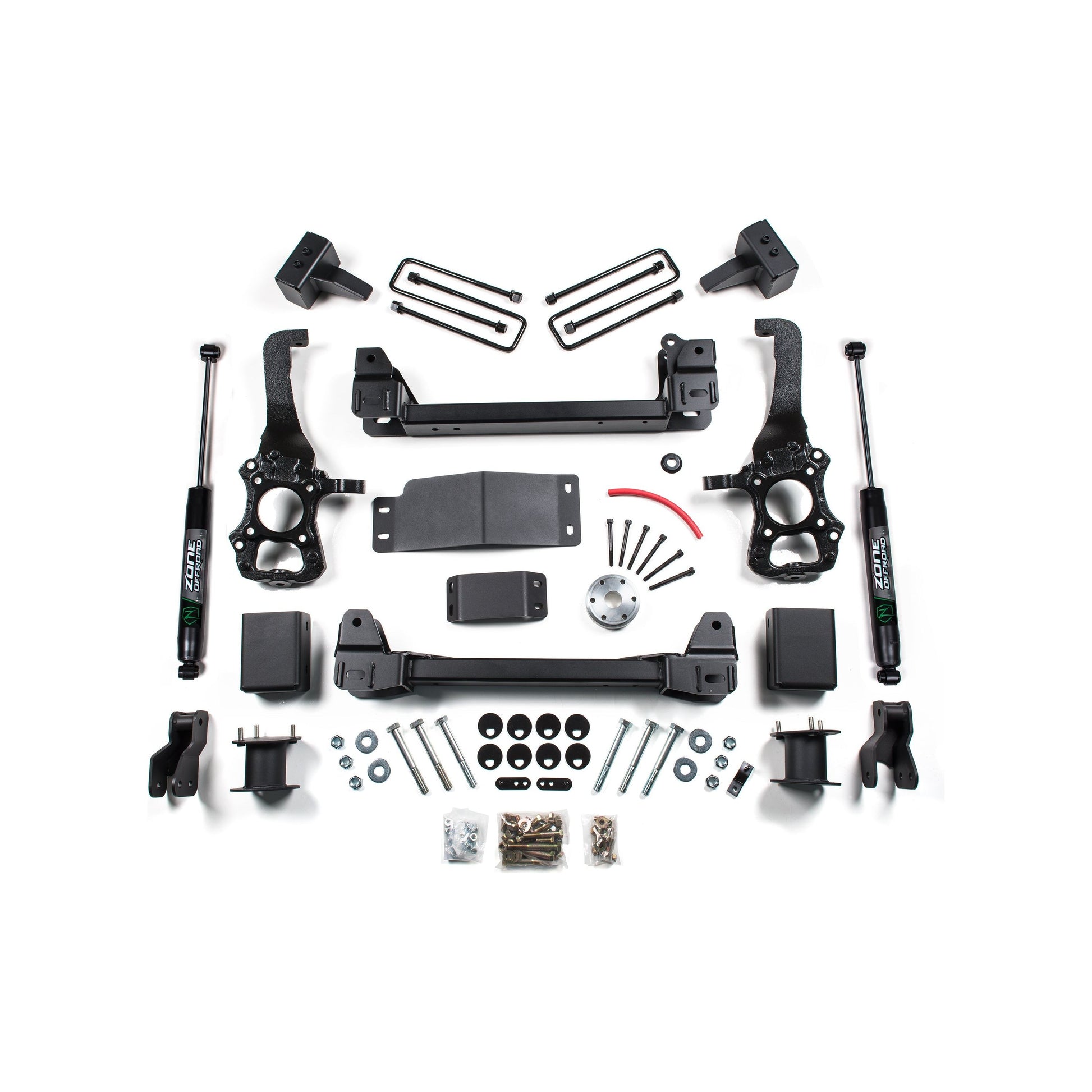

Take your F150 to new heights with this 4" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.
Features & Benefits
High strength crossmembers to correct lower control arm positioning.
Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility.
Top mounted strut spacers to provide lift and install easily.
Differential skid plate for improved offroad protection.
Rear lift blocks and u-bolts to lift and level the stance.
Sway bar, brake line and bump stop relocation brackets to correct operating angles
Recommended Tires & Wheels
(Trimming may be required)
35 x 12.5 with
18 x 9 and
5.5 in. Backspace
35 x 12.5 with
20 x 9 and
5.5 in. Backspace
35 x 12.5 with
22 x 9 and
5.5 in. Backspace Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
Wheel and Tire:
18" wheels should be test fit to ensure proper tie rod end clearance. Wheel profiles can vary between manufacturers.
Depending on wheel selection, minor trimming may be required to fit tire.
Stock 17"/18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60R20 tire.
