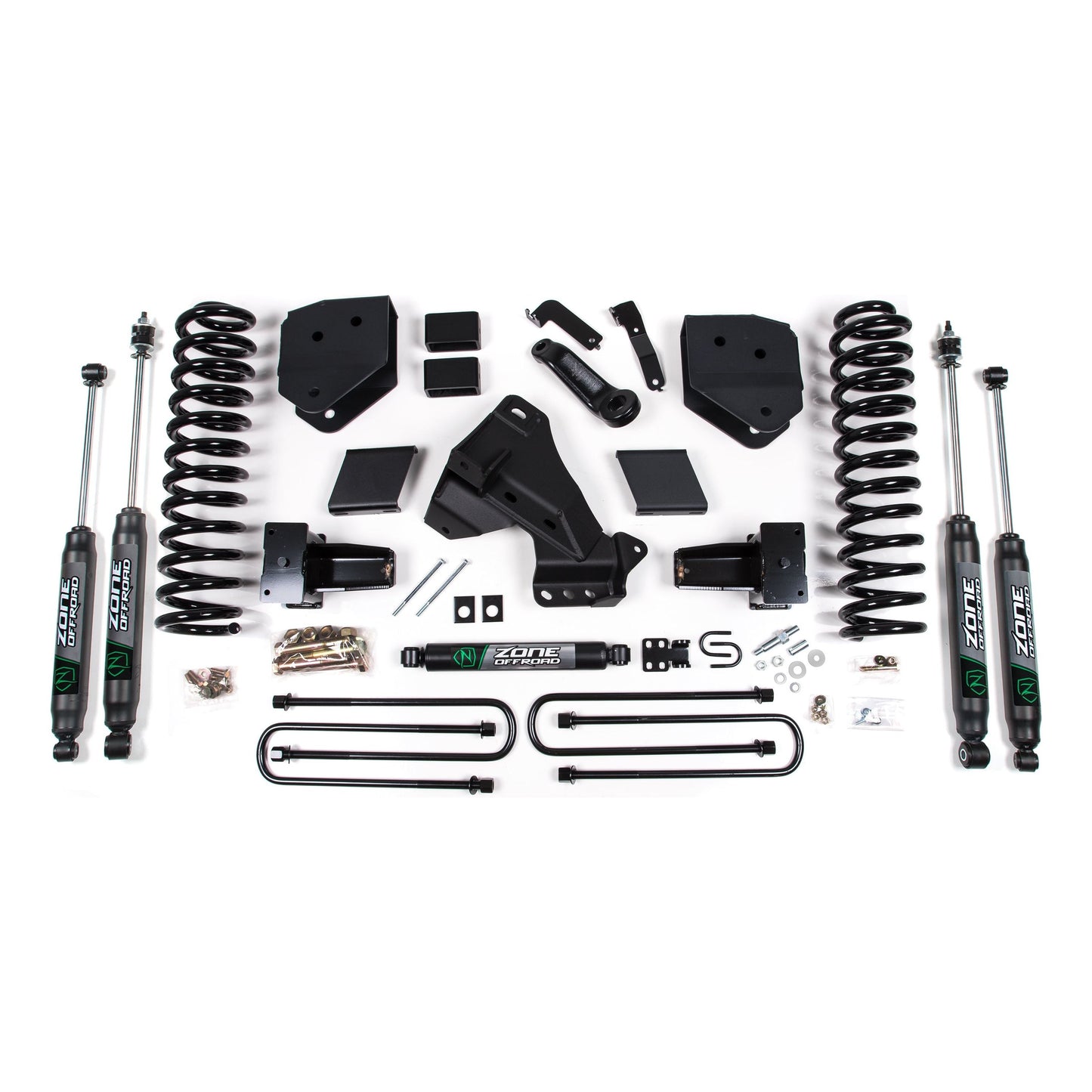

Zone Offroad 5 Inch Lift Kit Diesel I ZONF58F

Zone Offroad now offers a suspension lifts for the 2020-2022 Ford F250/F350 Super Duty 4WD trucks. These new 5" lift kits are available for gas and diesel applications, as well as offered in standard (radius arm drop bracket) as well as replacement HD radius arm configurations to allow clearance for up to 37" tires. As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.
Features & Benefits
Heavy duty fabricated steel replacement radius arms that correct caster alignment while maximizing ground clearance.
Forged pitman arm to correct steering angles.
Heavy duty fabricated track bar relocation bracket to re-center front axle
Full length Diesel/ Gas specific coil springs for a smooth ride
Recommended Tires & Wheels
(Trimming may be required)
37 x 12.5 with
20 x 9 and
4.5 in. Backspace
37 x 12.5 with
18 x 9 and
4.5 in. Backspace Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models
Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, Zone recommends to have this performed prior to installing the lift.
Wheel and Tire:
37x12.50 tires may require minor trimming.
Factory wheels fit when paired with factory / original equipment tire size.
