Zone Offroad 5 Inch Lift Kit I ZONC43F

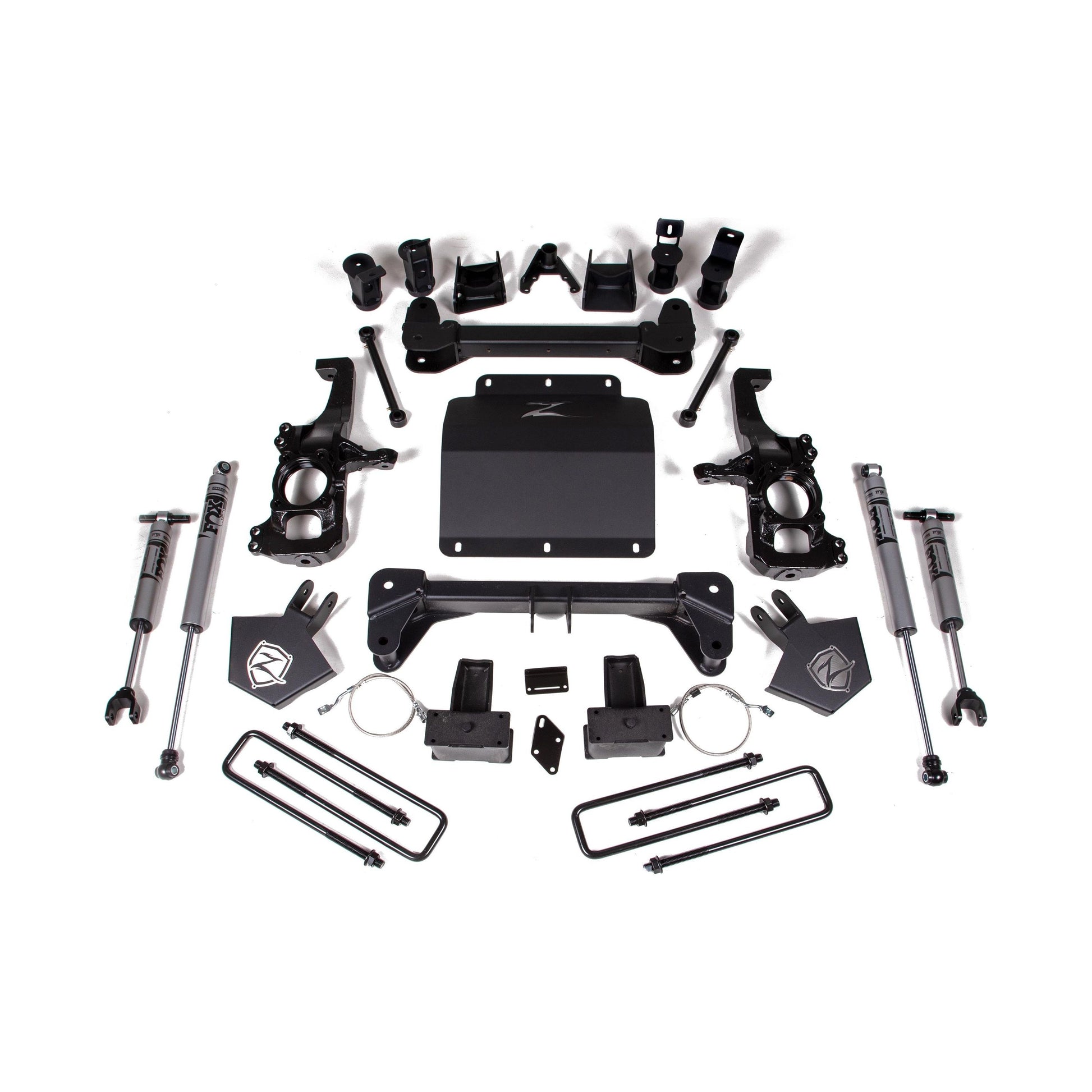

Take your GM 2500/3500HD to new heights with this 5" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to differential relocation and and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.
Features & Benefits
Maintains ride quality and handling characteristics
Improves ground clearance while correcting suspension-steering-driveline geometry
High strength 1/4" thick steel crossmembers and differential skid plates
CNC machined ductile iron steering knuckles to maintain ESC System compatibility
Zone Offroad branded front skidplate and torsion bar relocation brackets
Allows clearance for up to 37" tires to be installed
Recommended Tires & Wheels
(Trimming may be required)
37 x 12.5 with
20 x 9 and
5.5 in. Backspace
35 x 12.5 with
20 x 10 and
5.5 in. Backspace
35 x 12.5 with
17 x 9 and
4.625 in. Backspace Compatible with gas and diesel models as well as standard and AT4 equipped models.
Frame bracket modifications required for installation.
Stock 17-18" wheels cannot be reinstalled, stock 20" wheels can be reinstalled.
Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual cardan style driveshaft.
