Zone Offroad 5 Inch Lift Kit I ZONT5N

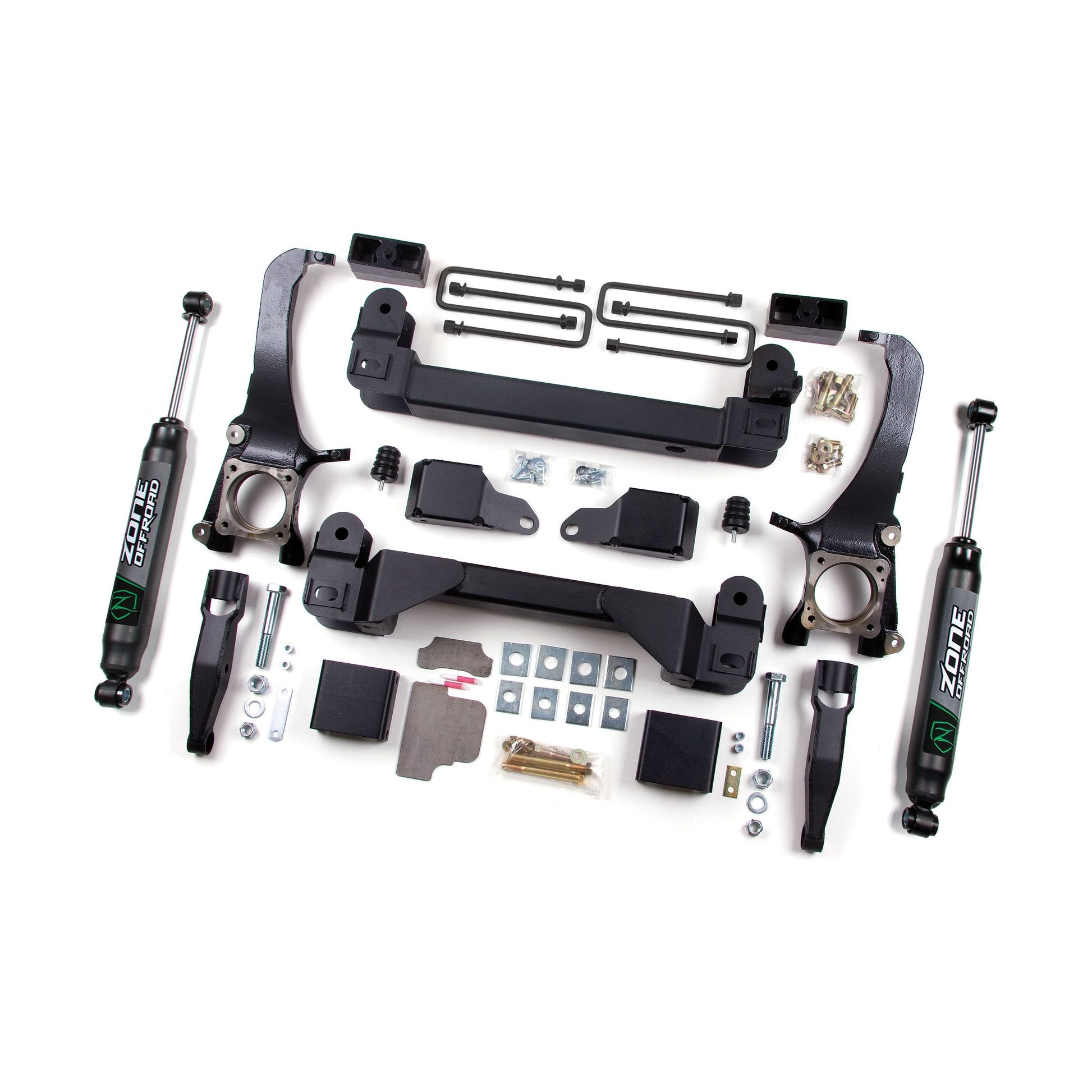

Take your Tundra to new heights with this 5" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to lower strut extensions and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.
Features & Benefits
High strength crossmembers to correct lower control arm positioning.
Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility.
Lower strut extensions to provide lift and install easily.
Weld-in chassis plates add strength and rigidity.
Rear lift blocks and u-bolts to lift and level the stance.
Sway bar, brake line, and bump stop relocation brackets to correct operating angles
Recommended Tires & Wheels
(Trimming may be required)
35 x 12.5 with
18 x 9 and
5.5 in. Backspace
35 x 12.5 with
20 x 9 and
6.25 in. Backspace
35 x 12.5 with
22 x 9 and
6.25 in. Backspace Will NOT work on TRD Pro Models equipped with Bilstein or Fox Piggyback Struts.
Will work with Bilstein (yellow) factory front struts on 2014-2016 models.
RWD models may require rear driveline modification.
Stock 18" wheels can not be installed. factory 20" wheels with more than 6.25" backspacing can not be installed.
Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration. Models equipped with
6 piston calipers will require clearance machining on the caliper near the bolt
holes on the mounting surface.
