Zone Offroad 6.5 Inch Lift Kit Diesel I ZOND109N

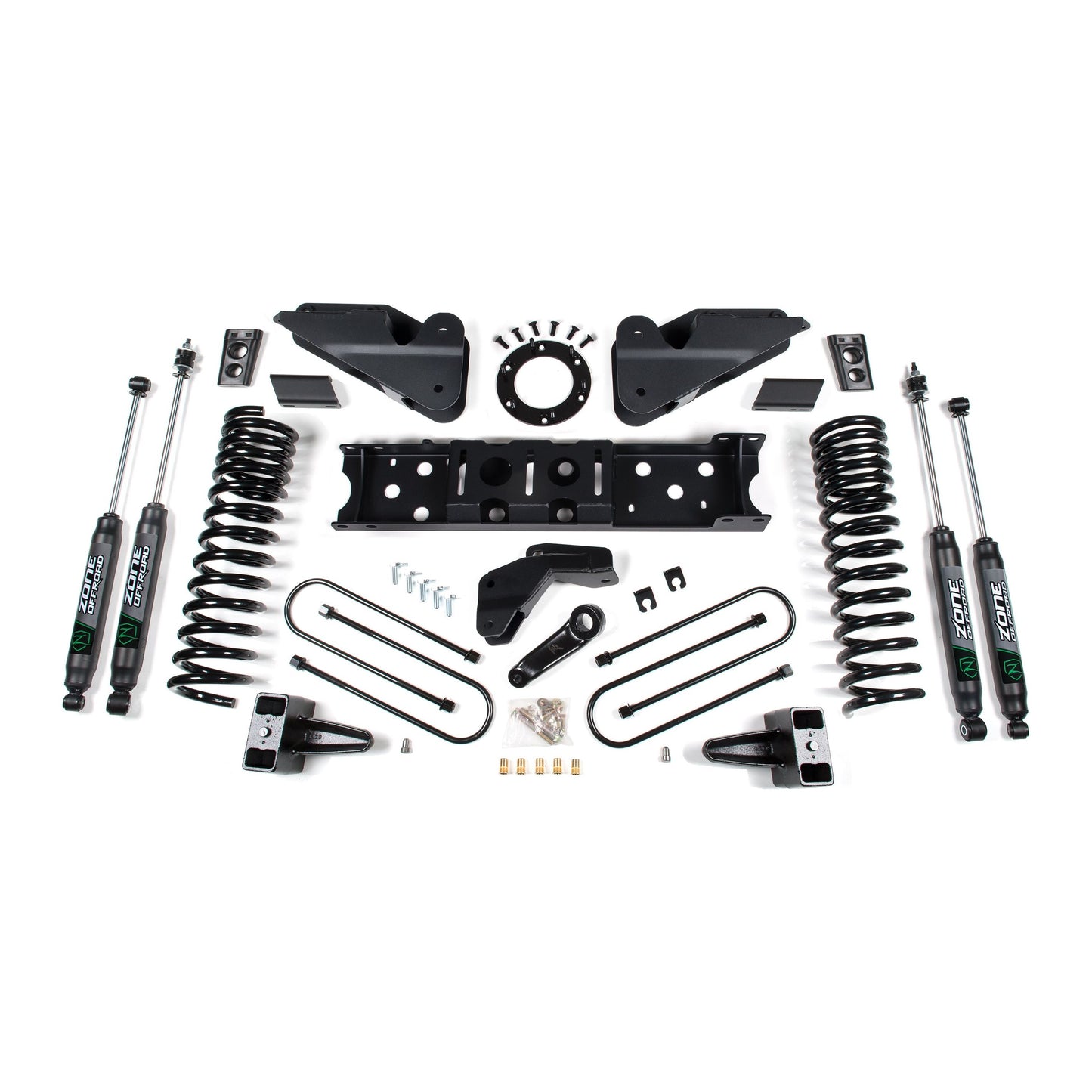

Take your RAM 3500 to new heights with this 6.5" standard lift kit from Zone Offroad. Kits include everything needed from full length coil springs and radius arm drop brackets to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.
Features & Benefits
High strength progressive rate front coil springs for a great ride on any terrain.
Heavy duty 1/4" steel, laser cut, internally gusseted radius arms improve strength, offer more ground clearance and correct caster.
HD track bar relocation bracket to correctly position front axle under the truck.
Forged drop pitman arm to correct steering angles.
Front sway bar correction to maintain handling performance.
HD transmission crossmember and t-case indexing ring to correct front drive-line angles.
Nitro series gas or FOX adventure series IFP gas shocks to improved ride and off-road performance.
Allows clearance for up to 37" tires
Recommended Tires & Wheels
(Trimming may be required)
37 x 12.5 with
20 x 9 and
5.5 in. Backspace
37 x 12.5 with
18 x 9 and
5.5 in. Backspace Does not fit Dually Models with 8-bolt transmissions (Aisin).
T-case indexing ring available for 6-bolt or 8-bolt trucks, verify factory configuration prior to ordering.
Will not fit rear air-ride equipped models.
Kit designed for diesel models only.
Does not fit Chassis Cabs.
8-bolt, Mega Cab may require a aftermarket driveshaft and no indexing.
Does not fit Vehicles with a Manual Shift Transfer Case.
Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included with kit)
