ZONE OFFROAD | 6.5 Inch Lift Kit I ZONC1F

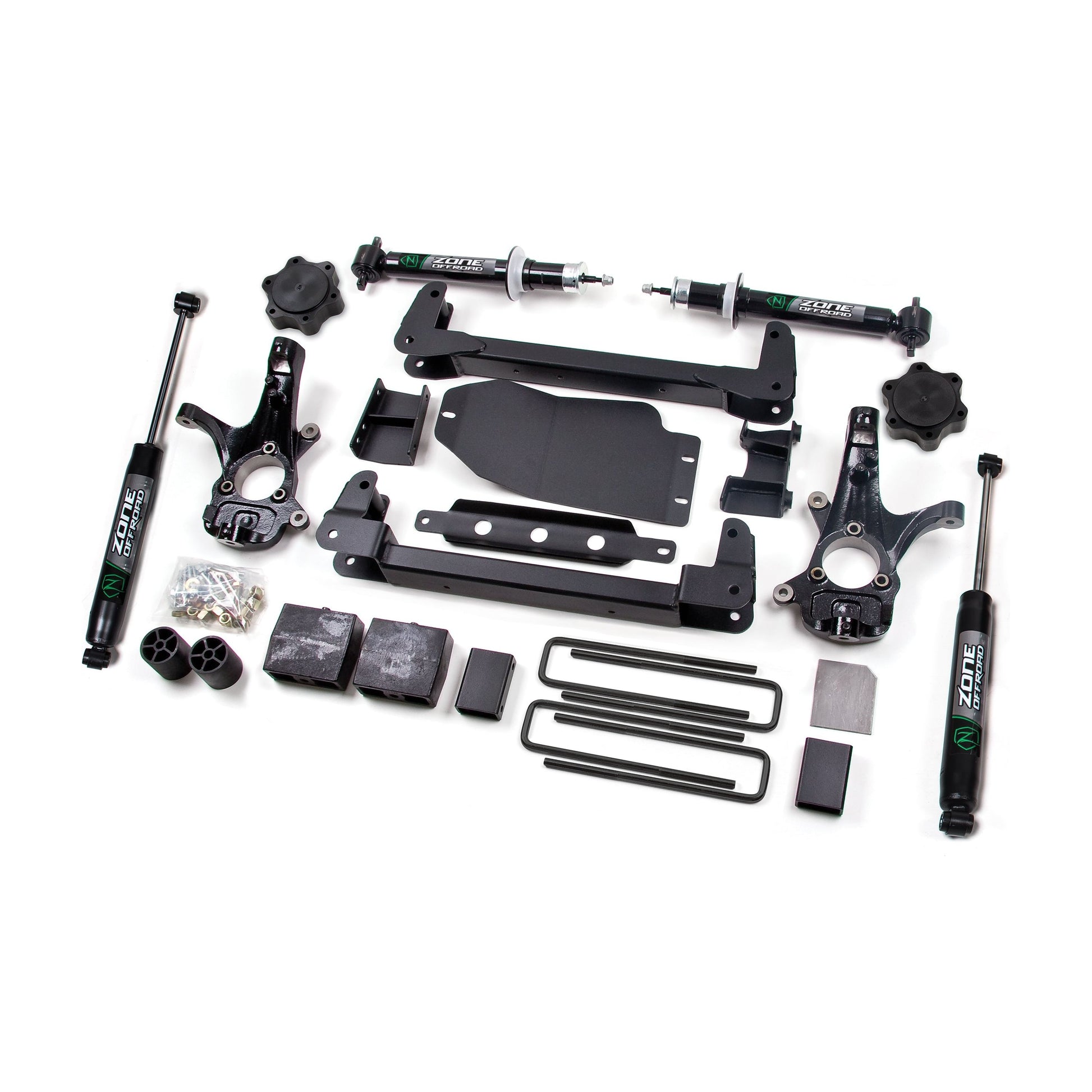

Take your Silverado/Sierra 1500 to new heights with this 6.5" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to nitro gas struts and and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.
Features & Benefits
Corrects suspension, steering, and drive-line geometry for great on-road handling and improved off-road performance.
Heavy-duty differential skid slate improves offroad protection.
High pressure, extended length, replacement front struts improve performance on and off-road.
High-strength, 1/4" steel construction crossmembers correct lower control arm geometry.
High-strength, CNC machined, replacement Steering Knuckles improve strength while correcting steering angles.
Multi-point differential relocation brackets secure front differential for improved CV operating angles.
Proudly made in the USA.
Rear lift block and longer u-bolts for easy installation and level stance.
Weld-in frame support plate for additional strength.
Recommended Tires & Wheels
(Trimming may be required)
35 x 12.5 with
17 x 9 and
5 in. Backspace
35 x 12.5 with
18 x 9 and
5 in. Backspace
35 x 12.5 with
20 x 9 and
5.75 in. Backspace Crew Cab? Add-A-Leaf: Add an Add-A-Leaf to your kit to offset the increased weight of the cab for a more level stance.
Fitment: All wheel drive models require front driveline modification. See installation instructions for more information.
Fitment: Will NOT fit 2007 "Classic" models. If you have a 2007 Classic, see kits for comparable 1999-06 models.
Fitment: Will NOT fit 2009-11 Two-Mode Hybrid models with Electronic Power Steering (EPS).
Wheels / Tires: Factory 20" wheels CAN be reinstalled; Factory 17" and 18" wheels CANNOT be reinstalled. Check wheel clearance before and after mounting tires by turning the steering wheel through its full range of motion to make sure you're free from body or suspension interference.
Wheels / Tires: To reduce trimming required 20" wheels with 5.5-5.75" backspacing recommended. See installation instructions for more information.
