Zone Offroad 6.5 Inch Lift Kit I ZONC62F

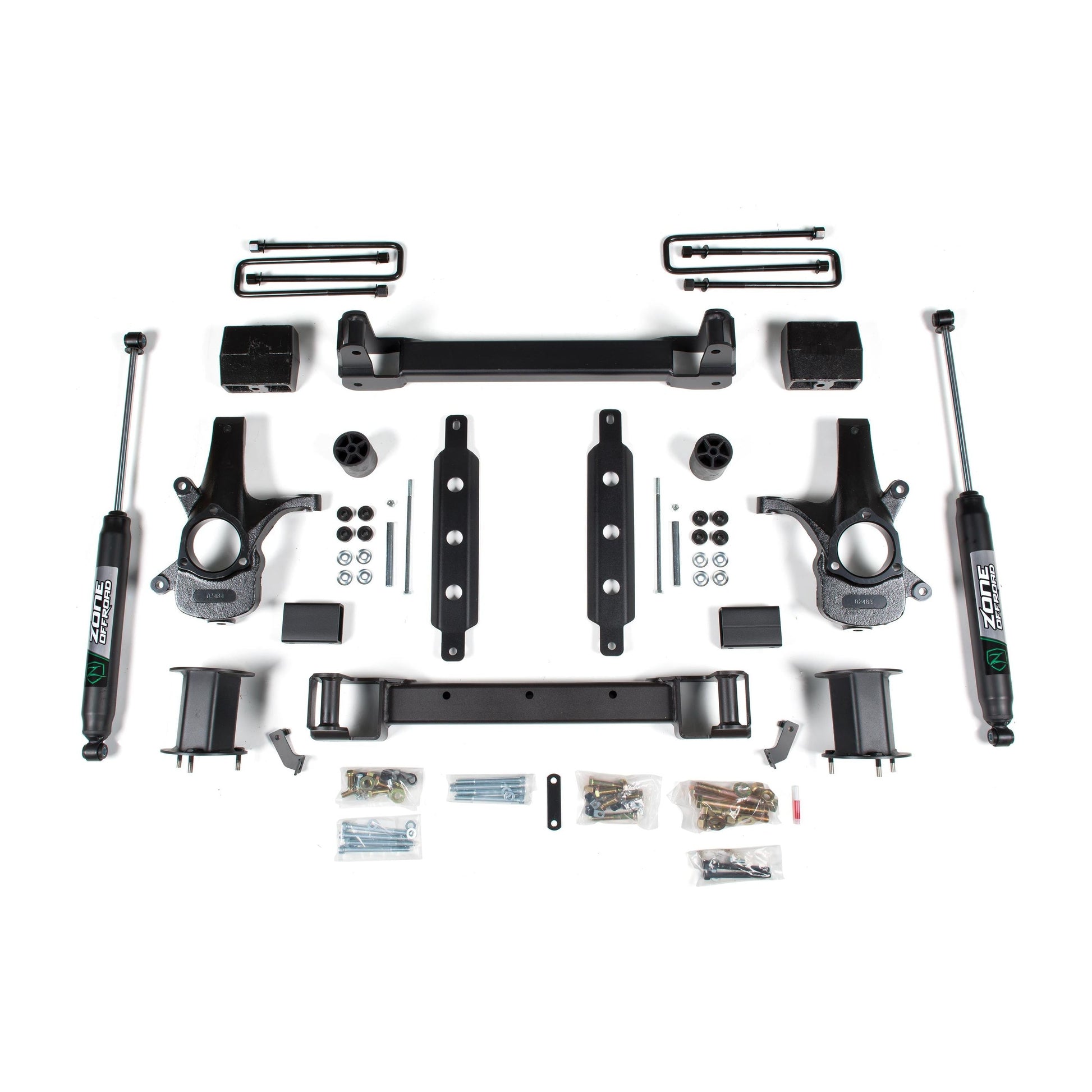

Take your Silverado/Sierra 1500 to new heights with this 6.5" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for 35" tires.
Features & Benefits
High strength crossmembers to correct lower control arm positioning.
Ductile iron steering knuckles to correct steering geometry and maintain FMVSS No126 (ESC System) compatibility.
Top mounted strut spacers to provide lift and install easily.
Rear 5" lift block and u-bolt kit to lift and level the stance.
Sway bar, bracket line and bump stop relocation brackets to correct operating angles.
Allows clearance for up to 35" tires
Recommended Tires & Wheels
(Trimming may be required)
35 x 12.5 with
17 x 9 and
5 in. Backspace
35 x 12.5 with
18 x 9 and
5.25 in. Backspace
35 x 12.5 with
20 x 9 and
5.75 in. Backspace Check Control Arms: GM produced cast steel, stamped steel and aluminum control arms between 2014 and 2017. Use the reference image to help identify your stock control arms; cast steel will be replaced with cast steel, stamped steel and aluminum control arms will be replaced with aluminum.
Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference.
Maximum Rear Shock length is 29-3/4" due to driveshaft to cross member interference.
Requires 1/4" wheel spacer to accommodate stock 20" rims.
To reduce trimming required for tire fitment, a 20" wheel w/5.75" backspacing is recommended.
