Zone Offroad 6 Inch Lift Kit Diesel I ZONF110F

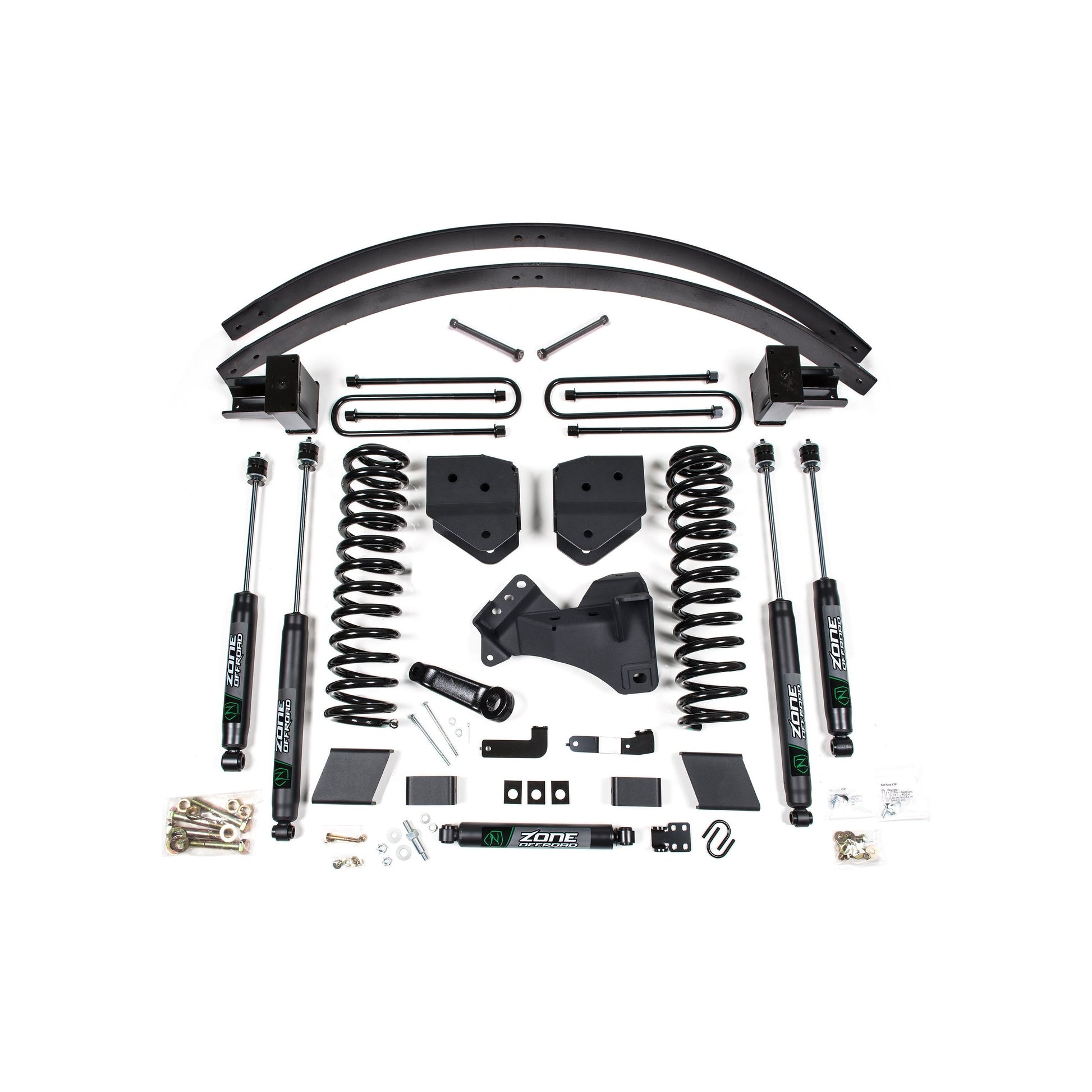

Take your Super Duty to new heights with this 6" lift kit from Zone Offroad. Kits include everything needed to reliably lift your truck and the capability to run up to 37" tires, including coil springs, radius arm drop brackets, steering correction and rear lift blocks or optional add-a-leafs to get the stance and performance you want. Upgrade your stock shocks with Nitro Series Gas Shocks, or Fox 2.0 Adventure Series for even greater performance and control. As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty. Get the look, performance, and capability your truck deserves!
Features & Benefits
High strength front coil springs improve ride quality.
Radius arm drop brackets to correct caster and maintain suspension geometry.
Forged pitman arm and track bar relocation bracket to correct steering angles and re-center front axle.
Bump stop relocation, sway bar relocation and brake line relocation to maintain factory-like operating angles.
Replacement 3" rear lift block for a leveled stance, or optional upgrade to rear add-a-leaf for 4" net lift and improved performance
Recommended Tires & Wheels
(Trimming may be required)
37 x 12.5 with
20 x 9 and
4.5 in. Backspace
37 x 12.5 with
18 x 9 and
4.5 in. Backspace
37 x 12.5 with
17 x 9 and
4.5 in. Backspace Check your rear springs to determine if your truck is equipped with standard, 2-leaf main, or heavy payload 3-leaf main spring pack with an overload spring.
Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration
Wheel and Tire:
37X12.50 tires may require minor trimming.
Factory wheels fit when paired with factory / original equipment tire size.
