ZONE OFFROAD | 11-14 Ford F-250/F-350 Super Duty 6 Inch Lift Kit Diesel Without Overload With Nitro Shocks Zone Offroad | ZONF30N

Lift your Super Duty into a class of it's own with this 6 Inch radius arm lift kit for an attention grabbing, smooth riding, complete, and affordable system.

You'll clear huge 37 Inch tires for the look and performance you want from your Diesel 4WD 2011 - 2016 Ford F-250 / F-350.
Quick Specs:

• Front Lift Height 6 Inch
• Rear Lift Height 4 Inch
• Front Lift Method Coil Springs & Replacement Radius Arms
• Rear Lift Method Dual Add-A-Leafs & Block Kit
• Lift Type Lift Kit
• Wheel Size 17 x 9
• Back Spacing 4.5 Inch
• Max Tire Size 37x 12.5
• Wheel Size 2 18 x 9
• Back Spacing 2 4.5 Inch
• Max Tire Size 2 3 Inch x 12.5
• Wheel Size 3 20 x 9
• Back Spacing 3 4.5 Inch
• Max Tire Size 3 37 x 12.5
• Finish Powdercoat
• Cutting Required No
• Accommodates Factory Wheels See Notes
• Welding Required No

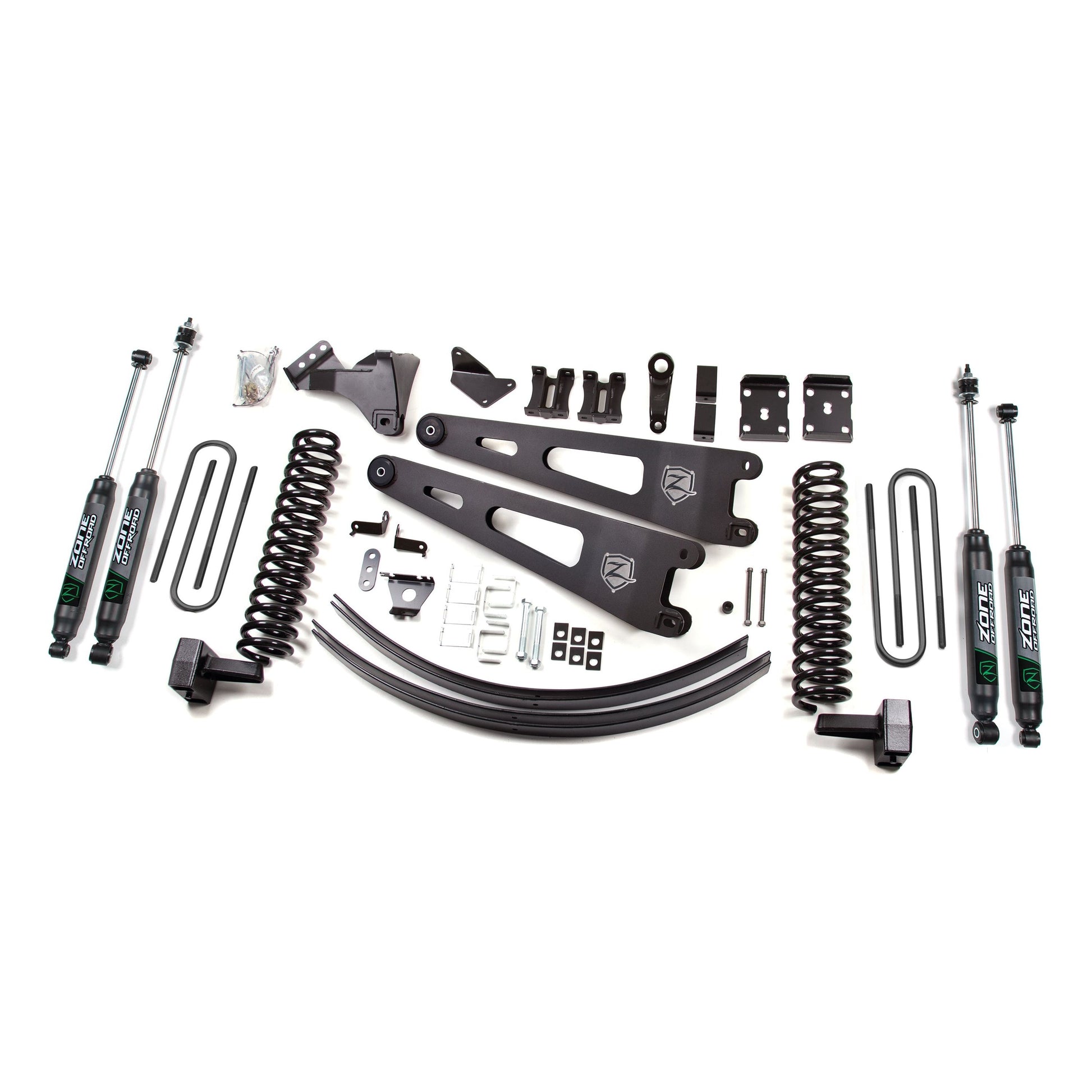

In The Box:

• Add-A-Leaf's
• All Necessary Mounting / Installation Hardware
• Coil Springs
• Dropped Pitman Arm
• Rear Lift Block & U-Bolt Kit
• Sway Bar Relocation Brackets
• Radius Arms

Features:

• Brake line relocation brackets allow re-use of factory brake lines.
• Bump stop extensions properly limit up-travel, protecting your vehicle.
• Dual rear Add-A-Leaf Kit provides additional lift and improves weight capacity.
• Heavy-duty radius arms improve strength, allow additional tire clearance and increase ground clearance over radius arm drop kits.
• High-strength, 1/4 Inch steel radius arms correct caster, improve tire clearance, and maximize ground clearance.
• Rear lift block and longer U-bolts for easy installation and level stance.
• Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics.
• Sway bar relocation brackets maintain operating angle for reduced body roll.

Kit Components:

• ZON7750 Nitro- 27.40 x 16.20 x 2-3/8 S50/EB2 2 711745595675
• ZON7763 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595798
• ZONF1309 08-12 Ford F250/350 4 Inch Rear 1 711745599116
• ZONF1601 2005-2022 Ford Super Duty Radius Arm (One) 2 711745599291
• ZONF1604 11-12 Super Duty 6 Inch Box Kit 1 711745599321
• ZONF1613 2005-2024 Super Duty 6 Inch Diesel Coil(one) 2 711745599369
• ZONF6209 08-12 Super Duty Dual Add-a-leaf 1 711745599956
