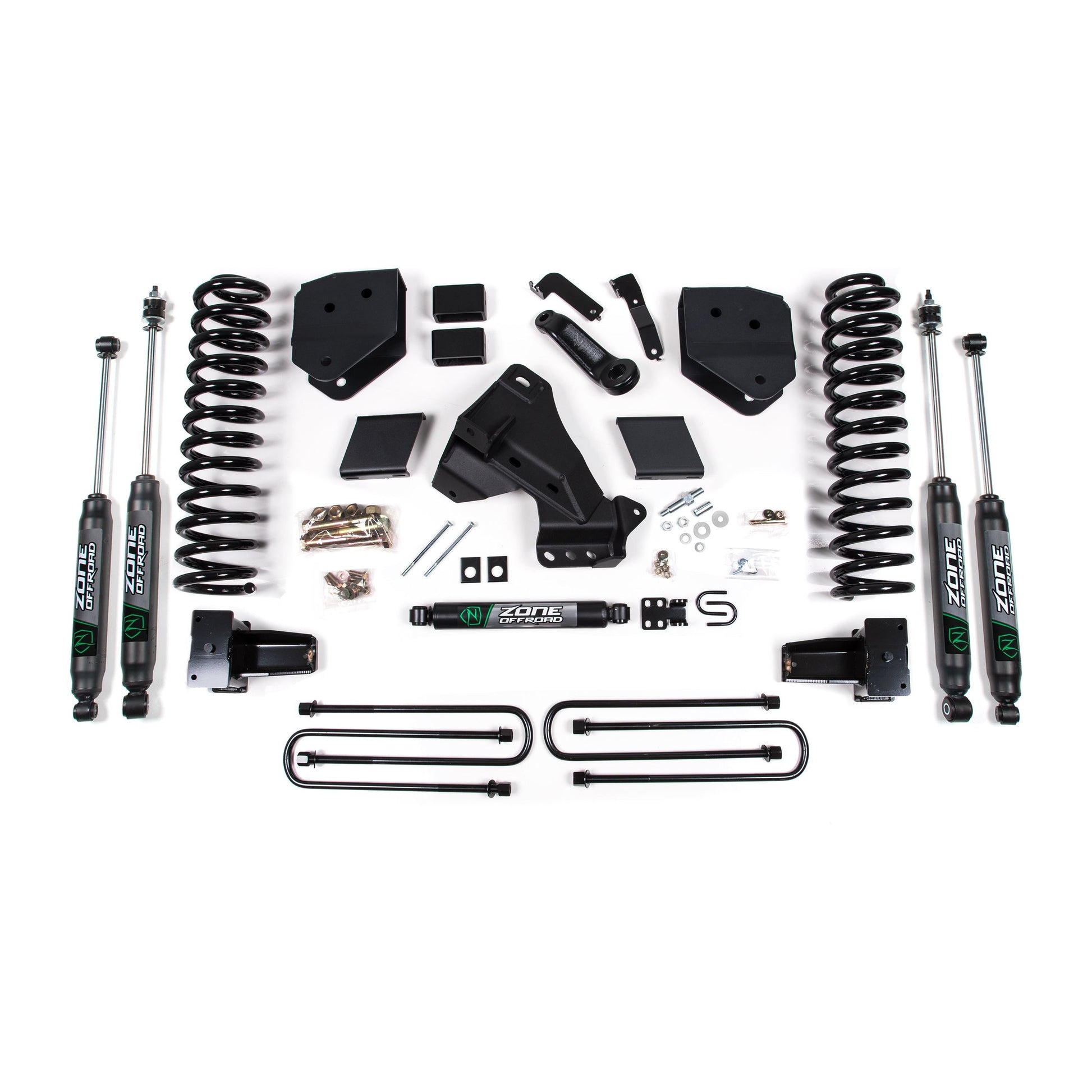

Zone Offroad 7 Inch Lift Kit Gas I ZONF63F

Step up your game with these 7" standard lift kits from Zone Offroad. These kits use full length coil springs, high strength radius arm relocation brackets, steering and sway bar correction along with rear lift to level the stance and optional shocks. Kits include a 5year/60,000mile drivetrain warranty.
Features & Benefits
Corrects suspension geometry with high strength radius arm drop brackets.
Forged pitman arm to correct steering angles.
Heavy duty fabricated track bar relocation bracket to re-center front axle .
Full length Diesel/ Gas specific coil springs for a smooth ride
Recommended Tires & Wheels
(Trimming may be required)
37 x 12.5 with
20 x 9 and
4.5 in. Backspace
37 x 12.5 with
20 x 10 and
4.5 in. Backspace GAS MODELS ONLY
Front exhaust modification may be required to clear front drive shaft.
Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, Zone recommends to have this performed prior to installing the lift.
Wheels and Tires
37x12.50 tires may require minor trimming.
Factory wheels fit when paired with factory / original equipment tire size.
