Zone Offroad 8 Inch Lift Kit Gas I ZONF57F

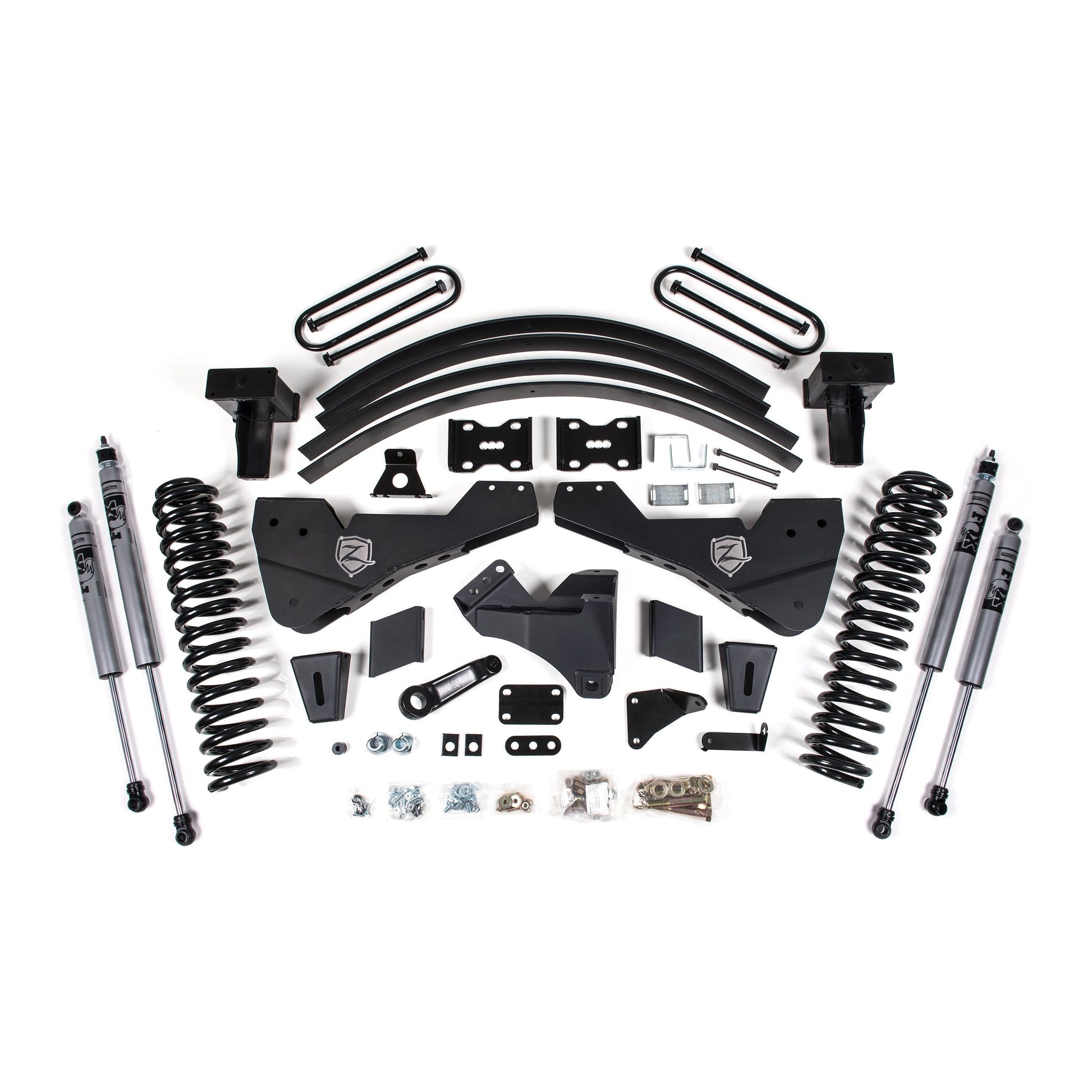

Take your Super Duty to new heights with this 8" lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arm relocation brackets to steering correction and rear block + add-a-leaf kit. Get the look, performance, and capability your truck deserves with clearance for 38" tires.
Features & Benefits
Full length 8" lift coil springs
Forged pitman arms and HD track bar bracket to correct steering angles
High strength radius arm drop brackets to corect suspension geometry
Sway bar and brake line relocation brackets to correct operating angles
Rear lift block + dual add-a-leaf kit to lift and level the rear stance
Allows clearance for up to 38" tires
Recommended Tires & Wheels
(Trimming may be required)
38 x 12.5 with
17 x 9 and
4.5 in. Backspace
38 x 12.5 with
20 x 9 and
4.5 in. Backspace
38 x 12.5 with
22 x 9.5 and
4.5 in. Backspace Exhaust modification may be required to clear front driveshaft (gas only)
Although extremely rare, front driveshaft vibration may occur
If equipped with 2-piece rear driveshaft, carrier bearing drop will be required (ZONF5401)
Front driveshaft u-joints may max out at full droop. If so, a new front driveshaft will be required.
If equipped with rear sway bar, extended sway bar links will be required. (ZONF5009)
