ZONE OFFROAD | Shock Mount Relocation Kit I ZONJ5859

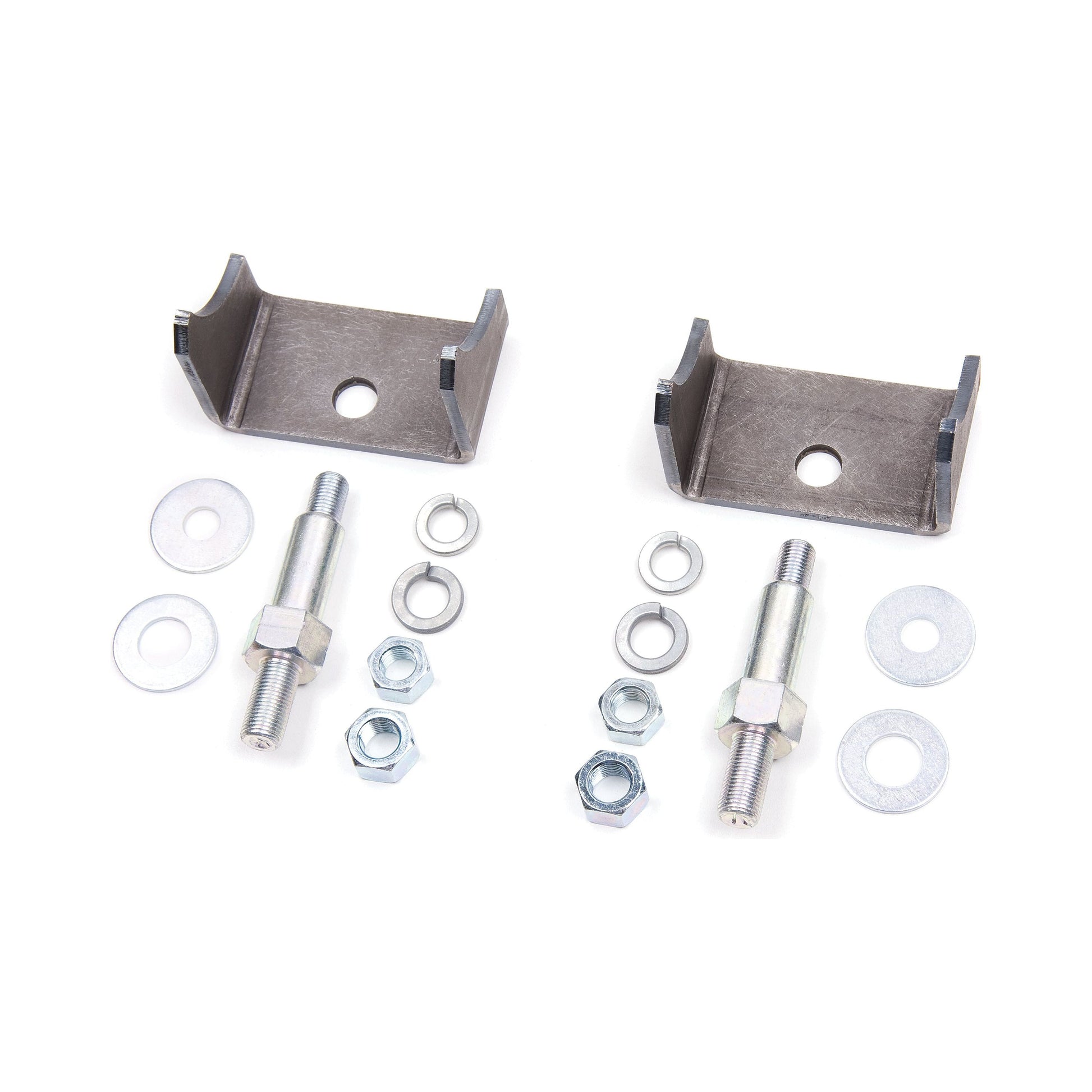

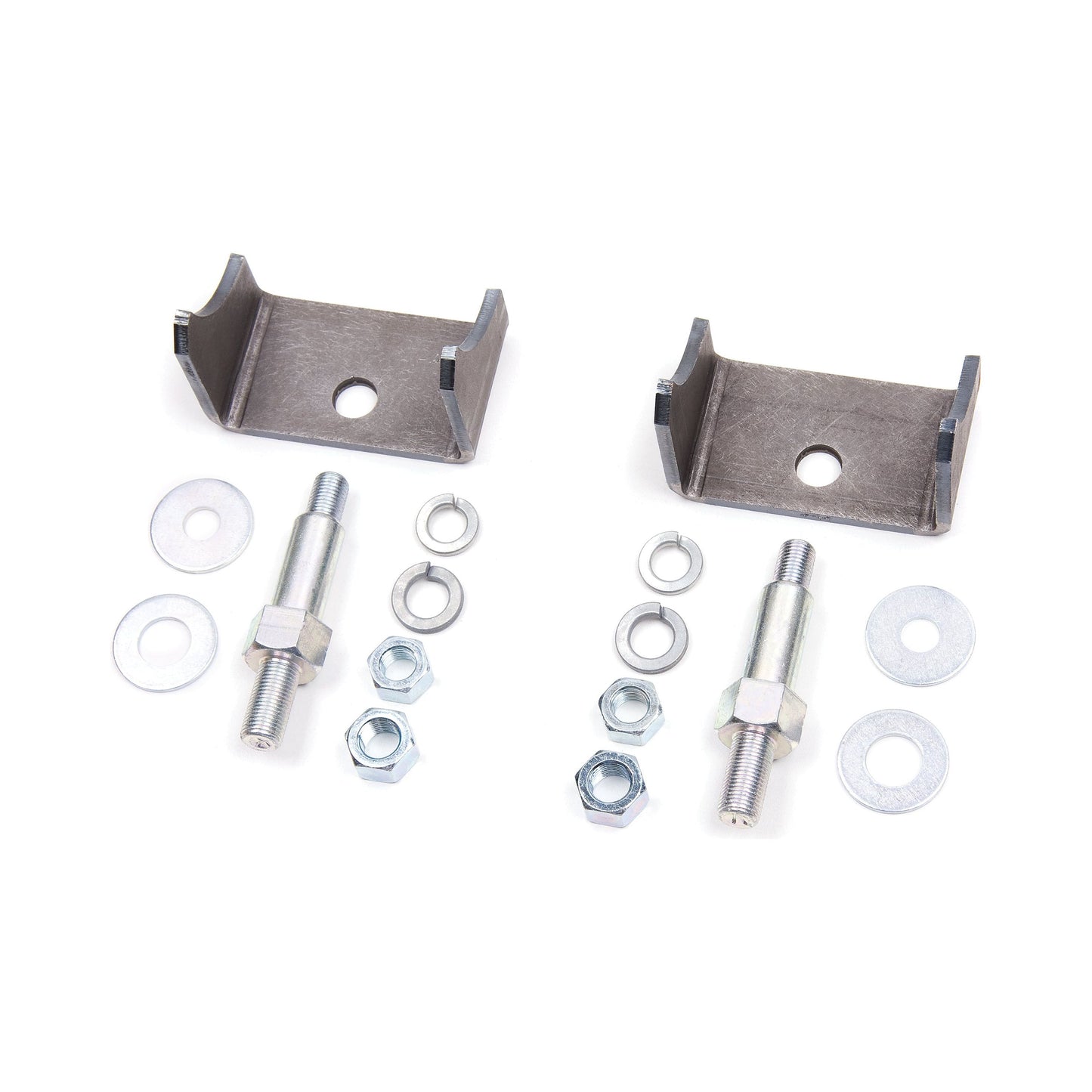

Tired of your rear lower shock mounts scraping across rocks when you're out wheeling? These high-clearance mounts raise the lower shock mount a full 3" so that they are even with the bottom of the axle tube, drastically increasing ground clearance. This weld-on bracket is made from 3/16" steel and includes a new shock stud that will mate with any standard 5/8" (inner diameter) shock bushing. Although designed for the XJ, this weld on mount can be used for any custom application with a tube diameter ranging from 2-1/2" to 3-1/2".
Features & Benefits
3/16" steel weld on shock mount
Can be used on almost any custom application
Combine this with the Zone J5022 bar pin eliminator to create the ultimate rear XJ shock set-up
Designed to mount to any standard 5/8" ID Shock bushing
Relocates the rear XJ lower shock mount up 3" to be even with the axle tube Required shocks (specs) may change after installation due to the mounting position changing. 2001, Jeep, Cherokee, All, All, All, All,
1994, Jeep, Cherokee, All, All, All, All,
1993, Jeep, Cherokee, All, All, All, All,
1989, Jeep, Cherokee, All, All, All, All,
1987, Jeep, Cherokee, All, All, All, All,
1985, Jeep, Cherokee, All, All, All, All,
1996, Jeep, Cherokee, All, All, All, All,
1991, Jeep, Cherokee, All, All, All, All,
1986, Jeep, Cherokee, All, All, All, All,
1988, Jeep, Cherokee, All, All, All, All,
1995, Jeep, Cherokee, All, All, All, All,
1984, Jeep, Cherokee, All, All, All, All,
1992, Jeep, Cherokee, All, All, All, All,
1990, Jeep, Cherokee, All, All, All, All,
1999, Jeep, Cherokee, All, All, All, All,
2000, Jeep, Cherokee, All, All, All, All,
1997, Jeep, Cherokee, All, All, All, All,
1998, Jeep, Cherokee, All, All, All, All,
